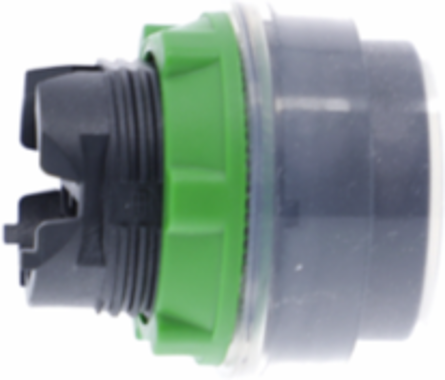

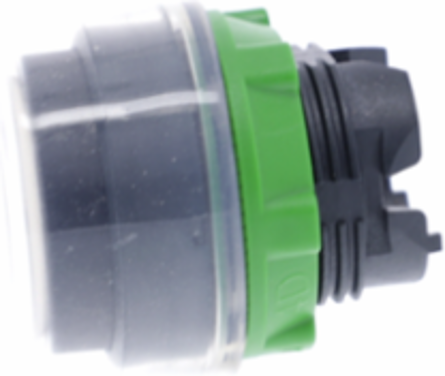

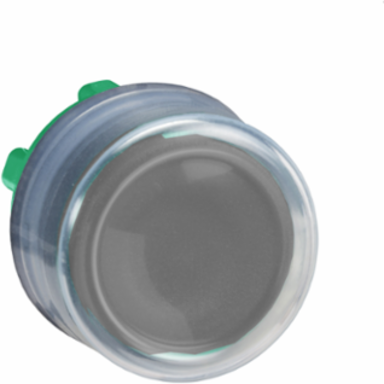

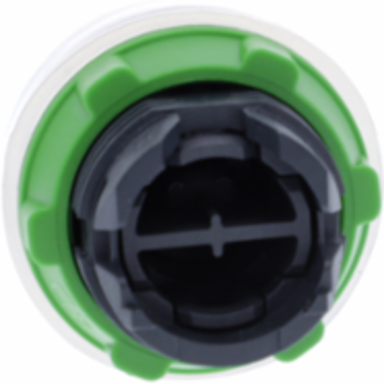

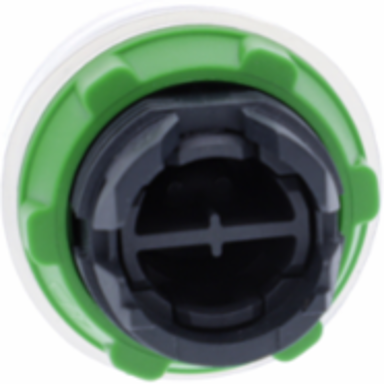

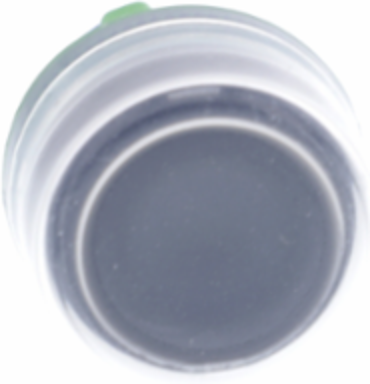

Schneider Electric ZB5AP2 Harmony XB5 22mm Push Button Head - Black, Plastic, Spring Return, IP66
- MPN: ZB5AP2
- PPN: SCH-ZB5AP2
CAD
$36.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB5, clear silicone booted black button head operates with a spring return mechanism. This silicone booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States
Physical Attributes

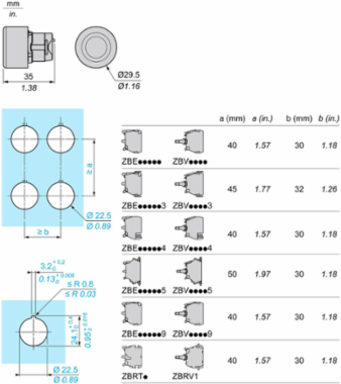

- Cad Overall Depth
- 35 mm
- Cad Overall Width
- 30 mm
Cad Overall Height30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 1, no
- Operator Profile 1 Cap Operator Or Lens Color
- black
- Carbon Footprint Of The Distribution Phase [A4]
- 0.004942172722261331, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0037316896179218607, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 6 %
- Compatibility Code
- ZB5
- Gcr Bridge
- ZB5APCUST01
- Head Type
- standard
- Marking
- unmarked
- Mounting Diameter
- 22 mm
- Operator Profile
- black projecting, unmarked
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Station Name
- XALD 1...5 cut-outsXALK 2...5 cut-outs
- Total Lifecycle Carbon Footprint
- 0.1 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; APAC
- Cap/Operator Or Lens Colour
- black
- Package Weight(Lbs)
- 21.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeC1 9 single front mountingC2 9 single and double front mountingC11 3 single front mountingC15 1 single front mounting, SF1 3 single front mountingSR1 3 single rear mounting
Certificate AgencyCSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.02558262857344531
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.10490129814227978
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2303008EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content29 %
Bezel Materialdark grey plastic
Device Short NameZB5
Group Of Productsilicone boot push
Main Grouppush-button
Mechanical Durability10000000 cycles
Operator Additional Informationclear boot
Overvoltage Categoryclass II conforming to IEC 60536
Product Or Component Typehead for non-illuminated push-button
Range Of ProductHarmony XB5
ReturnabilityYes
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Sustainable PackagingYes
Type Of Operatorspring return
Pep CodeENVPEP2303008_V2
Pep Verification Date2024-03-24
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; APAC
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; APAC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.13915778905590828
- Environmental Disclosure
- ENVPEP2303008_V2
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- not compatible with legend holder
- Pep Code
- ENVPEP2303008_V2
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level29 %
Mercury FreeYes
Circularity ProfileENVEOLI2303008EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-03-24
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- head for non-illuminated push-button
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
