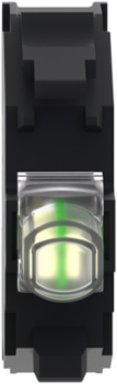

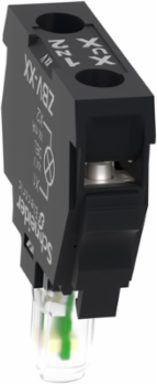

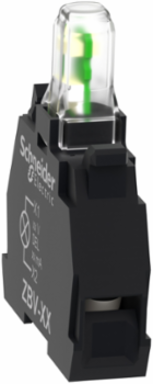

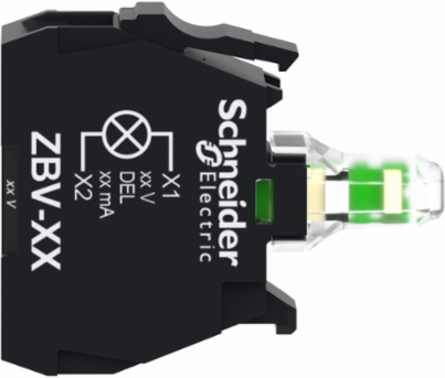

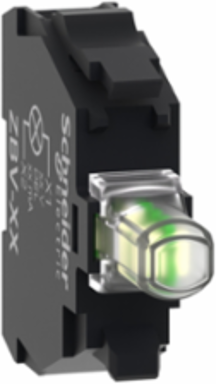

Schneider Electric ZBVG1 Harmony XB4/XB5 Light Block with Universal LED, 110-120V AC

  • MPN: ZBVG1
  • PPN: SCH-ZBVG1
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $51.94

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony ZB, XB5 white Light block operates with a universal LED. It is supplied with 110V to 120V AC and uses screw clamp terminals. It has a plastic body. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It features high endurance LED lighting for less replacement and process downtimes. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

    Features

    • The ZBVG1 is a 120V AC white light block from the Harmony XB4 (metal) and XB5 (plastic) series. It is the internal electrical component that provides the illumination for pilot lights and illuminated pushbuttons in industrial control panels.
    • Unlike traditional incandescent bulbs that are prone to failure from vibration and heat, the ZBVG1 features a Protected LED. This solid-state technology offers an exceptionally long service life (typically 100,000 hours), lower power consumption, and high resistance to the mechanical shocks common in manufacturing environments.
    • This specific block is rated for 110V to 120V AC (50/60 Hz). It is the standard choice for North American control circuits, allowing you to power signaling devices directly from the control transformer without the need for additional voltage converters or power supplies.

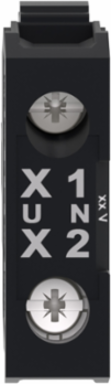

    • The ZBVG1 utilizes screw clamp terminals. These robust connections ensure a gas-tight, vibration-proof electrical bond for wires up to 14 AWG. The terminals are designed with "captive" screws, meaning they won't fall out and get lost in the bottom of your enclosure during installation or maintenance.

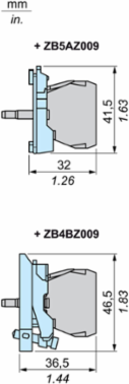

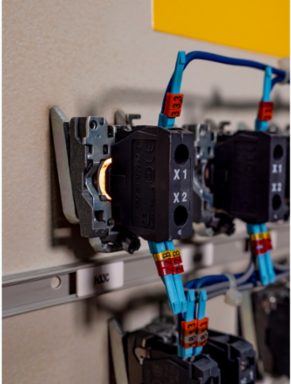

    • This block is designed to "clip" onto the back of a ZB4BZ009 (metal) or ZB5AZ009 (plastic) mounting collar. This modular approach allows you to swap out the light source or change the lens color without needing to replace the entire pushbutton assembly, significantly simplifying inventory and repairs.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance, United States

    Physical Attributes

    Light Source Colorwhite, white

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Electrical Composition CodeM1, M2, M3, M4, M5, M6, M10, MF1, P1, P2, PF1
    Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Light Source Colorwhite, white
    [Us] Rated Supply VoltageAC 50/60 Hz, 110...120 V
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0194995185
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.1590032103
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Percentage Of Recycled Plastic Content30 %
    Compatibility CodeZBV
    Device Short NameZBV
    Light Block Supplydirect
    Mounting Of Blockfront mounting
    Product Or Component Typelight block
    Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
    Resistance To Fast Transients2 kV IEC 61000-4-4
    Sale Per Indivisible Quantity5
    Software Versionv5.9.4
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint19 kg CO2 eq.
    Connections Terminals 8 Connections Terminalsscrew clamp terminals
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionLight blocks that attach to the back of a push button and serve as an indicator light. When the push button is pressed, the light blocks turn on and illuminate through the button head with a 30% utilisation rate and power consumption is 4.56W, and the product has a life of 10 years while adhering to standards IEC 61000-4-5 and IEC 60947-5-5.
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh44.1504
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; AUS
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; AUS
    Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
    Package Weight(Lbs)9.0 g
    Warranty (In Months)18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Range Of ProductHarmony XB4, Harmony XB5
    Signalling Typesteady, steady
    Certificate AgencyUL Listed, CSA
    Carbon Footprint Of The Distribution Phase [A4]0.0059363563, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0136069583, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]19 kg CO2 eq., 19.1833157895
    Local Publishable Date2026-01-12
    Stocking FlagY
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2302007EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Average Percentage Of Recycled Metal Content10 %
    Bulb Baseintegral LED
    Current Consumption19 mA
    Electromagnetic Emissionclass B IEC 55011
    Light Sourceuniversal LED
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTH
    Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
    ReturnabilityYes
    Service Life100000 h at rated voltage and 25 °C
    Supply Voltage110...120 V
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP2302007EN
    Pep Verification Date2023-04-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; AUS
    Recyclability Potential In %15
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8531809051

    Environment Attributes Main
