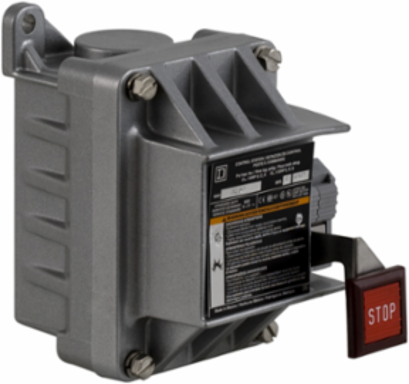

Schneider Electric 9001BR103 Harmony Control Station 600V AC 5A, NEMA 7/9, Die-Cast Aluminum

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has one momentary push button with a mushroom button operator. It has a STOP push button with a normally closed contact. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. This NEMA 7/9 enclosure for hazardous locations is surface mounted. Control station is also rated for Class l, Division l and ll, Groups B, C, or D; Class ll, Division l and ll, Groups E, F, or G. Control station is UL Listed and CSA certified. "It can be surface mounted, suitable for indoor installation." "The 9001BW control stations are fully assembled with two product specific operators with single speed or two speed options."
