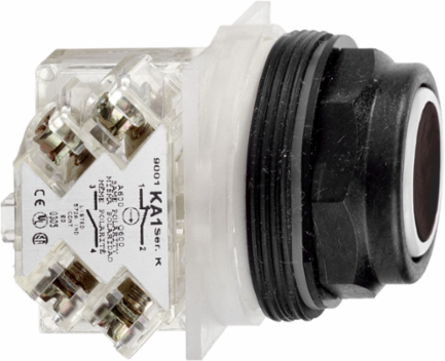

Schneider Electric 9001SKR1BH5 Harmony 9001SK 30mm Black Push Button, Spring Return, 1NO, IP66
- MPN: 9001SKR1BH5
- UPC: 785901041979
- PPN: SCH-9001SKR1BH5
CAD
$77.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This black push button is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel and is delivered with black flush operator. It uses screw-clamp terminals and has 1 x NO contact. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs. It weighs 86g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Features
- This industrial push button is designed for a standard 30mm (1.18 in) panel cutout, making it a direct drop-in replacement or upgrade for heavy-duty control panels. The modular Harmony 9001SK structure ensures seamless integration into your current layout without the need for frustrating re-drilling or panel modifications.
- Engineered with an ultra-rugged plastic bezel and dual insulation, this unit boasts comprehensive NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 ratings alongside an IP66 ingress protection certification. It provides total immunity to corrosion, chemical exposure, high-pressure water jets, and cutting oils, eliminating the risk of premature contact failure in punishing petrochem, water treatment, or automotive manufacturing environments.
- Equipped with a high-conductivity 1 Normally Open (1 NO) silver alloy contact block, this switch safely manages demanding control loops with a rating of 10A at up to 600V AC. It utilizes angled, finger-safe screw clamp terminals that prevent wiring interference during close-quarters panel installations, providing clean signal telemetry and enhanced technician safety.
- Featuring a black flush, unmarked operator profile with a protective integrated plastic guard, this momentary spring-return button minimizes the threat of accidental trigger mid-cycle. The physical design ensures high-tactile responsiveness with an exceptional mechanical durability rated for 5,000,000 cycles, promising decades of maintenance-free operation.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- plastic guard
- Type Of Operator
- spring return
- Operator Profile
- black flush, unmarked
Range Of ProductHarmony 9001SK
Product Or Component Typepush-button
Device Short Name9001SK
Complementary
- Short-Circuit Protection
- 10 A cartridge fuse EN/IEC 60947-5-1
- Positive Opening
- without
- Operator Profile
- flush
- Rated Breaking Capacity
- 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- Cap/Operator Or Lens Colour
- black
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV EN/IEC 60947-1
- Device Presentation
- complete product
- Contacts Type And Composition
- 1 NO
- Bezel Material
- plastic
- Connections - Terminals
- screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- Mechanical Durability
- 5000000 cycles
- Operating Position
- any position
- Shape Of Screw Head
- cross slotted
Contacts Materialsilver alloy contacts
Mounting Diameter30 mm
[Ith] Conventional Free Air Thermal Current10 A
Shape Of Signaling Unit Headoctagonal
Net Weight0.086 kg
Size30 mm
[Icm] Rated Short-Circuit Making Capacity12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
[Ui] Rated Insulation Voltage250 V 3)EN/IEC 60947-1
[Ie] Rated Operational Current3 A 240 V, AC-15, A600-Q600 || 0.55 A 125 V, DC-13, A600-Q600
Contact Operationstandard
Type Of Operatorspring return
Tightening Torque0.8-0.8 N.m EN/IEC 60947-1
Environment
- Product Certifications
- UL 508 || NEMA
- Standards
- EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C 4520 || EN/IEC 60947-5-1 || UL 508 || JIS C 852 || EN/IEC 60947-1
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529
Nema Degree Of ProtectionNEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- EnvPEP120817EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
