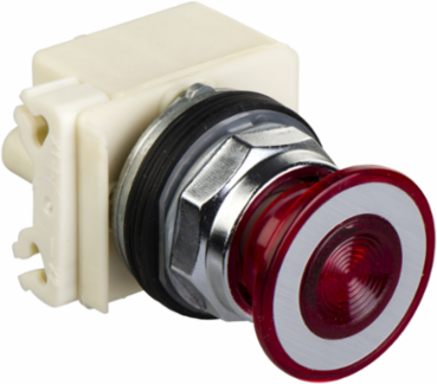

Schneider Electric 9001KR9P38LRR Illuminated push-button head, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push-pull, LED red, 120V
Schneider Electric 9001KR9P38LRR Illuminated push-button head, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push-pull, LED red, 120V
- MPN: 9001KR9P38LRR
- UPC: 785901589594
- PPN: SCH-9001KR9P38LRR
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$374.42/ EA
Description
This product is part of the Harmony 9001K range, an offer of Ø 30mm metal pushbuttons, switches and pilot lights." "This pushbutton operator has an unmarked round mushroom head." "This pushbutton provides 2 position stay-put actuation, which makes switch remains in the position last selected by the operator." "It has BA 9s bulb base and incandescent light. The light block is rated to 120V AC/DC supply voltage." "It offers mechanical durability of about 5 million cycles. It is an IP66 and NEMA 1/2/3/3R/4/6/12/13 rated product." "This type K pushbutton is fitted with chromium plated metal bezel and mushroom head is available in red. Its dimension is 41mm (diameter). It weighs 0.186kg." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "This product is certified by NEMA and UL 508. It meets EN/IEC 60947-5-4, JIS C 852, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1 and JIS C 852 standards." "It is installed into a Ø 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
Specifications
Environment
- Product Certifications
- UL 508 || NEMA
- Ambient Air Temperature For Storage
- -40-70 °C
- Standards
- UL 508 || JIS C 852 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 4520 || EN/IEC 60947-5-4
- Electrical Shock Protection Class
- class II IEC 60536
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection
- IP66 IEC 60529
Ambient Air Temperature For Operation-25-70 °C
Overvoltage Categoryclass II IEC 60536
Nema Degree Of ProtectionNEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
Shock Resistance50 gn IEC 60068-2-27
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- [Us] Rated Supply Voltage
- 120 V
- Contacts Type And Composition
- without contact block
- Operator Additional Information
- screw-on plastic
- Light Source Colour
- red
- Light Source
- LED
- Compatibility Code
- 9001K
- Operator Profile
- mushroom Ø 41 mm
- Operating Position
- any position
- Cap/Operator Or Lens Colour
- red
- Size
- 30 mm
[Us] Rated Supply Voltage120 V AC/DC
Light Sourceincandescent
Bezel Materialmetal
Operator Position Information2 positions
Mechanical Durability5000000 cycles
Mounting Diameter30 mm
Type Of Operatorpush-pull
Shape Of Signaling Unit Headround
Net Weight0.186 kg
Bulb BaseBA 9s
Key Specifications
- Range Of Product
- Harmony 9001K
- Light Block Supply
- direct
- Product Or Component Type
- head for illuminated push-button
Operator Profilered mushroom Ø 41 mm, unmarked
Type Of Operatorstay put
Device Short Name9001K
