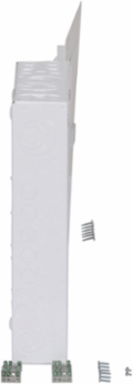

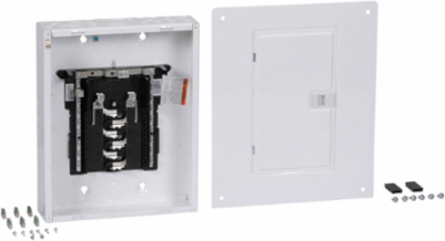

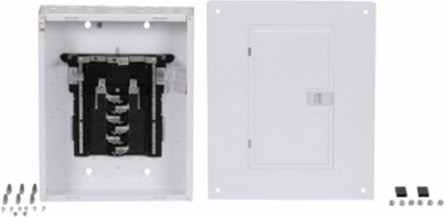

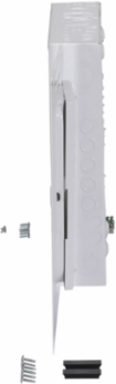

Schneider Electric CHOM1224L125GC Homeline Loadcentre 125A 12 Spaces NEMA 1, Wall Mount, Main Lugs
- MPN: CHOM1224L125GC
- UPC: 785901614807
- PPN: SCH-CHOM1224L125GC
CAD
$134.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has a plug on neutral main lugs that is rated at 125 A single phase. This CHOM load center provides a 10 kA breaking capacity. This system provides 12 spaces in a NEMA 1 enclosure. The electrical connections are main lugs. A grounding bar is included but not installed. The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. This HOM Homeline load center has a height of 17.92 inches, a width of 14.25 inches and depth of 3.75 inches. The combination flush surface cover is painted white. HOM Homeline load centers are CSA certified.
Features
- The Schneider Square D CHOM1224L125GC is a single-phase, 125-Amp Main Lug load center. Designed specifically for the residential market, it acts as a distribution hub for branch circuits. Since it is a "Main Lug" (L) model, it does not have a main breaker; it is typically used as a sub-panel fed from a larger main service panel.
- The "1224" in the part number tells you exactly what it can handle: 12 Spaces: It has 12 physical slots for full-size breakers. 24 Circuits: By using "tandem" (twin) breakers, you can expand the capacity to support up to 24 separate circuits. This makes it an excellent choice for basement renovations, large garage workshops, or home additions.
- With a 125A maximum rating, this panel can easily handle significant loads, including a combination of 120V lighting/outlet circuits and 240V heavy appliances like a heater, car charger, or large power tools.

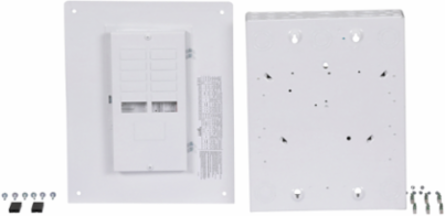

- The "C" at the end of the part number indicates it comes with a Combination Cover. This versatile cover is designed to allow the panel to be mounted either flush (inside the wall between studs) or surface (bolted to the face of a wall). This flexibility is perfect for both finished basements and open utility rooms.
- The "GC" suffix indicates that this value-pack version includes a factory-installed ground bar. In a sub-panel, the neutral and ground must be kept separate; having the ground bar already installed saves you a trip to the store and ensures you are following the Canadian Electrical Code (CEC) right out of the box.
Documentation & Downloads
Specifications
Key Specifications
- Mounting Mode
- wall mount
- Range Of Product
- Homeline
- Product Or Component Type
- Loadcentre
Short-Circuit Current10 kA
[In] Rated Current125 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Cover Plate Colour Tint
- white
- Number Of Tandem Circuit Breakers
- 12
- Electrical Connection
- lugs
- Awg Gauge
- AWG 6...AWG 2/0 aluminum/copper
- Number Of Circuits
- 24
- Loadcentre Type
- Main lugs
- Network Number Of Phases
- 1 phase
Cover Typecombination flush/surface cover
Materialtin plated aluminum: busbar
Enclosure Materialwelded sheet steel
Wiring Configuration3-wire
Number Of Spaces12
Device Compositiongrounding bar included (not installed)
Box Number6
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403002
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Environment
- Product Certifications
- CSA
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor)
