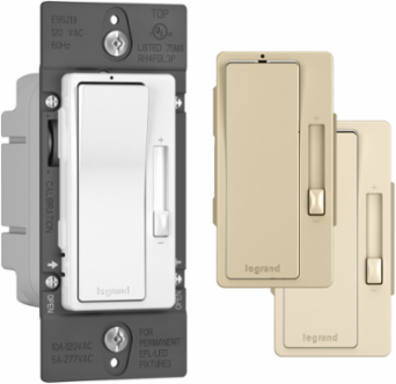

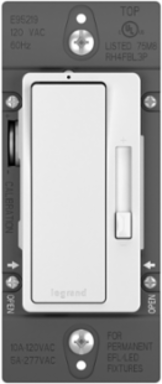

Radiant RH4FBL3PTC radiant® 0-10V LED/Fluorescent Dimmer
- MPN: RH4FBL3PTC
- UPC: 785007053319
- PPN: P-S-RH4FBL3PTC
CAD
$144.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Upgrade your space with precise dimming control and exceptional style. The radiant® 0-10V Dimmer works with low-voltage fluorescent and LED fixtures, allowing you to set the perfect light level for your space with efficiency and ease. Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Features
- Replaces any basic switch or dimmer with ease, in both single-pole and 3-way applications. For use with 0-10V, 4-wire, 120V 10A/277V 5A LED and fluorescent lighting.
- Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- Constant memory features returns lights to their previous level after a power failure or outage.
- No derating* required for 2-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.
- Features durable, high-impact resistant thermoplastic construction.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.25 in
- Preset
- Yes
- Type
- Dimmer
- Load Type
- LED
- Standard
- UL Listed
- Switch Type
- Slider
- Voltage
- 120/277 VAC
- Load Type
- Fluorescent
- Mounting Type
- Wall Box
- Wire Size
- #14 - #10 AWG
- Requires Neutral Wire
- No
- Load Rating
- 277V 5A (LED)
- Dimming Compatibility
- 0-10 V
- Application Sector
- Hospitality
- Features
- Low-End Trim (Dim Range)
- Number of Poles
- Single Pole 3-Way
- Load Rating
- 120V 10A (Fluorescent)
- Warranty Type
- Limited Lifetime Warranty
- Maximum Humidity
- 95% (relative humidity, non-condensing)
- Finish
- Matte
- Product Line
- Pass & Seymour
Height4.25 in
Width1.75 in
Country of OriginChina
StandardcULus
Switch TypePaddle
StandardCSA Listed
Indoor/OutdoorIndoor
Frequency Rating60 Hz
Number of Switches1.0
Compatible Add-OnsRHKIT
FeaturesColor Change Kit
Load Rating120V 10A (LED)
Application SectorCommercial
Application SectorResidential
Load Rating277V 5A (Fluorescent)
Wire Connection TypeFlying Leads
Special FeaturesThe radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. This dimmer is multi-location dimming with 3-Way wiring for simple installation.
Jigsaw Channel AvailabilityDistribution
ColorIvory,Light Almond,White
MaterialSteel,Thermoplastic
Environmental ConditionsHumidity: Less than 95% non condensing
