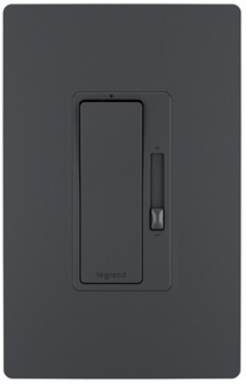

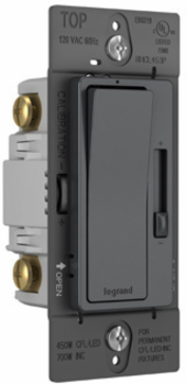

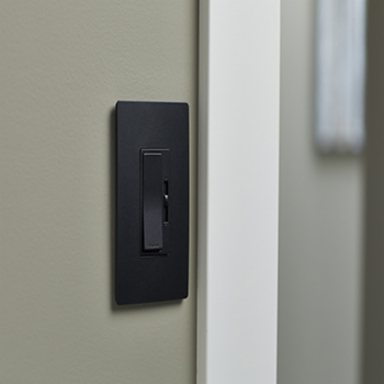

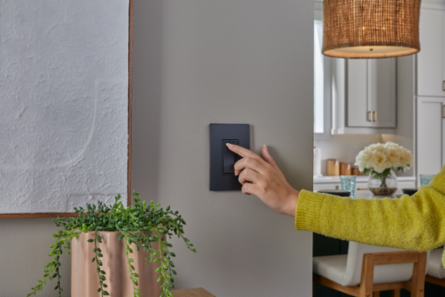

Radiant RHCL453PGCCV4 radiant® CFL/LED Dimmer, Graphite
- MPN: RHCL453PGCCV4
- UPC: 785007173741
- PPN: P-S-RHCL453PGCCV4
CAD
$67.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Upgrade your space with precise dimming control and exceptional style, with this dimmer designed for use with most compact fluorescent and LED dimmable bulbs (not for use with 0-10V options). Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Features
- Replaces any basic switch or dimmer with ease, in both single-pole and 3-way applications. Rated for use with the following dimmable bulb types: 450W LED,CFL, 700W Incandescent, or 120VAC, 60Hz
- Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- Constant memory features returns lights to their previous level after a power failure or outage.

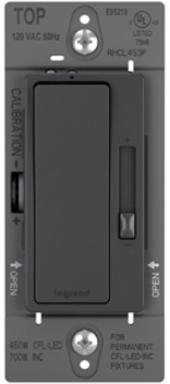

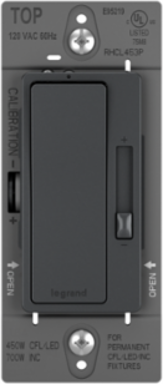

- Adjustment dial allows users to adjust the bottom of the dimming range for a broad selection of CFL and LED bulbs.
- No derating* required in multi-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.
- Features durable, high-impact resistant thermoplastic construction.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.25 in
- Preset
- Yes
- Type
- Dimmer
- Load Type
- CFL
- Voltage
- 120 VAC
- Switch Type
- Paddle
- Indoor/Outdoor
- Indoor
- Frequency Rating
- 60 Hz
- Mounting Type
- Wall Box
- Wire Size
- #14 - #10 AWG
- Requires Neutral Wire
- No
- Load Rating
- 120V 450W (CFL)
- Application Sector
- Residential
- Features
- Low-End Trim (Dim Range)
- Jigsaw Channel Availability
- Retail
- Load Rating
- 120V 700W (Incandescent)
- Warranty Type
- Limited Lifetime Warranty
- Maximum Humidity
- 95% (relative humidity, non-condensing)
- Finish
- Metallic
- Product Line
- Pass & Seymour
Height4.25 in
Width1.75 in
Country of OriginChina
Load TypeLED
Load TypeHalogen
Switch TypeSlider
FeaturesLocator Light
Load TypeIncandescent
Number of Switches1.0
Compatible Add-OnsRHKIT
FeaturesColor Change Kit
Load Rating120V 450W (LED)
Load Rating120V 700W (Halogen)
Number of PolesSingle Pole 3-Way
Dimming CompatibilityForward Phase
Wire Connection TypeScrew Terminals
Jigsaw Channel AvailabilityDistribution
ColorGraphite
MaterialSteel,Thermoplastic
