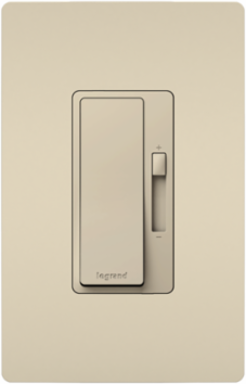

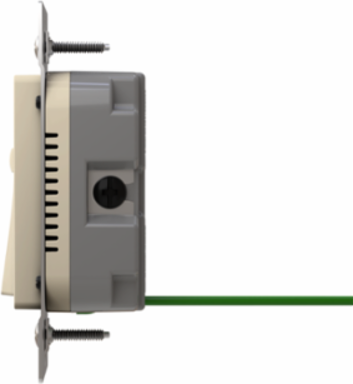

Radiant RHL153PLA radiant® LED Advanced 150W Single Pole 3-Way Dimmer, Light Almond

MPN: RHL153PLA
UPC: 785007442861
PPN: P-S-RHL153PLA

$44.36

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Upgrade your space with Legrand's newest LED dimmer switch in the radiant® Collection. Designed specifically for flicker-free control of today's dimmable LED light bulbs and fixtures, this dimmer features advanced circuitry to offer a superior lighting control experience that works right out of the box. The dimmer switch boasts a variety of user adjustments to adapt to a wide range of dimmable LED lights, eliminating unpleasant flickering, pop-ons and more. As a part of the radiant® Collection, the advanced dimmer for LED lights also features clean lines and smooth control for a sophisticated touch. Pair with a screwless radiant® Wall Plate and other designer switches and outlets from the Collection for a cohesive design throughout the home. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.*Not intended for use with 0-10V, Magnetic Low Voltage and Electronic Low Voltage Drivers.

Features

Specifically designed for use with dimmable LED bulbs and fixtures up to 150W at 120VAC. Optimized to work out of the box and provide flicker-free control of LEDs. *Not intended for use with 0-10V, Magnetic Low Voltage and Electronic Low Voltage Drivers.

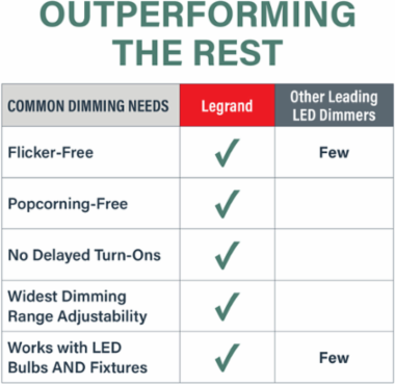

Advanced dimming technology maximizes LED compatibility to provide a full range of control while helping to eliminate most common LED dimming issues.

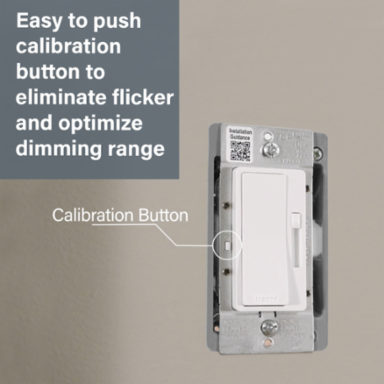

Simple high-and-low end dimming limit adjustability with easy-to-push calibration button to meet all lighting preferences and eliminate LED flickering.
Optional LED Burst Mode setting can be activated as needed to help eliminate or reduce LED turn on delays and pop-ons.
Replaces any basic single-pole or 3-way switch or dimmer in less than 15 minutes. No neutral wire required, works in both new construction and retrofit applications.

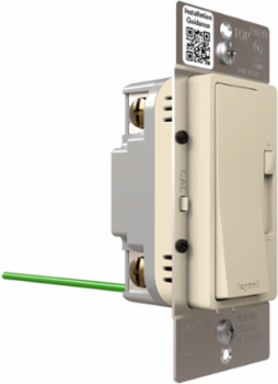

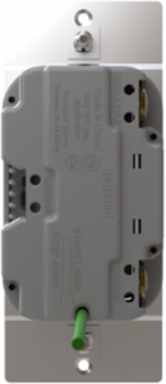

Back-wire screw and pressure plate terminations for easy and reliable wiring with ground wire lead and wire nut provided.
QR code provided on front face of device to provide easy access to installation guides and videos.

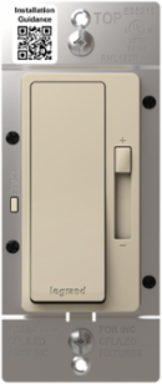

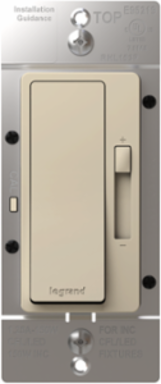

Low-profile paddle switch offers smoother on/off preset control, while separate, ergonomic slider allows for precise adjustment of light levels.
Constant memory feature returns light levels and user adjustments to return to previous settings following a power failure or outage.

Documentation & Downloads

Specifications

Key Specifications

Depth	1.46 in
Height	4.19 in
Finish	Satin
Material	Polycarbonate,Steel
Product Line	Pass & Seymour
Type	Dimmer
Standard	CSA
Standard	RoHS
Type	Decorator
Seismic Tested	No
Switch Type	Slider
Indoor/Outdoor	Indoor
Frequency Rating	60 Hz
Number of Switches	1.0
Wire Size	#14 - #10 AWG
Application Sector	Hospitality
Features	Low-End Trim (Dim Range)

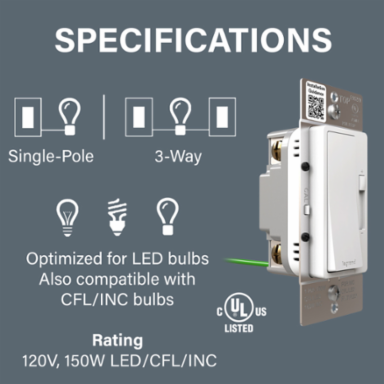

Load Rating	120V 1.25A 150W (LED)
Features	High-End Trim (Dim Range)
Dimming Compatibility	Forward Phase
Warranty Type	Limited Lifetime Warranty
Load Rating	120V 1.25A 150W (Incandescent)
Environmental Conditions	0 to 90% (relative humidity, non-condensing)

Color	Light Almond
Weight	0.194 lb
Width	1.74 in
Country of Origin	China
Preset	Yes
Type	Switch
Load Type	LED
Standard	cULus
Voltage	120 VAC
Switch Type	Paddle
Standard	WD1 & WD6)
Standard	NEMA (SSL-7A
Mounting Type	Wall Box
Features	LED Burst Mode
Requires Neutral Wire	No
Application Sector	Residential
Load Rating	120V 1.25A 150W (CFL)
Number of Poles	Single Pole 3-Way
Jigsaw Channel Availability	Retail
Wire Connection Type	Screw Terminals
Jigsaw Channel Availability	Distribution
Maximum Humidity	90% (relative humidity, non-condensing)
