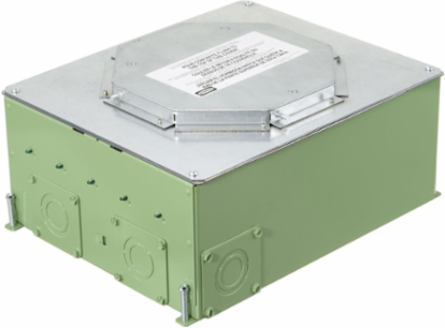

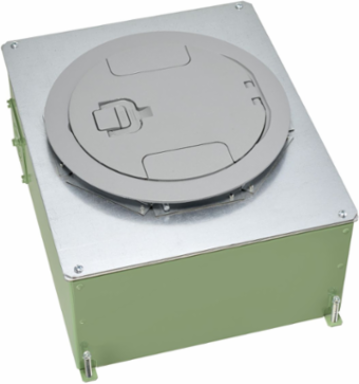

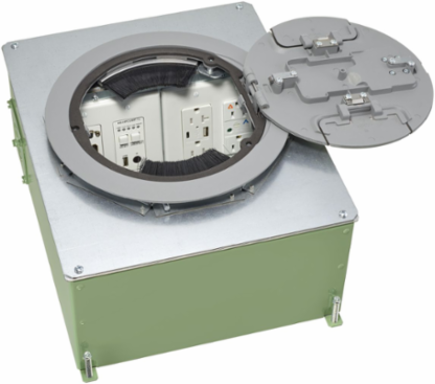

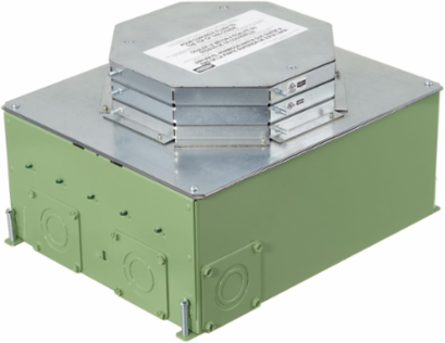

Hubbell Premise Wiring CFB45G55RCRE 4/5-Gang Recessed Concrete Floor Box, 14.14 x 11.09 x 6.31 Inch
- MPN: CFB45G55RCRE
- UPC: 783585695426
- PPN: HBL-CFB45G55RCRE
- UNSPSC: 39121307
CAD
$896.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SystemOne ETERNAL™ Series Concrete Floorboxes, Galvanized Stamped Steel Box, Recessed, 4/5-Gang CFB E-Series Box for Round Covers, 6.31" Minimum Depth of Pour, Corrosion Resistant Paint
Features
- Corrosion-Resistant Painted Recessed 4/5-Gang Round Cover Floorbox
- For Use In Concrete Floors
- 3.75" Deep Wiring Chambers
- External High Capacity Feed-Thru Hubs Sold Separately
- 6.31" Minimum Depth of Pour
- Box Includes Installation Cover
- Each Gang Includes (1) 6" Solid #12 AWG Conductor Grounding Pigtail
- (1) 2-Gang Dual Service & 4-Gang Single Service NEMA Spaced Plates Available
- Pregalvanzied Stamped Steel Box with Corrosion Resistant Paint; Concentric Knock-Outs;High-Capacity Feed-Through (External Hubs Purchased Separately)
Documentation & Downloads
Specifications
Additional
- Number of Gangs
- 4 or 5-Gang
- Width
- 11.09 in
- Length
- 14.14 in
- Finish
- Metallic/Green epoxy corrosion resistant paint
- Application
- For Use in Concrete Floors
- Trade Size Knock-Outs
- (2) 3/4", 1", 1 1/4", 2"
- Wiring Chamber Depth
- 3.75 in
- Compliance
- cULus Listed, UL 514A Listed
Dimensions14.14 in x 11.09 in x 6.31 in
Height6.31 in
Material16 gauge galvanized stamped steel
Mounting TypeField Installed, Screw Mount Device Mounting Plates
Cable EntryThrough Cover
Device Chamber Grounding6 in #12 AWG solid copper wire
Wiring Chamber Volumes(2) Small 35 in3, (2) Medium 69.5 in3, (2) Large 99 in3
