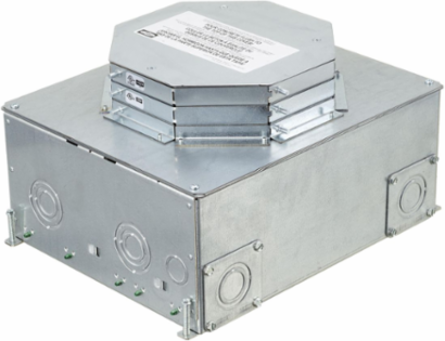

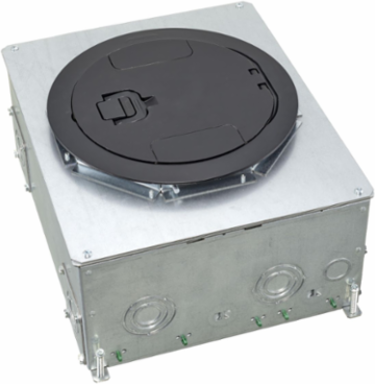

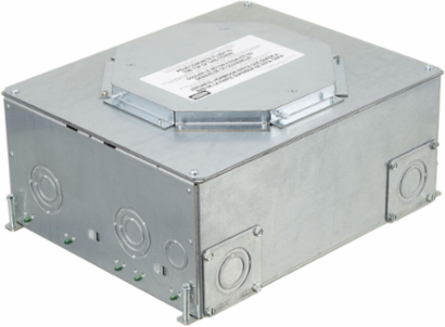

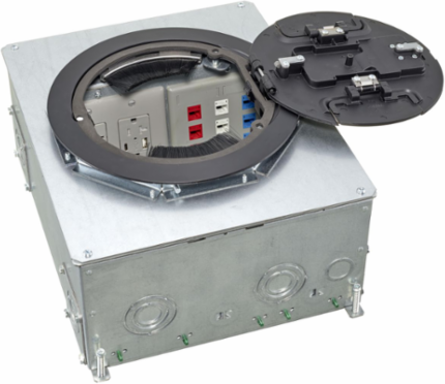

Hubbell Premise Wiring CFB10G55RE 8/10-Gang Recessed Concrete Floor Box, Galvanized Steel, 14.14 x 11.09 x 6.31 Inch
- MPN: CFB10G55RE
- UPC: 783585695136
- PPN: HBL-CFB10G55RE
- UNSPSC: 39121307
CAD
$791.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SystemOne ETERNAL™ Series Concrete Floorboxes, Galvanized Stamped Steel Box, Recessed, 8/10-Gang CFB E-Series Box for Round Covers, 6.31" Minimum Depth of Pour
Features
- Recessed 8/10-Gang Round Cover Floorbox
- For Use In Concrete Floors
- 3.75" Deep Wiring Chambers
- External High Capacity Feed-Thru Hubs Sold Separately
- 6.31" Minimum Depth of Pour
- Box Includes Installation Cover
- Each Gang Includes (1) 6" Solid #12 AWG Conductor Grounding Pigtail
- (2) 2-Gang Dual Service & 4-Gang Single Service NEMA Spaced Plates Available
- Pregalvanzied Stamped Steel Box; Concentric Knock-Outs;High-Capacity Feed-Through (External Hubs Purchased Separately)
Documentation & Downloads
Specifications
Additional
- Size
- 14.14 in x 11.09 in x 6.31 in
- Material
- Galvanized Stamped Steel
- Mounting Method
- Screw Mount Device Mounting Plates
- Type
- Recessed
- Cable Entry
- Through Cover
- Box Finish
- Natural
- Concrete Cover Material
- 16 gauge galvanized steel
- Wiring Chamber Depth
- 3.75 in
- Trade Size Knock-Outs
- (2) ½ in, ¾ in, (4) ½ in, ¾ in, 1 in, 1¼ in, 1½ in
- Gang Capacity
- 8/10-Gang Recessed
ColorMetallic
Mounting TypeField Installed
ApplicationFor Use in Concrete Floors
Number of Gang(s)8 or 10-Gang
Box Material16 gauge galvanized steel
Top Mounting Plates Material16 gauge galvanized steel
Device Chamber Grounding6 in #12 AWG Solid Copper Wire
Wiring Chamber Volumes(2) Small 35 in³, (2) Medium 69.5 in³, (2) Large 99 in³
Cover StyleRound
Industry Standard(s)cULus; UL 514A Listed
