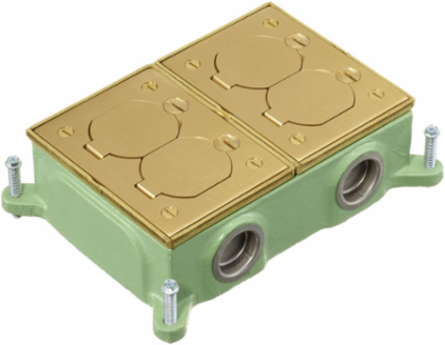

Hubbell Premise Wiring FB4214 Shallow Cast Iron Floor Box, 2-Gang, 2.00 Inch Depth, Corrosion Resistant
- MPN: FB4214
- UPC: 783585696058
- PPN: HBL-FB4214
- UNSPSC: 39121307
CAD
$377.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Flush Concrete Floorboxes Series, Shallow Cast Iron Box, Rectangular, 2-Gang, 2.00" Minimum Depth of Pour, Corrosion Resistant Paint
Features
- 2.00" minimum depth of pour
- (4) ¾" threaded hubs
- 1.25" prepour, no post pour adjustment
- Green painted corrosion-resistant cast iron floorbox
- For use in slab on grade, 2nd floor and above concrete floors
- Multi-service, includes (1) non-removable metallic low voltage divider
- Each gang includes (1) 6" solid #12 AWG conductor grounding pigtail
- Cast Iron Box with Corrosion Resistant Paint; Threaded Hubs
Specifications
Additional
| Dimensions | 7.5 in x 5.46 in x 2.05 in |
|---|---|
| Material | Cast Iron Base Box, Pregalvanized Steel Top, PVC Spacer |
| Mounting Type | Field Installed Screw Mount Device Mounting Plates |
| Color | Green |
| Box Finish | Green Powder Paint |
| Wiring Chamber Volume | 16.0 in3 |
| Cover Frame Material | Thermoplastic |
| Minimum Concrete Pour Depth | 2.00 in. |
| Number of Gang(s) | 2-Gang |
|---|---|
| Construction | Fabricated |
| Threaded Hubs | (4) 3/4 in. |
| Industry Standard(s) | cULus Listed to UL514, CSA C22.2 No 18 Certified |
| Device Chamber Grounding | 6 in. #12 AWG Solid Copper Wire |
| Box Top Material | Stamped Steel |
| Concrete Cover | Tin Plate |
| Usage | Use in Concrete Floors, Slab on Grade, 2nd Floor and Above |
