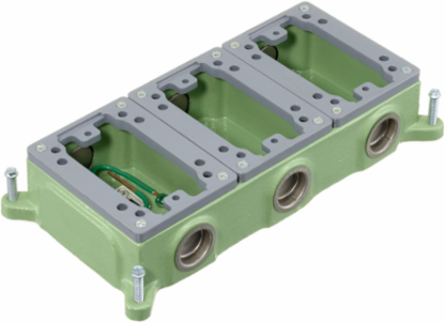

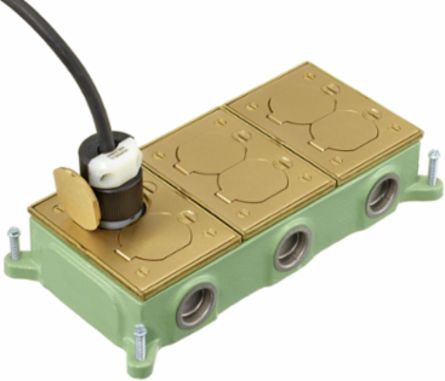

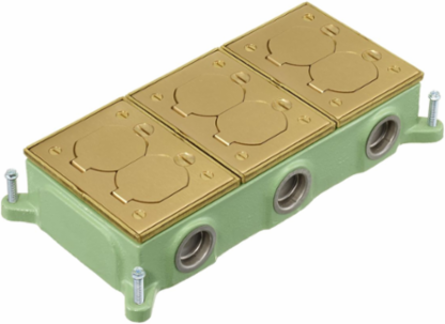

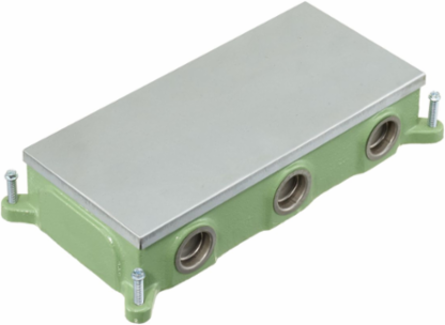

Hubbell Premise Wiring FB4314 Shallow Cast Iron Floor Box 3-Gang 10.71" x 5.46" x 2.06" Corrosion Resistant
- MPN: FB4314
- UPC: 783585696072
- PPN: HBL-FB4314
- UNSPSC: 39121307
CAD
$641.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Flush Concrete Floorboxes Series, Shallow Cast Iron Box, Rectangular, 3-Gang, 2.00" Minimum Depth of Pour, Corrosion Resistant Paint
Features
- 2.00" minimum depth of pour
- (6) ¾" threaded hubs
- 1.25" prepour, no post pour adjustment
- Green painted corrosion-resistant cast iron floorbox
- For use in slab on grade, 2nd floor and above concrete floors
- Multi-service, includes (2) non-removable metallic low voltage dividers
- Each gang includes (1) 6" solid #12 AWG conductor grounding pigtail
- Cast Iron Box with Corrosion Resistant Paint; Threaded Hubs
Specifications
Additional
| Type | Flush |
|---|---|
| Number of Gang(s) | 3-Gang |
| Mounting Type | Field Installed |
| Material | Cast Iron Base, Pregalvanized Steel Top, PVC Spacer |
| Construction | Fabricated |
| Concrete Pour Minimum Depth | 2.00 in |
| Device Chamber Grounding | 6 in. Long #12 AWG Solid Copper Wire |
| Application | For Use in Concrete Floors |
| Color | Green |
| Size | 10.71 in x 5.46 in x 2.06 in |
|---|---|
| Knockouts | 6 |
| Mounting Method | Screw Mount Device Mounting Plates |
| Finish | Green Powder Paint |
| Special Features | Corrosion Resistant Paint; Threaded Hubs |
| Threaded Hubs | (6) 3/4 in. |
| Wiring Chamber Volume | 16.0 in3 |
| Standard | cULus Listed to UL514 |
