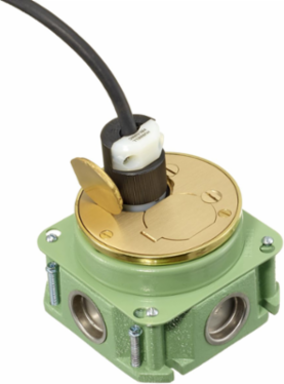

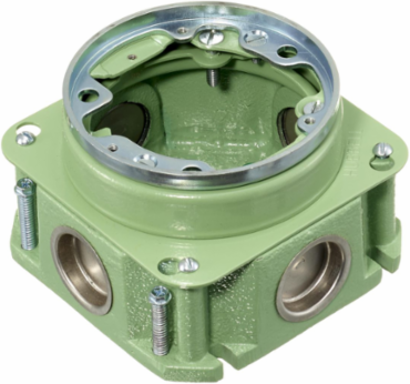

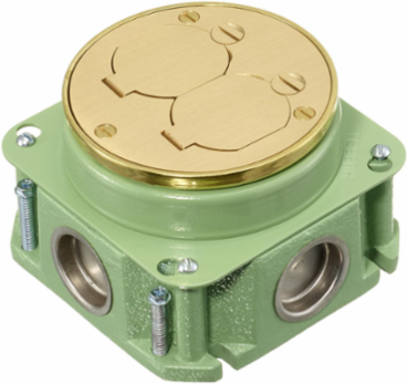

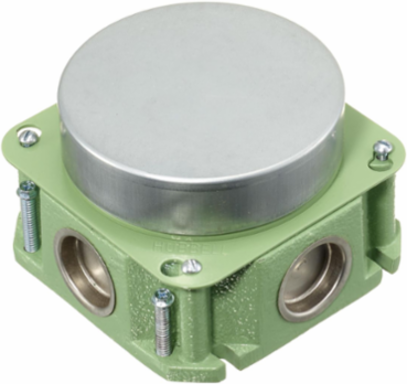

Hubbell Premise Wiring FB2536 Deep Cast Iron Floor Box, 1-Gang, 3.25" Depth, Corrosion Resistant
- MPN: FB2536
- UPC: 783585696003
- PPN: HBL-FB2536
- UNSPSC: 39121307
CAD
$248.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Flush Concrete Floorboxes Series, Deep Cast Iron Box, Round, 1-Gang, 3.25" Minimum Depth of Pour, Corrosion Resistant Paint
Features
- 3.25" minimum depth of pour
- (4) 1" threaded hubs, ships with (2) 1" to ¾" threaded reducers
- 1.25" prepour and 0.50" post pour adjustment
- Green painted corrosion-resistant cast iron base and stamped steel top
- For use in slab on grade, 2nd floor and above concrete floors
- Single service only
- Includes (1) 6" solid #12 AWG conductor grounding pigtail
- Cast Iron Box with Corrosion Resistant Paint; Threaded Hubs
Specifications
Additional
| Threaded Hubs | 4 x 1 in. |
|---|---|
| Depth of Pour Minimum | 3.25 in. |
| Length | 4.85 in. |
| Mounting Type | Field Installed, Screw Mount Device Mounting Plates |
| Material | Cast Iron, PVC Spacer |
| Box Top Material | Stamped Steel |
| Cover Frame Material | Stamped Steel |
| Construction | Fabricated |
| Listings/Certifications | cULus Listed to UL514, UL514A, CSA C22.2 No 18 |
| Color | Green |
| Application | For Use in Concrete Floors |
| Threaded Reducers | (2) 1 in to 3/4 in |
|---|---|
| Width | 4.85 in. |
| Height | 3.12 in. |
| Style | 1-Gang |
| Box Base Material | Cast Iron |
| Cover Material | Tin Plate |
| Box Finish | Green Powder Paint |
| Special Features | Corrosion Resistant Paint |
| Knockouts | 4 |
| Type | Flush |
