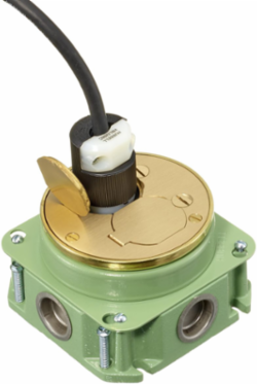

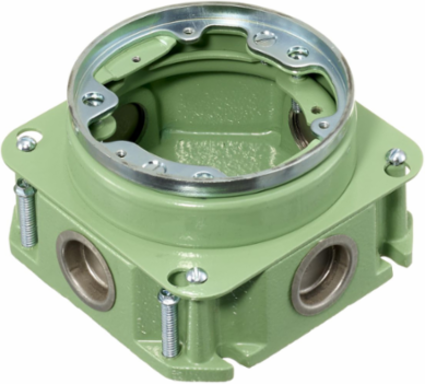

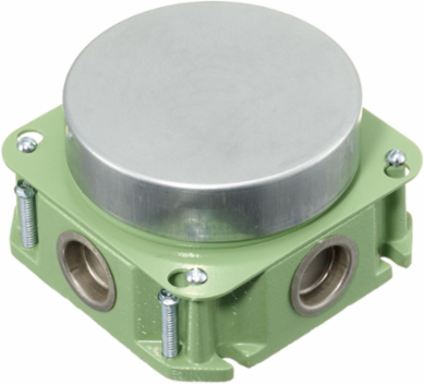

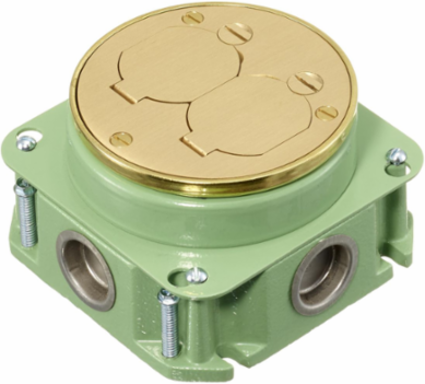

Hubbell Premise Wiring FB2537 Round Shallow Cast Iron Floor Box, 1-Gang, 3.00" Depth, Corrosion Resistant
- MPN: FB2537
- UPC: 783585696010
- PPN: HBL-FB2537
- UNSPSC: 39121307
CAD
$237.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Flush Concrete Floorboxes Series, Shallow Cast Iron Box, Round, 1-Gang, 3.00" Minimum Depth of Pour, Corrosion Resistant Paint
Features
- 3.00" minimum depth of pour
- (4) ¾" threaded hubs
- 1.25" prepour and 0.50" post pour adjustment
- Green painted corrosion-resistant cast iron base and stamped steel top
- For use in slab on grade, 2nd floor and above concrete floors
- Single service only
- Includes (1) 6" solid #12 AWG conductor grounding pigtail
- Cast Iron Box with Corrosion Resistant Paint; Threaded Hubs
Specifications
Additional
| Dimensions | 4.85 in x 4.85 in x 2.87 in |
|---|---|
| Material | Cast Iron Base Box, Pregalvanzied Steel Top, PVC Spacer |
| Style | 1-Gang |
| Type | Flush |
| Threaded Hubs | 4, 1 inch |
| Concrete Cover | Tin Plate |
| Concrete Pour Post Pour Adjustment | 0.625 in |
| Wiring Chamber Volume | 36.0 in3 |
| Industry Standard(s) | cULus Listed to UL514 |
| Mounting Type | Field Installed |
|---|---|
| Color | Green |
| Mounting Method | Screw Mount Device Mounting Plates |
| Knockouts | 4 |
| Box Finish | Green Powder Paint |
| Concrete Pour Minimum Depth | 3.00 in |
| Device Chamber Grounding | 6 in #12 AWG Solid Copper Wire |
| Standard | cULus Listed to UL514 |
| Construction | Fabricated |
