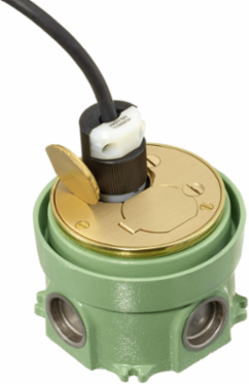

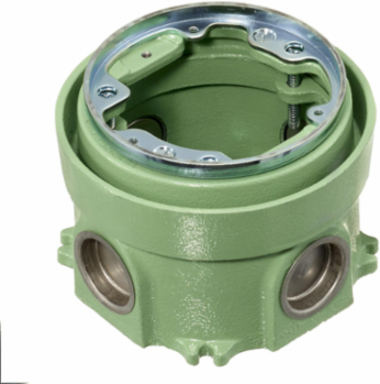

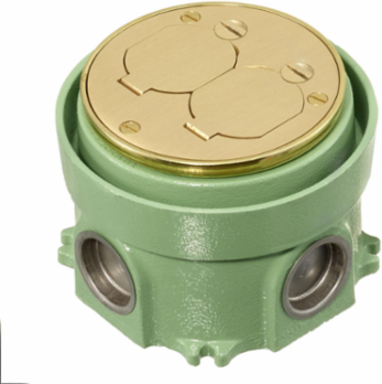

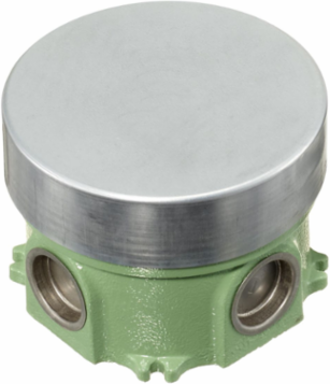

Hubbell Premise Wiring FB2546 Deep Round Cast Iron Floor Box, 1-Gang, 3.75 Inch Depth, Corrosion Resistant Paint
- MPN: FB2546
- UPC: 783585696027
- PPN: HBL-FB2546
- UNSPSC: 39121307
CAD
$288.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Flush Concrete Floorboxes Series, Deep Cast Iron Box, Round, 1-Gang, 3.75" Minimum Depth of Pour, Corrosion Resistant Paint
Features
- 3.75" minimum depth of pour
- (4) 1" threaded hubs, ships with (2) 1" to ¾" threaded reducers
- 1.25" prepour and 0.50" post pour adjustment
- Green painted corrosion-resistant cast iron base and stamped steel top
- For use in slab on grade, 2nd floor and above concrete floors
- Single service only
- Includes (1) 6" solid #12 AWG conductor grounding pigtail
- Cast Iron Box with Corrosion Resistant Paint; Threaded Hubs
Specifications
Additional
| Size | 1-Gang |
|---|---|
| Box Finish | Green Powder Paint |
| Mounting Method | Screw Mount Device Mounting Plates |
| Type | Flush |
| Width | 5 in |
| Knockouts | 4 |
| Wiring Chamber Volume | 30.0 in3 |
| Minimum Concrete Pour Depth | 3.75 in |
| Color | Green |
| Material | Cast Iron, PVC Spacer |
|---|---|
| Mounting Type | Field Installed |
| Construction | Fabricated |
| Dimensions | 6.3x11.8x9.4 in |
| Height | 3.61 in |
| Threaded Hubs | (4) 3/4 in |
| Device Chamber Grounding | 6 in #12 AWG Solid Copper Wire |
| Concrete Pour Post Pour Adjustment | 0.625 in |
| Industry Standards | cULus Listed to UL514 |
