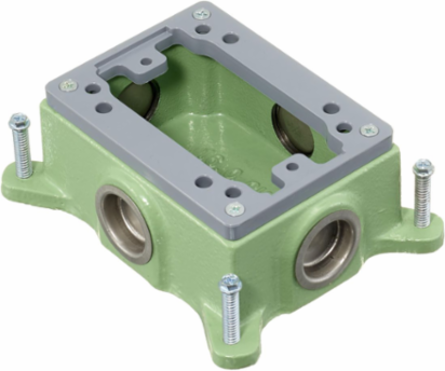

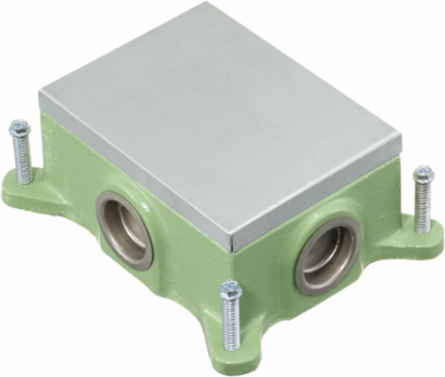

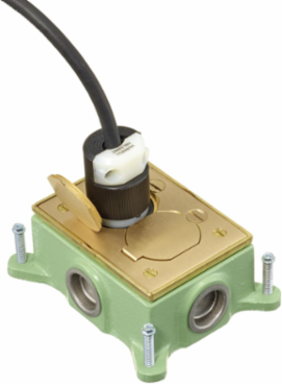

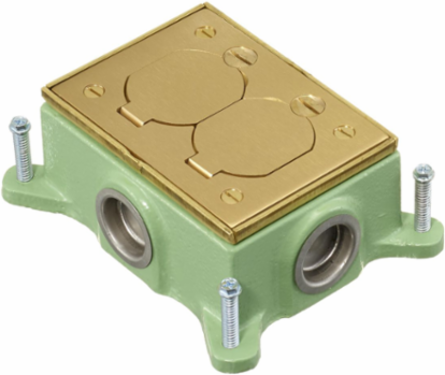

Hubbell Premise Wiring FB4114 Shallow Cast Iron Floor Box, 1-Gang, 4.38 Inch x 5.66 Inch x 2.03 Inch
- MPN: FB4114
- UPC: 783585696034
- PPN: HBL-FB4114
- UNSPSC: 39121307
CAD
$232.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Flush Concrete Floorboxes Series, Shallow Cast Iron Box, Rectangular, 1-Gang, 2.00" Minimum Depth of Pour, Corrosion Resistant Paint
Features
- 2.00" minimum depth of pour
- (4) ¾" threaded hubs
- 1.25" prepour, no post pour adjustment
- Green painted corrosion-resistant cast iron floorbox
- For use in slab on grade, 2nd floor and above concrete floors
- Single service only
- Includes (1) 6" solid #12 AWG conductor grounding pigtail
- Cast Iron Box with Corrosion Resistant Paint; Threaded Hubs
Specifications
Additional
| Size | 4.38 in x 5.66 in x 2.03 in |
|---|---|
| Mounting Method | Screw Mount Device Mounting Plates |
| Finish | Green Powder Paint |
| Threaded Hubs | (4) 3/4 in |
| Wiring Chamber Volume | 16.0 in3 |
| Type | Flush |
| Application | For Use in Concrete Floors |
| Color | Green |
| Mounting Type | Field Installed |
|---|---|
| Material | Cast Iron Base Box, Pregalvanized Steel Top, PVC Spacer |
| Style | 1-Gang |
| Device Chamber Grounding | 6 in Long #12 AWG Solid Copper Wire |
| Knockouts | 4 |
| Construction | Fabricated |
| Industry Standard(s) | cULus Listed to UL514 |
