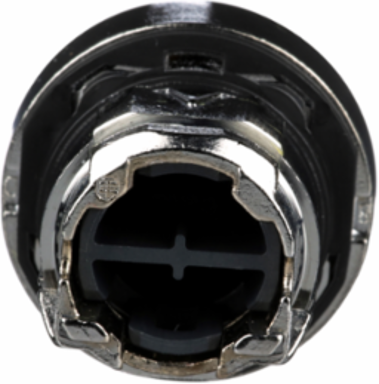

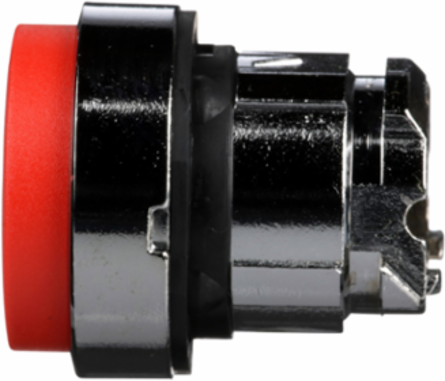

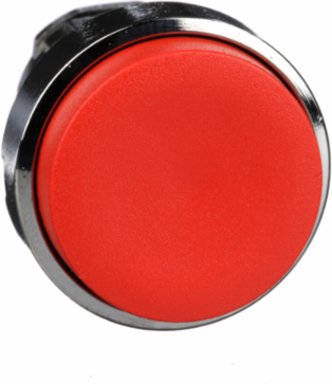

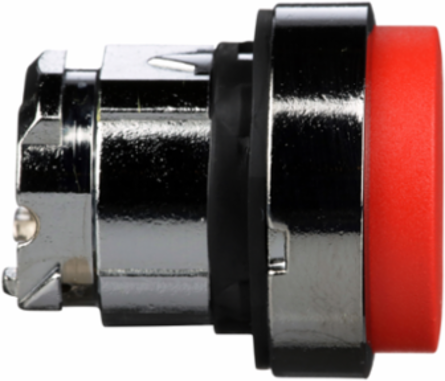

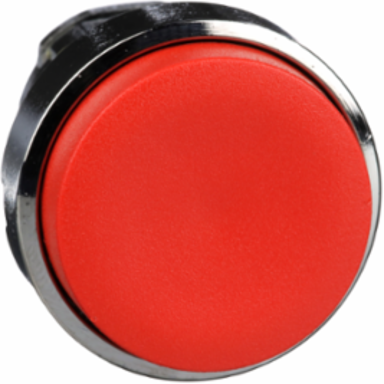

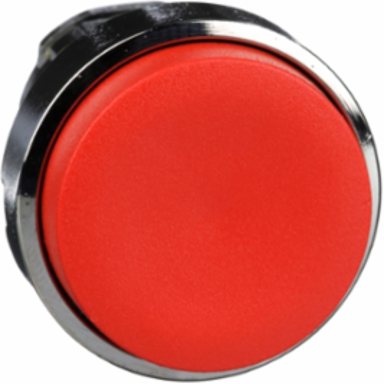

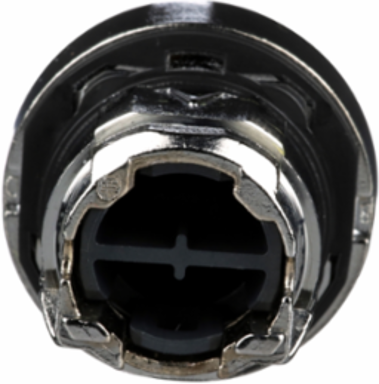

Schneider Electric ZB4BL4 Harmony XB4 Red Projecting Push Button Head, 22mm, Spring Return, IP66
- MPN: ZB4BL4
- PPN: SCH-ZB4BL4
CAD
$13.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- This modular head features a standard 22mm mounting diameter, making it an exact drop-in replacement for any standard industrial control panel or machinery station. It is fully compatible with the Schneider Electric Harmony XB4 series body blocks, mounting collars, and contact blocks, allowing you to upgrade or service your pilot devices without drilling new layout holes.
- This unit is engineered with a red, projecting (extended) operator profile rather than a flush surface, making it instantly distinguishable from a distance and effortless to actuate even when operators are wearing heavy industrial gloves. The spring-return mechanism provides crisp, momentary tactile feedback to ensure precise manual execution of machine cycles or diagnostic control loops.
- Built to survive demanding industrial manufacturing environments, this pilot device head carries premium IP66, IP67, IP69, and IP69K ratings alongside UL Type 4X/13 enclosure protection. It is entirely dust-tight and fully sealed against high-pressure, high-temperature water jets, minimizing internal component corrosion and preventing expensive electrical downtime during intensive facility washdowns.
- Unlike plastic-bezel alternatives that crack under stress, this head is built with a heavy-duty, chromium-plated metal bezel designed to absorb mechanical shocks and vibrations up to 5 gn. It features an IK06 impact resistance rating and a wide operational temperature range of -40 C to 70 C (-40 F to 158 F), protecting your control circuits from mechanical failure in extreme environments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Mexico |
|---|
Physical Attributes
| Cap Operator Or Lens Color | red |
|---|---|
| Cad Overall Height | 29 mm |
| Cad Overall Depth | 33 mm |
|---|---|
| Cad Overall Width | 29 mm |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Bezel Material | chromium plated metal, chromium plated metal |
| Cap Operator Or Lens Color | red |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0037923606, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0058165125, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Applicability | Component |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308035EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 21 % |
| Compatibility Code | ZB4 |
| Electrical Composition Code | C1 9 single front mountingC2 9 single and double front mountingC11 3 single front mountingC15 1 single front mounting |
| Group Of Product | projecting push non illum |
| Main Group | push-button |
| Mechanical Durability | 10000000 cycles |
| Operator Profile | red projecting, unmarked |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TH |
| Returnability | Yes |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.3 kg CO2 eq. |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| X C Marking | unmarked |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| Cap/Operator Or Lens Colour | red |
| Package Weight(Lbs) | 30.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Customizable | 1, no |
| Certificate Agency | BV, CSA, DNV, LROS (Lloyds register of shipping), UL Listed |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0366817319 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.2 kg CO2 eq., 0.2055525504 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 14 % |
| Device Short Name | ZB4 |
| Gcr Bridge | ZB4BLCUST01 |
| Head Type | standard |
| Marking | unmarked |
| Mounting Diameter | 22.5 mm |
| Overvoltage Category | class I conforming to IEC 60536 |
| Product Or Component Type | head for non-illuminated push-button |
| Range Of Product | Harmony XB4 |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Type Of Operator | spring return |
| X C Product | projecting push non illum |
| Pep Code | ENVPEP2308035EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 84 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308035EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2308035EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | UL type 4X/13, NEMA 13, NEMA 4X |
| Recycled Metal Content At Cr Level | 21 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.2518431554 |
| Environmental Disclosure | ENVPEP2308035EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | head for non-illuminated push-button |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC000221 |
|---|
| ETIM 9 | EC000221 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | basic element |
|---|
