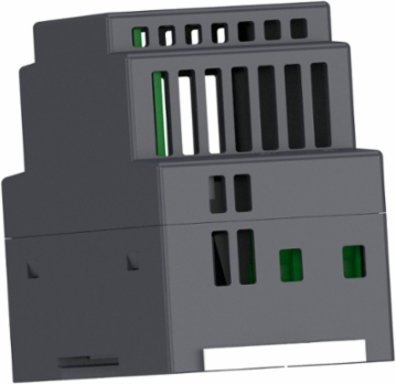

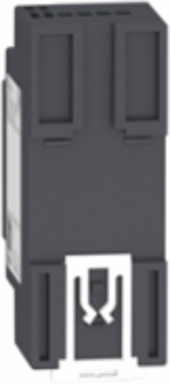

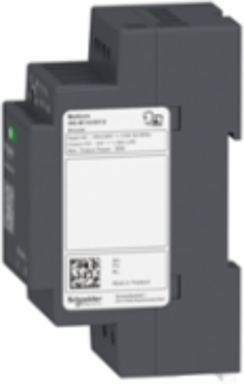

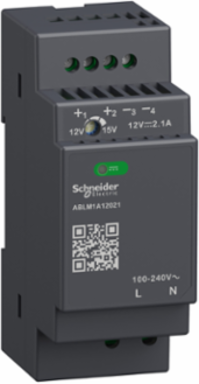

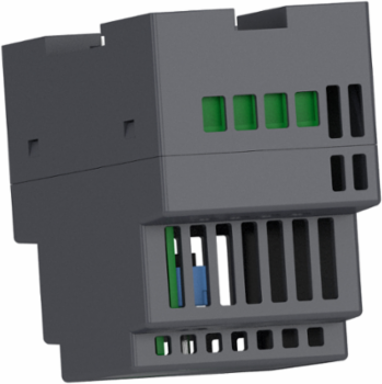

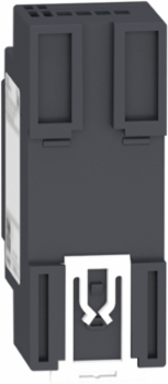

Schneider Electric ABLM1A12021 25W Regulated Power Supply, 100-240V AC, 12V, 2.1A, Rail Mounting
- MPN: ABLM1A12021
- PPN: SCH-ABLM1A12021
CAD
$145.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 2,1A at 12V DC and a rated power output of 25W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 30mm, its height is 75mm, its depth is 92,8mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.170kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 4A, B or C curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Features
- Measuring just 36mm wide, 91mm high, and 55.6mm deep, this Modicon ABLM switch-mode power supply maximizes premium rail space. Its miniature, modular form factor integrates seamlessly into standard enclosures and low-profile industrial automation panels, eliminating the need to restructure your layout or upgrade to larger, more expensive electrical cabinets.
- Delivering a precise 25-watt regulated output with less than 100mV of residual ripple, this unit supplies clean, stable direct current to critical control circuits. By isolating delicate instrumentation from line fluctuations and voltage drops, it ensures highly reliable signal processing for simple machinery, material handling conveyors, and commercial building automation systems.
- Engineered to accept a wide nominal input range from 100V to 240V AC across single or two-phase networks, the hardware adapts flawlessly to fluctuating power grids. This global flexibility allows industrial machine builders to standardize a single component for international deployment, lowering inventory overhead and eliminating performance variations caused by regional voltage swings.
- Equipped with built-in electronic safeguards against overvoltage, undervoltage, and short-circuits, the power supply includes smart automatic-reset technology. Once an downstream electrical fault is cleared, the unit automatically restarts without field technician intervention—minimizing costly downtime and preventing localized terminal overheating or catastrophic component failure.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Modicon Power Supply
- Product Or Component Type
- power supply
- Input Voltage
- 100...240 V AC single phase || 100...240 V AC phase to phase
- Rated Power In W
- 25 W
Output Voltage12 V DC
Power Supply Typeregulated switch mode
Power Supply Output Current2.1 A
Enclosure Materialplastic
Complementary
- Output Coupling
- serial
- Residual Ripple
- < 100 mV
- Holding Time
- > 20 ms 115 V AC || > 60 ms 230 V AC
- Earthing System
- TN || TT || IT
- Dielectric Strength
- 3000 V AC input/output
- Current Consumption
- < 0.8 A 115 V AC || < 0.6 A 230 V AC
- Net Weight
- 0.170 kg
- Input Protection Type
- integrated fuse (not interchangeable) 3.15 A || external protection (recommended) 20 A Curve B || external protection (recommended) 20 A Curve C || external protection (recommended) 4 A Curve B || external protection (recommended) 4 A Curve C
- Service Life
- 10 year(s)
- Power Dissipation In W
- 4.6 W
- Mounting Support
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || double-profile DIN rail || panel mounting
- Response Time
- < 2 s
- Width
- 36 mm
- Inrush Current
- 25 A 115 V || 50 A 230 V
- Depth
- 55.6 mm
Height91 mm
Status Led1 LED (green) output voltage
Input Voltage Limits90...264 V AC
Connections - Terminalsscrew connection 0.5...1.5 mm², AWG 20...AWG 16) without wire end ferrule input/output || screw connection 0.5...1 mm², AWG 20...AWG 18) with wire end ferrule input/output
Network Frequency Limits50-60 Hz
SupplySELV IEC 60950-1 || SELV IEC 60204-1 || SELV IEC 60364-4-41
Maximum Leakage Current0.25 mA 240 V AC
Output Protection Typeagainst overload and short-circuits automatic reset || against over temperature manual reset || against overvoltage manual reset
Meantime Between Failure [Mtbf]2500000 h at 25 °C, full load || 1000000 h at 55 °C, 80 % load
Output Voltage Limits12...15 V
Load Capacitance3000 µF
Line And Load Regulation< 0.5 % network in line || < 1 % network 0 to 100 % load
Overvoltage CategoryII
Efficiency85 % 115 V AC || 85 % 230 V AC
Power Factor0.48 at 115 V AC || 0.38 at 230 V AC
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2004005EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI2004005EN
Environment
- Standards
- IEC 62368-1 || EN/IEC 61010-1 || EN 61010-2-201 || EN/IEC 61204-3 || IEC 61000-6-1 || IEC 61000-6-2 || IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-3-2 || EN 61000-3-3 || UL 62368-1 || UL 61010-1 || UL 61010-2-201 || CSA C22.2 No 62368-1 || CSA C22.2 No 61010-1 || CSA C22.2 No 61010-2-201 || EN/IEC 62368-1
- Product Certifications
- CE || cUL listed || cUL recognized || RCM || CB Scheme || EAC || KC || NEC class 2
- Electromagnetic Compatibility
- immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2 || immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2 || electromagnetic field immunity test - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3 || electromagnetic field immunity test - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3 || electromagnetic field immunity test - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3 || immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4 || surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5 || surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5 || immunity to conducted disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6 || immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8 || immunity to voltage dips - test level: 100 % (1 cycle) conforming to IEC 61000-4-11 || immunity to voltage dips - test level: 60 % (10 cycles) conforming to IEC 61000-4-11 || immunity to voltage dips - test level: 30 % (25 cycles) conforming to IEC 61000-4-11 || disturbing field emission conforming to EN 55016-2-3 || limits for harmonic current emissions conforming to IEC 61000-3-2 || conforming to EN 55016-1-2 || conforming to EN 55016-2-1
- Vibration Resistance
- 3 mm 2-9 Hz)IEC 60721-3-3 || 10 m/s² 9-200 Hz)IEC 60721-3-3
- Operating Altitude
- < 2000 m overvoltage category III || 2000 m...5000 m overvoltage category II
- Electromagnetic Emission
- conducted emissions IEC 61000-6-3 || radiated emissions IEC 61000-6-4
Ambient Air Temperature For Operation-25-55 °C without current derating mounting position A < 2000 m || 55-70 °C with current derating of 2.67 % per °C mounting position A < 2000 m
Pollution Degree2
Shock Resistance150 m/s² 11 ms
Ip Degree Of ProtectionIP20
Electrical Shock Protection Classclass II without PE connection
Accessories
