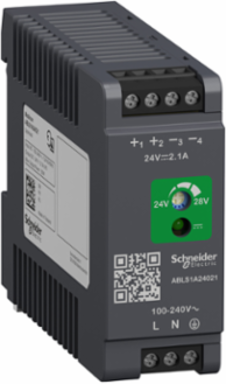

Schneider Electric ABLS1A24021 24V DC Regulated Power Supply, 100-240V AC, 2.1A, 50W, Rail Mounted

  • MPN: ABLS1A24021
  • PPN: SCH-ABLS1A24021
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $148.57

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    24V DC Regulated Power Supply, 100-240V AC, 2.1A, 50W, Rail Mounted

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginIndia, Singapore, United States
    Depth89.5 mm

    Complementary Attributes

    Maximum Leakage Current1 mA 240 V AC
    Rated Power In W50 W

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Current Consumption< 1.1 A 115 V AC, < 1.1 A 115 V AC, < 1.1 A 115 V AC, < 0.65 A 230 V AC, < 0.65 A 230 V AC, < 0.65 A 230 V AC< 1.1 A 115 V AC, < 1.1 A 115 V AC, < 1.1 A 115 V AC, < 0.65 A 230 V AC, < 0.65 A 230 V AC
    Electromagnetic Compatibilityimmunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8immunity to voltage dips conforming to IEC 61000-4-11disturbing field emission conforming to EN 55016-2-3limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1
    Line And Load Regulation< 0.5 % network 0 to 100 % load at 25 °C, < 0.5 % network 0 to 100 % load at 25 °C, < 0.5 % network 0 to 100 % load at 25 °C, < 1 % network full voltage range in line at 25 °C, < 1 % network full voltage range in line at 25 °C, < 1 % network full voltage range in line at 25 °C< 0.5 % network 0 to 100 % load at 25 °C, < 0.5 % network 0 to 100 % load at 25 °C, < 0.5 % network 0 to 100 % load at 25 °C, < 1 % network full voltage range in line at 25 °C, < 1 % network full voltage range in line at 25 °C
    Residual Ripple< 75 mV, < 75 mV
    SupplySELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
    Meantime Between Failure [Mtbf]2000000 h at 25 °C, full load conforming to SR 332, 900000 h at 55 °C, 80 % load conforming to SR 332
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6498138709204117, 0.6 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]7 kg CO2 eq., 7.247414258019903
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Efficiency86 % 115 V AC88 % 230 V AC
    Electrical Shock Protection Classclass I
    Enclosure MaterialPlastic
    Load Capacitance3000 µF
    Overvoltage CategoryII
    Power Factor0.45 at 115 V AC0.35 at 230 V AC
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductModicon Power Supply
    Service Life10 year(s)
    Software Versionv6.2.5-6
    Sustainable PackagingNo
    Vibration Resistance3 mm (f= 2-9 Hz) conforming to IEC 60068-2-610 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6
    Pep CodeENVPEP2001002EN
    Pep Verification Date2025-09-18
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
    Recyclability Potential In %4
    Width Nominal30 mm
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8504409510
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Earthing SystemTN, TT, IT
    Holding Time> 20 ms 100 V AC, > 20 ms 100 V AC, > 20 ms 100 V AC, > 100 ms 230 V AC, > 100 ms 230 V AC, > 100 ms 230 V AC> 20 ms 100 V AC, > 20 ms 100 V AC, > 20 ms 100 V AC, > 100 ms 230 V AC, > 100 ms 230 V AC
    Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, double-profile DIN rail
    Response Time< 3 s, < 3 s
    Certificate AgencyCE, cUL Listed, cUL Recognized, RCM, CB Scheme, EAC, KCNEC class 2
    Carbon Footprint Of The Distribution Phase [A4]0.10244514131518583, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.002733752868396357
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]371 kg CO2 eq., 370.7403539420815
    Local Publishable Date2026-03-26
    Stocking FlagY
    Device TypePLC System - PLC Component
    TraceabilityYes
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2001002EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2010
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Dielectric Strength3000 V AC with input to output
    Efficiency At Full Load85...264 V AC
    Electromagnetic Emissionconducted emissions IEC 61000-6-3radiated emissions IEC 61000-6-4
    Inrush Current35.0 A 115 V75.0 A 230 V
    Network Frequency Limits50-60 Hz
    Power Dissipation In W7.5 W
    Power Supply Typeregulated switch mode
    Product Or Component Typepower supply
    ReturnabilityYes
    Shock Resistance150 m/s² 11 ms
    Status Led1 LED (Green) output voltage
    Total Lifecycle Carbon Footprint379 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2024/01/20
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo supply control circuits in industrial atmosphere up to 480W at 100% for 10 years.To supply control circuits in industrial atmosphere up to 480W at 100% for 10 years.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime In Kwh657
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    Height Nominal75 mm
    Connections - Terminalsscrew connection 0.5...2.5 mm², 20 AWG...14 AWG) input/output
    Package Weight(Lbs)215.000 g
    Warranty (In Months)18
    Other Technical Guide NameESXP1G003EN

    Environment Attributes Main

    Ambient Air Temperature For Operation-20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -10-55 °C without derating mounting position A < 6561.68 ft (2000 m), -10-55 °C without derating mounting position A < 6561.68 ft (2000 m), -10-55 °C without derating mounting position A < 6561.68 ft (2000 m), -10-55 °C without derating mounting position A < 6561.68 ft (2000 m)-20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -10-55 °C without derating mounting position A < 6561.68 ft (2000 m), -10-55 °C without derating mounting position A < 6561.68 ft (2000 m)55-70 °C with current derating of 3.33 % per °C mounting position A < 6561.68 ft (2000 m)
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2001002EN
    Eu Rohs DirectiveCompliant By Exemption
    Operating Altitude< 6561.68 ft (2000 m)< 6561.68 ft (2000 m)
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP2001002EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint378.74276096520543
    Environmental DisclosureENVPEP2001002EN
    Ip Degree Of ProtectionIP20
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2025-09-18
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Typepower supply
    Range Of ProductModicon Power Supply

    ETIM

    ETIM 8EC002540
    ETIM 9EC002540

    Output Attributes

    Output Couplingparallel, serial
    Output Voltage24 V DC
    Power Supply Output Current2.1 A
    Output Protection Typeagainst overload and short-circuits, protection technology: automatic resetagainst over temperature, protection technology: manual reset, against overvoltage, protection technology: manual reset
    Output Voltage Limits24...28 V

    Input Attributes

    Input Protection Typeintegrated fuse (not interchangeable) 3.15 A, external protection (recommended) 20 A Curve Cexternal protection (recommended) 10 A Curve B, external protection (recommended) 6 A Curve C
    Efficiency86 % 115 V AC88 % 230 V AC
    Input Voltage100...240 V AC single phase, 100...240 V AC phase to phase
    Efficiency At Full Load85...264 V AC

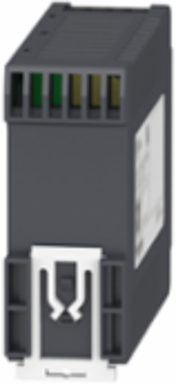

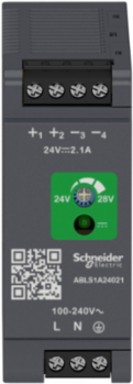

    24V DC Regulated Power Supply, 100-240V AC, 2.1A, 50W, Rail Mounted

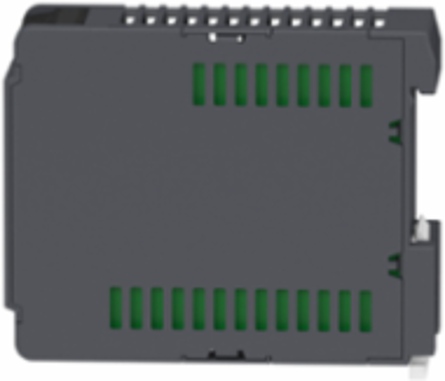

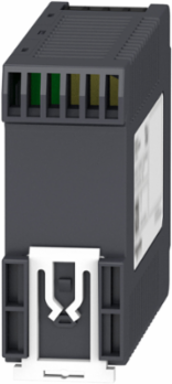

    24V DC Regulated Power Supply, 100-240V AC, 2.1A, 50W, Rail Mounted

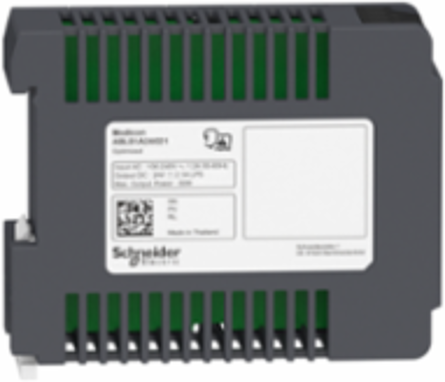

    24V DC Regulated Power Supply, 100-240V AC, 2.1A, 50W, Rail Mounted

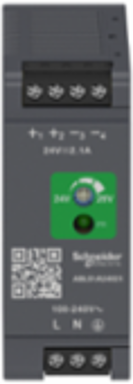

    24V DC Regulated Power Supply, 100-240V AC, 2.1A, 50W, Rail Mounted

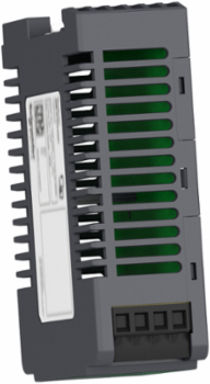

    24V DC Regulated Power Supply, 100-240V AC, 2.1A, 50W, Rail Mounted

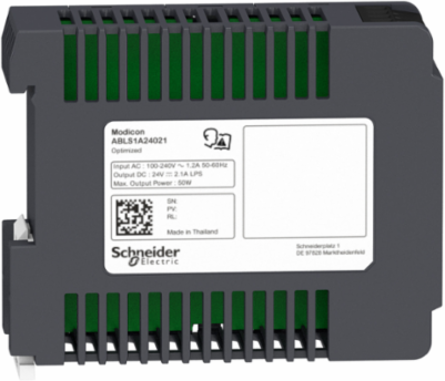

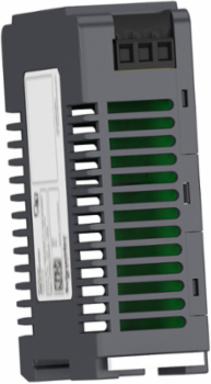

    24V DC Regulated Power Supply, 100-240V AC, 2.1A, 50W, Rail Mounted
