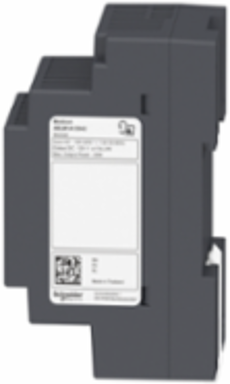

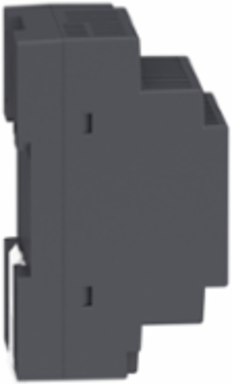

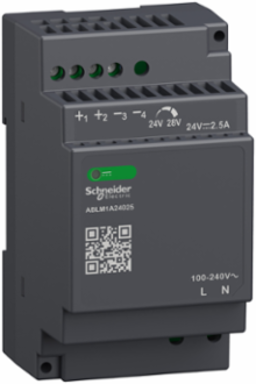

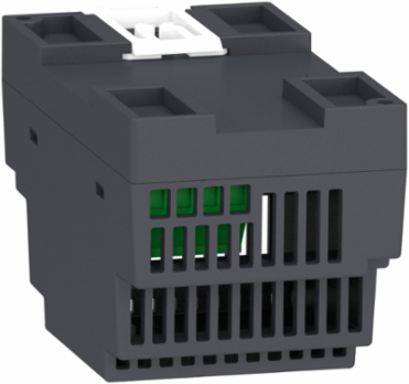

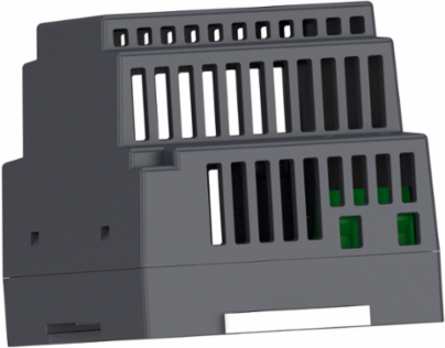

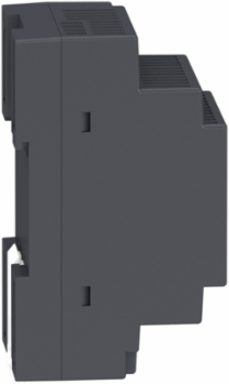

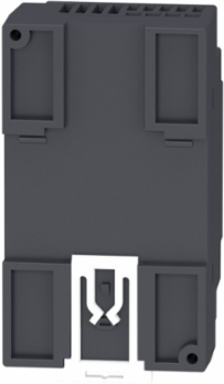

Schneider Electric ABLM1A24025 Regulated Power Supply 24V DC, 2.5A, 60W, Rail Mounting

MPN: ABLM1A24025
PPN: SCH-ABLM1A24025

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$187.25

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Regulated Power Supply 24V DC, 2.5A, 60W, Rail Mounting

Features

Delivering a substantial 24V DC output at up to 2.5A, this 60W regulated switch-mode power supply is engineered to handle higher-demand automated systems with ease.
Even with its higher power output, this Modicon unit retains a highly compact 53 mm width and features a smart, double-profile housing that matches standard miniature circuit breakers. It snaps effortlessly onto standard DIN rails, allowing panel builders to mount it flush inside shallow consumer enclosures.
Fully certified to meet NEC Class 2, cULus, and CSA benchmarks, this module inherently caps its output energy to prevent electrical shock hazards and thermal ignition. For system integrators and electrical contractors throughout Canada, this Safety Extra-Low Voltage (SELV) rating eliminates the requirement for heavy-duty conduits and expensive external overcurrent protection, significantly cutting down on both material and labor installation costs.
To protect your sensitive downstream automation components, this switch-mode module features integrated protection circuits against line overvoltage, overloads, and short-circuits. If an electrical fault occurs on the line, the unit instantly self-protects and then utilizes automatic recovery technology to resume normal 24V operation the exact millisecond the field hazard is cleared, preventing unnecessary service calls and costly manual resets.
Featuring a highly adaptable input architecture, this power module safely accepts a wide input voltage range from 100V to 240V AC across both single-phase and phase-to-phase configurations. This ensures your machines and automated systems receive clean, ripple-free direct current even during minor line sags, making it an excellent standardized choice for equipment intended for international export or domestic Canadian facilities with varied power grids.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	India, Singapore, United States

Depth	55.6 mm

Complementary Attributes

Maximum Leakage Current	0.25 mA 240 V AC

Rated Power In W	60 W

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Current Consumption	< 1.5 A 115 V AC, < 1.5 A 115 V AC, < 1.5 A 115 V AC, < 1 A 230 V AC, < 1 A 230 V AC, < 1 A 230 V AC< 1.5 A 115 V AC, < 1.5 A 115 V AC, < 1.5 A 115 V AC, < 1 A 230 V AC, < 1 A 230 V AC
Efficiency	90 % 115 V AC, 90 % 230 V AC
Holding Time	> 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 115 V AC, > 60 ms 230 V AC, > 60 ms 230 V AC, > 60 ms 230 V AC> 20 ms 115 V AC, > 20 ms 115 V AC, > 20 ms 115 V AC, > 60 ms 230 V AC, > 60 ms 230 V AC
Mounting Support	top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, double-profile DIN rail, panel mounting
Response Time	< 2 s, < 2 s
Certificate Agency	CE, cUL Listed, cUL Recognized, RCM, CB Scheme, EAC, KCNEC class 2
Meantime Between Failure [Mtbf]	1300000 h at 25 °C, full load, 700000 h at 55 °C, 80 % load
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.2 kg CO2 eq., 0.18695
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	3 kg CO2 eq., 3.0662
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Field Service Division	IDIBS
Use Carbon Footprint	278.98
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Efficiency At Full Load	90...264 V AC
Electromagnetic Emission	conducted emissions IEC 61000-6-3radiated emissions IEC 61000-6-4
Inrush Current	30 A 115 V60 A 230 V
Network Frequency Limits	50-60 Hz
Power Dissipation In W	6.5 W
Power Supply Type	regulated switch mode
Product Or Component Type	power supply
Returnability	Yes
Shock Resistance	150 m/s² 11 ms
Status Led	1 LED (Green) output voltage
Total Lifecycle Carbon Footprint	282 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To supply control circuits in industrial and building automation up to 6,5 W at 100% for 10 years.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	569.4
Energy Model - Installation [A5]	Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; < 1kV; EU-27
Width Nominal	53 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Acidification Of Soil And Water (Kg.Equivalent.So2) Total Life Cycle	1.1697
Air Pollution (M3) Total Life Cycle	12338
Air Pollution (M3) Distribution [A4]	1.1927
Air Pollution (M3) End Of Life [C1-c4]	3.223
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]	26.589
Global Warming (Kg.Equivalent.Co2) Total Life Cycle	282.26
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]	278.98
Net Use Of Fresh Water (M3) Total Life Cycle	1011.5
Non-hazardous Waste Disposed Of (Kg) Total Life Cycle	1040.6
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	1040.1
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	36.28
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle	5610.5
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	5571.7
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	1.6016
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	3.0123
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	4897.3
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	4863.2
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	708.5
Water Pollution (M3) Manufacturing [A1-a3]	582.78
Water Pollution (M3) Operational Energy Use [B6]	11512
Customs Code	8504409520

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Earthing System	TN, TT, IT
Electromagnetic Compatibility	immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2electromagnetic field immunity test - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3electromagnetic field immunity test - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, electromagnetic field immunity test - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5immunity to conducted disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8immunity to voltage dips - test level: 100 % (1 cycle) conforming to IEC 61000-4-11immunity to voltage dips - test level: 60 % (10 cycles) conforming to IEC 61000-4-11immunity to voltage dips - test level: 30 % (25 cycles) conforming to IEC 61000-4-11disturbing field emission conforming to EN 55016-2-3limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1
Line And Load Regulation	< 0.5 % network in line, < 0.5 % network in line, < 1 % network 0 to 100 % load, < 1 % network 0 to 100 % load< 0.5 % network in line, < 0.5 % network in line, < 1 % network 0 to 100 % load, < 1 % network 0 to 100 % load
Residual Ripple	< 100 mV, < 100 mV
Supply	SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
Connections - Terminals	screw connection 0.5...2.5 mm², 20 AWG...14 AWG) without wire end ferrule output, screw connection 0.5...1.5 mm², 20 AWG...16 AWG) with wire end ferrule output, screw connection 0.5...1.5 mm², 20 AWG...16 AWG) input
Carbon Footprint Of The Distribution Phase [A4]	0.028037, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0022251, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	279 kg CO2 eq., 278.98
Local Publishable Date	2026-03-26
Stocking Flag	Y
Device Type	PLC System - PLC Component
Traceability	Yes
Manufacturing Carbon Footprint	3.0662
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2004005EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2010
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Dielectric Strength	3000 V AC input/output
Electrical Shock Protection Class	class II without PE connection
Enclosure Material	Plastic
Load Capacitance	3000 µF
Overvoltage Category	II
Power Factor	0.50 at 115 V AC0.39 at 230 V AC
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Modicon Power Supply
Service Life	10 year(s)
Software Version	EIME v5.8.1
Sustainable Packaging	No
Vibration Resistance	3 mm (f= 2-9 Hz) conforming to IEC 60721-3-310 m/s² (f= 9-200 Hz) conforming to IEC 60721-3-3
Pep Code	ENVPEP2004005EN
Pep Verification Date	2020-03-01
Psr Version	PSR-0010-ed1.1-EN-2015 10 16
Data Source	referent product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: Thailand
Energy Model - Use [B6]	Electricity mix; AC; < 1kV; EU-27
Height Nominal	91 mm
Carbon Footprint (Kg Co2 Eq Total Life Cycle)	282.26
Package Weight(Lbs)	227.000 g
Warranty (In Months)	18
Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]	1.1637
Air Pollution (M3) Manufacturing [A1-a3]	326.45
Air Pollution (M3) Operational Energy Use [B6]	12007
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle	3194
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	3166.6
Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]	3.0662
Hazardous Waste Disposed Of (Kg) Total Life Cycle	1.0882
Net Use Of Fresh Water (M3) Operational Energy Use [B6]	1011.5
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]	0.5245
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle	4900.3
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	4863.2
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]	37.882
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle	710.1
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	708.5
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	3.0123
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	33.268
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	709.32
Water Pollution (M3) Total Life Cycle	12107
Water Pollution (M3) Distribution [A4]	4.6105
Water Pollution (M3) End Of Life [C1-c4]	7.6409
Other Technical Guide Name	ESXP1G003EN

Environment Attributes Main

Ambient Air Temperature For Operation	-25--10 °C with current derating of 1 % per °C mounting position A < 6561.68 ft (2000 m), -25--10 °C with current derating of 1 % per °C mounting position A < 6561.68 ft (2000 m), -25--10 °C with current derating of 1 % per °C mounting position A < 6561.68 ft (2000 m), -25--10 °C with current derating of 1 % per °C mounting position A < 6561.68 ft (2000 m), -10-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -10-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -10-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -10-55 °C without current derating mounting position A < 6561.68 ft (2000 m)-25--10 °C with current derating of 1 % per °C mounting position A < 6561.68 ft (2000 m), -25--10 °C with current derating of 1 % per °C mounting position A < 6561.68 ft (2000 m), -25--10 °C with current derating of 1 % per °C mounting position A < 6561.68 ft (2000 m), -25--10 °C with current derating of 1 % per °C mounting position A < 6561.68 ft (2000 m), -10-55 °C without current derating mounting position A < 6561.68 ft (2000 m), -10-55 °C without current derating mounting position A < 6561.68 ft (2000 m)55-70 °C with current derating of 2.67 % per °C mounting position A < 6561.68 ft (2000 m)
Take Back	No
China Rohs Regulation	X
Carbon Footprint	282.26
Environmental Disclosure	ENVPEP2004005EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2004005EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Operating Altitude	< 6561.68 ft (2000 m) overvoltage category III, < 6561.68 ft (2000 m) overvoltage category III< 6561.68 ft (2000 m) overvoltage category III, < 6561.68 ft (2000 m) overvoltage category III2000 m...5000 m overvoltage category II
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2004005EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2020-03-01
Psr Version	PSR-0010-ed1.1-EN-2015 10 16

General Attributes

Product Or Component Type	power supply

Range Of Product	Modicon Power Supply

ETIM

ETIM 8	EC002540

ETIM 9	EC002540

Output Attributes

Output Coupling	serial, parallel
Output Voltage	24 V DC
Power Supply Output Current	2.5 A

Output Protection Type	against overload and short-circuits, protection technology: automatic resetagainst over temperature, protection technology: manual reset, against overvoltage, protection technology: manual reset
Output Voltage Limits	24...28 V

Input Attributes

Efficiency	90 % 115 V AC, 90 % 230 V AC
Input Voltage	100...240 V AC single phase, 100...240 V AC phase to phase

Input Protection Type	integrated fuse (not interchangeable) 3.15 A, external protection (recommended) 20 A Curve B, external protection (recommended) 20 A Curve C, external protection (recommended) 10 A Curve B, external protection (recommended) 6 A Curve C
Efficiency At Full Load	90...264 V AC
