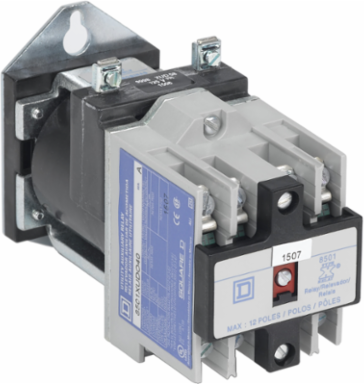

Square D 8501XUDO40V53 NEMA Control Relay, 10A AC, 24 VDC Coil, 4 Normally Open Contacts
Square D 8501XUDO40V53 NEMA Control Relay, 10A AC, 24 VDC Coil, 4 Normally Open Contacts
- MPN: 8501XUDO40V53
- UPC: 785901152460
- PPN: SCH-8501XUDO40V53
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$501.20/ EA
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.
Specifications
Specifications
- Product Certifications
- UL listed || CE || CSA
- Height
- 3.56 in
- [In] Rated Current
- 10 A AC || 5 A DC
- Range Of Product
- 8501X
- Poles Description
- 4P
- Contacts Type And Composition
- 4 NO 4 standard contact cartridges
- Operating Time
- 37 ms - pick-up || 21 ms - drop-out
- Depth
- 5.17 in
[Uc] Control Circuit Voltage24 V DC
Ambient Air Temperature For Operation-40-160 °F
Relay Typeutility
Mounting Supportpanel
Electrical Connectionscrew clamp terminals
Product Or Component Typerelay
Width2.23 in
Maximum Switching Voltage250 V DC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1310013EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileENVEOLI1310013
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
