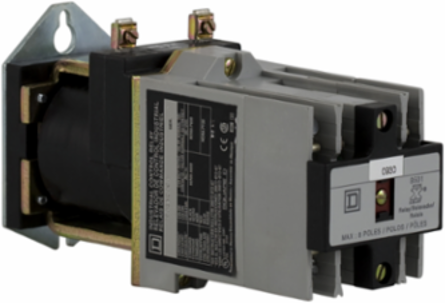

Square D 8501XDO80XDLV62 NEMA Latching Control Relay, 10A, 8 NO Contacts, 115/125 V DC
- MPN: 8501XDO80XDLV62
- UPC: 785901018155
- PPN: SCH-8501XDO80XDLV62
- UNSPSC: 39122331
CAD
$746.88
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This NEMA Type X latching relay from Schneider Electric is engineered for robust performance in a variety of automation and control applications. With the capability to handle up to 10 amps at 600 VAC, it ensures reliable operation in demanding environments. Featuring eight normally open contacts, the relay allows for efficient control of multiple circuits, making it an essential component in industrial settings. Designed with a compact height of 3.56 inches, it offers flexibility in installation without compromising on functionality or reliability.
Documentation & Downloads
Specifications
Key Specifications
- Product Certifications
- CSA || UL Listed || CE
- Height
- 3.56 in
- Line Rated Current
- 10 A AC || 5 A DC
- Range Of Product
- 8501X
- Poles Description
- 8P
- Contacts Type And Composition
- 8 NO 8 standard contact cartridges
- Operating Time
- 37 ms - pick-up || 45 ms - drop-out
- Depth
- 8.96 in
[Uc] Control Circuit Voltage115/125 V DC
Ambient Air Temperature For Operation-40-160 °F
Relay Typelatching
Mounting Supportpanel
Electrical Connectionscrew clamp terminals
Product Or Component Typerelay
Width2.23 in
Maximum Switching Voltage250 V DC
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1310013EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Circularity ProfileENVEOLI1310013
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Contractual warranty
- Warranty
- 18 months
