Square D 8501XDO60V62 NEMA Control Relay, 10A at 600VAC, 6 NO Contacts, 115/125VDC Coil
Square D 8501XDO60V62 NEMA Control Relay, 10A at 600VAC, 6 NO Contacts, 115/125VDC Coil
- MPN: 8501XDO60V62
- UPC: 785901548751
- PPN: SCH-8501XDO60V62
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$457.83/ EA
Description

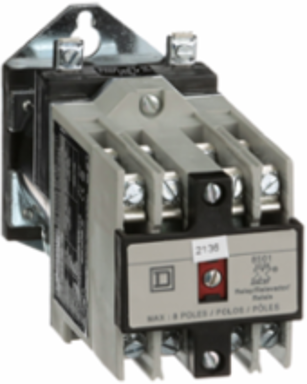

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay is supplied with six 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The six plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pressure wire connectors so wires can be easily terminated. 18 to 12 AWG copper wire can be used with this relay. Relay has a 115/125 VDC replaceable coil. Relay is 3.56 inches tall, 2.23 inches wide and 6.37 inches deep. Relay is UL listed and CSA certified.
Specifications
Environment
- Product Certifications
- UL listed file E78403 CCN NKCR || CSA LR60905 class 3211 03
Ambient Air Temperature For Operation-40-160 °F
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1310013EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileENVEOLI1310013
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- [Uc] Control Circuit Voltage
- 115/125 V DC
- Height
- 3.56 in
- Mounting Support
- panel
- Electrical Connection
- screw clamp terminals
- Rated Breaking Capacity
- 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508
- Awg Gauge
- AWG 18...AWG 12 copper
- Tightening Torque
- control circuit 1.02-1.36 N.m screw terminals
- Inrush Power In W
- 18 W
[Icm] Rated Short-Circuit Making Capacity60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508
Control Circuit Voltage Limitsoperational 0.8...1.1 Uc DC
Hold-In Power Consumption In W18-18 W
Contacts Type And Composition6 NO 6 standard contact cartridges
Operating Time37 ms - pick-up || 21 ms - drop-out
Width2.23 in
Depth6.37 in
Specifications
- [In] Rated Current
- 10 A AC || 5 A DC
- Range Of Product
- 8501X
Relay Typecontrol
Product Or Component Typerelay
