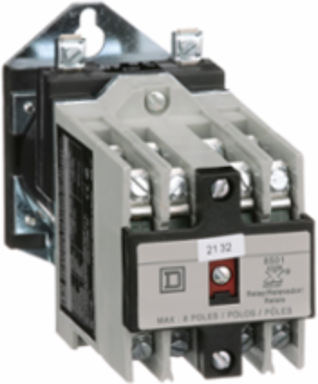

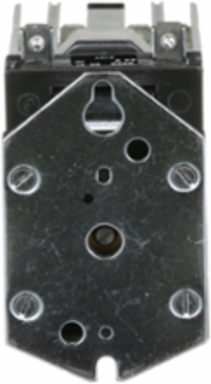

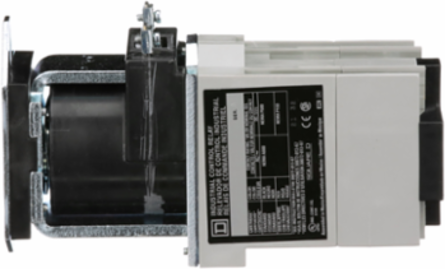

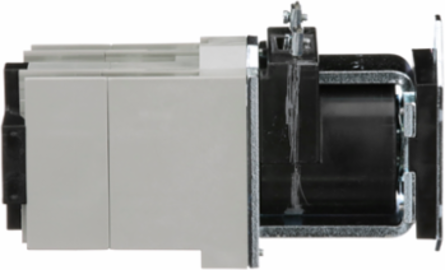

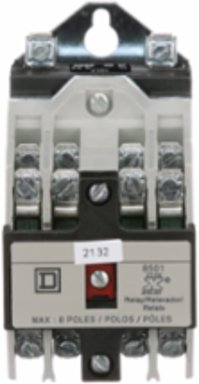

Square D 8501XDO80V62 NEMA Control Relay, 10A at 600VAC, 8 NO Contacts, 115/125V DC Coil
- MPN: 8501XDO80V62
- UPC: 785901548775
- PPN: SCH-8501XDO80V62
CAD
$524.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has contacts with a 10 ampere resistive current rating at 600 VAC. The contacts also have an A600 inductive contact rating. This relay is supplied with eight 8501XC1 contact cartridges. The contact cartridges are installed as normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The eight plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Contacts are supplied with pressure wire connectors so wires can be easily terminated. 18 to 12 AWG copper wire can be used with this relay. Relay has a 115/125 VDC replaceable coil. Relay is 3.56 inches tall, 2.23 inches wide and 6.37 inches deep. Relay is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth6.37 in
Complementary Attributes
- Rated Breaking Capacity
- 6 A 120 V AC inductive control circuit UL 5080.8 A 250 V DC resistive control circuit UL 5083 A 240 V AC inductive control circuit UL 5081.5 A 480 V AC inductive control circuit UL 5081.2 A 600 V AC inductive control circuit UL 50810 A <= 600 V AC resistive control circuit UL 5081.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508
- Line Rated Current
- 10 A AC5 A DC
Control Circuit Voltage Limitsoperational 0.8...1.1 Uc DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CSA LR60905 class 3211 03, UL listed file E78403 CCN NKCR
- Carbon Footprint Of The Distribution Phase [A4]
- 0.21942470114170584, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.42825625251846877, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 172 kg CO2 eq., 171.93
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Use Carbon Footprint
- 171.93
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Type And Composition
- 8 NO 8 standard contact cartridges
- Inrush Power In W
- 18 W
- Operating Time
- 37 ms - pick-up21 ms - drop-out
- Product Or Component Type
- relay
- Relay Type
- control
- Software Version
- v5.9.4
- Tightening Torque
- control circuit 1.02-1.36 N.m screw terminals
- Pep Code
- ENVPEP1310013EN
- Pep Verification Date
- 2024-06-02
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 3.56 in
- [Uc] Control Circuit Voltage
- 115/125 V DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 171.75
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 3662.9
- Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]
- 2.3127
- Marine Aquatic Eutrophication (Kg Of N Equiv) Operational Energy Use [B6]
- 0.1082
- Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
- 1.2721
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 487.2
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 487.2
- Customs Code
- 8536490080
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
[Icm] Rated Short-circuit Making Capacity60 A 120 V AC inductive control circuit UL 5080.8 A 250 V DC resistive control circuit UL 50830 A 240 V AC inductive control circuit UL 50815 A 480 V AC inductive control circuit UL 50812 A 600 V AC inductive control circuit UL 50810 A <= 600 V AC resistive control circuit UL 5081.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 2.9462479516453994
Carbon Footprint Of The Manufacturing Phase [A1 To A3]10 kg CO2 eq., 10.318854801880455
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1409020EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg Gauge18 AWG...12 AWG copper
Electrical Connectionscrew clamp terminals
Mounting Supportpanel
Product AvailabilityStock - Normally stocked in distribution facility
Range Of Product8501X
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint186 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe product is an electrically operated switch which enables current to flow through it on one circuit and can switch a current on and off on a second circuit.This relay has contacts with a 10 ampere resistive current rating at 600 VAC and it has life span of 10 years with power consumption of 18.36W with 20% use rate and adhering to international standards UL & CSA.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; MX
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %70
Width Nominal2.23 in
Hold-in Power Consumption In W18-18 W
Package Weight(Lbs)1.678 kg
Warranty (In Months)18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]171.93
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]2047.3
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]147.05
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]25.418
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]4150.1
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]3662.9
Water Use (M3 Eq) Operational Energy Use [B6]6.1736
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-160 °F, -40-160 °F
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1409020EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1310013EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint185.84278370718604
Environmental DisclosureENVPEP1310013EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-06-02
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- relay
Range Of Product8501X
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
