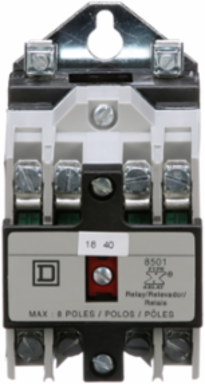

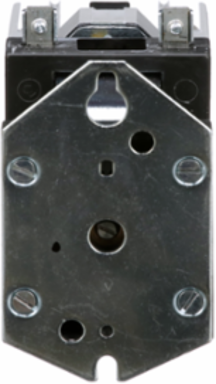

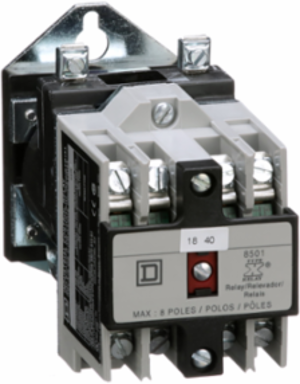

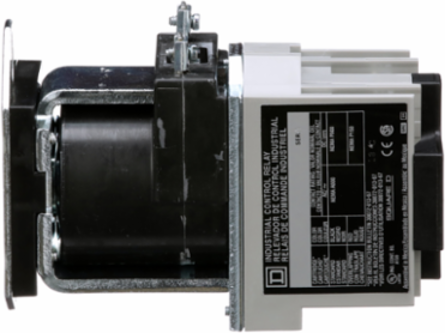

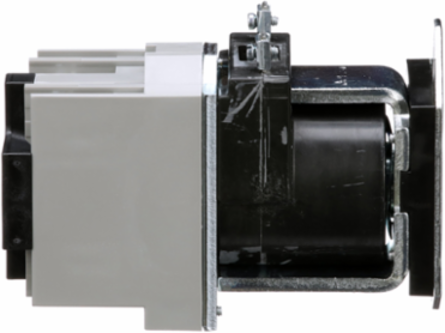

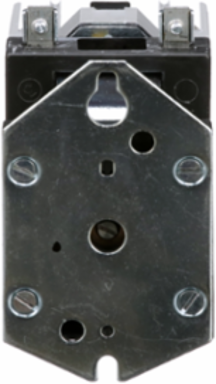

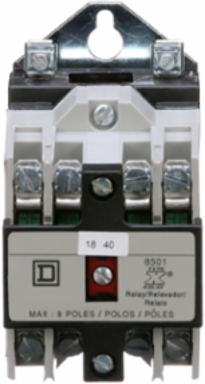

Square D 8501XDO20V66 NEMA Control Relay, 10A 600 VAC, 2 NO Contacts, 230-250 VDC Coil
- MPN: 8501XDO20V66
- UPC: 785901537458
- PPN: SCH-8501XDO20V66
CAD
$339.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth5.17 in
Complementary Attributes
- Rated Breaking Capacity
- 6 A 120 V AC inductive control circuit UL 5080.8 A 250 V DC resistive control circuit UL 5083 A 240 V AC inductive control circuit UL 5081.5 A 480 V AC inductive control circuit UL 5081.2 A 600 V AC inductive control circuit UL 50810 A <= 600 V AC resistive control circuit UL 5081.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508
- Line Rated Current
- 10 A AC5 A DC
Control Circuit Voltage Limitsoperational 0.8...1.1 Uc DC
Important Information Attributes
- Certificate Agency
- CSA LR60905 class 3211 03, UL listed file E78403 CCN NKCR
- Carbon Footprint Of The Distribution Phase [A4]
- 0.19693301544660843, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.38435871054398923, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 170 kg CO2 eq., 170.2444117647059
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI1409020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Awg Gauge
- 18 AWG...12 AWG copper
- Electrical Connection
- screw clamp terminals
- Mounting Support
- panel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- 8501X
- Returnability
- No
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 183 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The product is an electrically operated switch which enables current to flow through it on one circuit and can switch a current on and off on a second circuit.This relay has contacts with a 10 ampere resistive current rating at 600 VAC and it has life span of 10 years with power consumption of 18.36W with 20% use rate and adhering to international standards UL & CSA.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 318.5136
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 3.56 in
- [Uc] Control Circuit Voltage
- 230/250 V DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490080
[Icm] Rated Short-circuit Making Capacity60 A 120 V AC inductive control circuit UL 5080.8 A 250 V DC resistive control circuit UL 50830 A 240 V AC inductive control circuit UL 50815 A 480 V AC inductive control circuit UL 50812 A 600 V AC inductive control circuit UL 50810 A <= 600 V AC resistive control circuit UL 5081.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 2.644248757555406
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 9.261141437206177
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Contacts Type And Composition2 NO 2 standard contact cartridges
Inrush Power In W18 W
Operating Time37 ms - pick-up21 ms - drop-out
Product Or Component Typerelay
Relay Typecontrol
Software Versionv5.9.4
Tightening Torquecontrol circuit 1.02-1.36 N.m screw terminals
Pep CodeENVPEP1310013EN
Pep Verification Date2024-06-02
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; MX
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential In %70
Width Nominal2.23 in
Hold-in Power Consumption In W18-18 W
Package Weight(Lbs)1.506 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-160 °F, -40-160 °F
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1409020EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1310013EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint182.73109368545806
Environmental DisclosureENVPEP1310013EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-06-02
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- relay
Range Of Product8501X
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
