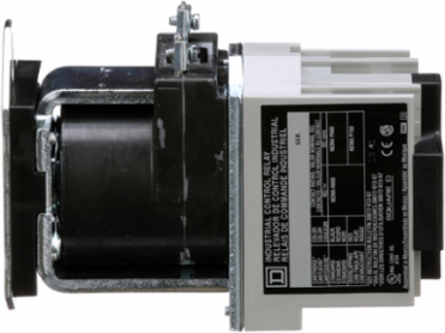

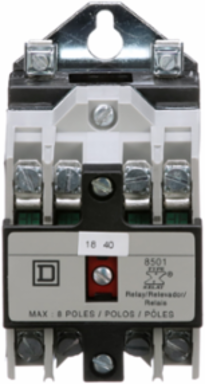

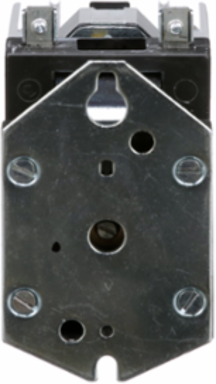

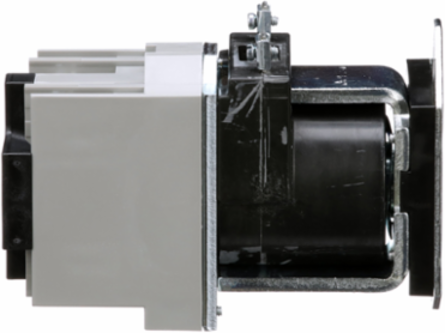

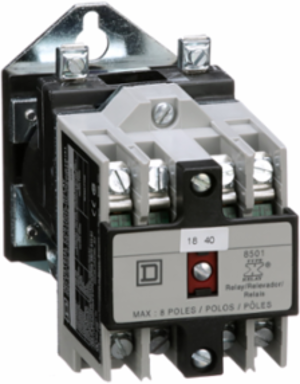

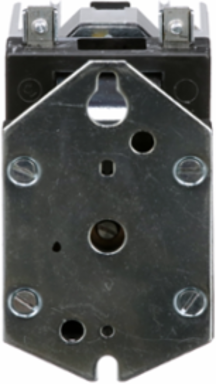

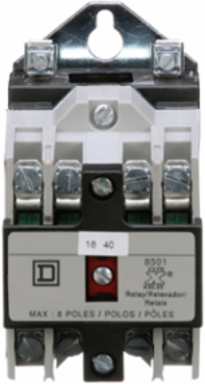

Square D 8501XDO40V56 NEMA Control Relay, 10A at 600 VAC, 48 VDC Coil, 4 NO Contacts
- MPN: 8501XDO40V56
- UPC: 785901017806
- PPN: SCH-8501XDO40V56
CAD
$397.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth5.17 in
Complementary Attributes
- Rated Breaking Capacity
- 6 A 120 V AC inductive control circuit UL 5080.8 A 250 V DC resistive control circuit UL 5083 A 240 V AC inductive control circuit UL 5081.5 A 480 V AC inductive control circuit UL 5081.2 A 600 V AC inductive control circuit UL 50810 A <= 600 V AC resistive control circuit UL 5081.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508
- Line Rated Current
- 10 A AC5 A DC
Control Circuit Voltage Limitsoperational 0.8...1.1 Uc DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CSA LR60905 class 3211 03, UL listed file E78403 CCN NKCR
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Type And Composition
- 4 NO 4 standard contact cartridges
- Inrush Power In W
- 18 W
- Operating Time
- 37 ms - pick-up21 ms - drop-out
- Product Or Component Type
- relay
- Relay Type
- control
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP1310013EN
- Width Nominal
- 2.23 in
- Hold-in Power Consumption In W
- 18-18 W
- Package Weight(Lbs)
- 1.361 kg
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
[Icm] Rated Short-circuit Making Capacity60 A 120 V AC inductive control circuit UL 5080.8 A 250 V DC resistive control circuit UL 50830 A 240 V AC inductive control circuit UL 50815 A 480 V AC inductive control circuit UL 50812 A 600 V AC inductive control circuit UL 50810 A <= 600 V AC resistive control circuit UL 5081.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 5080.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI1409020EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg Gauge18 AWG...12 AWG copper
Electrical Connectionscrew clamp terminals
Mounting Supportpanel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of Product8501X
ReturnabilityYes
Tightening Torquecontrol circuit 1.02-1.36 N.m screw terminals
Height Nominal3.56 in
[Uc] Control Circuit Voltage48 V DC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490080
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-160 °F, -40-160 °F
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1310013EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI1409020EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1310013EN
General Attributes
- Product Or Component Type
- relay
Range Of Product8501X
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
