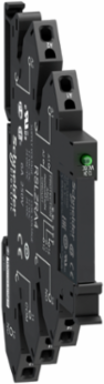

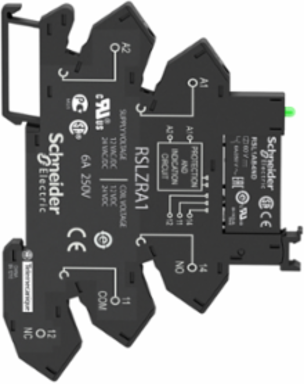

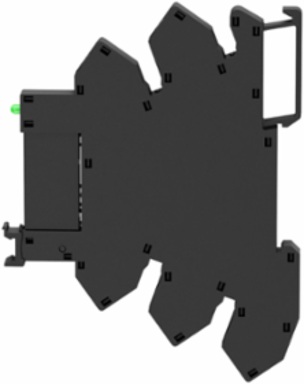

Schneider Electric RSL1PRBU Harmony Slim Interface Relay, 6A, SPDT, 24V AC/DC, 6mm Width

MPN: RSL1PRBU
PPN: SCH-RSL1PRBU
UNSPSC: 39122326

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$23.23

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony RSL slim, pre-assembled plug-in relay and socket features a 24VAC/DC coil control voltage. It includes one changeover contact (SPDT-single pole, double throw) with a current rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimmest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night.

Features

Help to reduce the size of enclosures
Provides economical solution for the implementation of many switching functions
One of the slimmest interface relays on the market, with 0.24in width
Easy installation and withdrawal the relay from its socket
Available as a single-referenced complete product (relay and socket)
Compatible with high breaking capacity or low-level current application requirements
Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, France, United States
Depth	101 mm

Weight	29 g

Complementary Attributes

Maximum Switching Capacity	1500 VA, 150 W
Control Circuit Type	AC/DC
Maximum Switching Voltage	277 V
Minimum Switching Current	100 mA
Ie Rated Operational Current	6 A 1 C/O AC-1/DC-1)IEC/UL
Uimp Rated Impulse Withstand Voltage	6 kV IEC

Uc Control Circuit Voltage	AC/DC, 24 V
Line Rated Current	6 A
Minimum Switching Capacity	120 mW
Minimum Switching Voltage	12 V
Ui Rated Insulation Voltage	250 V IEC277 V cUL

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Operating Rate	<= 72000 cycles/hour no-load, <= 72000 cycles/hour no-load, <= 360 cycles/hour under load, <= 360 cycles/hour under load<= 72000 cycles/hour no-load, <= 72000 cycles/hour no-load, <= 360 cycles/hour under load, <= 360 cycles/hour under load
Connections Terminals	spring terminals, spring terminals, 1 x 0.2...1 x 1.5 mm² 24 AWG...16 AWG) flexible with cable endspring terminals, 1 x 0.2...1 x 1.5 mm² 24 AWG...16 AWG) solid without cable end, spring terminals
Terminals Description Iso N°1	(A1-A2)CO, (11-12-14)OC, (A1-A2)CO, (11-12-14)OC
Carbon Footprint Of The End Of Life Phase C1 To C4	0.0627053188436503, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.3 kg CO2 eq., 0.27483067729713645
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Coil Consumption	0.17 W, DC
Clamping Force	10-40 N
Contact Operation	standard
Contacts Material	silver alloy (AgSnO2)
Control Type	without lockable test button
Electrical Durability	60000 cycles resistive, 6 A 250 V, AC-1
Load Current	6 A 250 V AC 0.5 mm mounting distance
Mechanical Durability	10000000 cycles
Operating Position	any position
Product Or Component Type	pre-assembled plug-in relay with socket
Range Of Product	Harmony Electromechanical Relays
Returnability	Yes
Sale Per Indivisible Quantity	10
Shape Of Pin	flat (PCB type)
Software Version	v6.3.0.1-4
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	3 kg CO2 eq.
Input Voltage 9 Input Voltage	24 V
Data Source	extrapolated product
Width Nominal	6.2 mm
Customs Code	8536698000
Drop Out Voltage Threshold	>= 0.05 Uc>= 0.05 Uc
Functional Unit Description	RSL Interface plug-in Relay has large choice of number of contacts for high rated current use.It helps to reduce the size of enclosures and increases machine reliability and you can mount nearly everywhere. One of the slimiest interface relay on the market with 6mm width and it can be installed nearly anywhere and this product is assembled with socket. Easy installation and withdrawal the relay from its socket. It is compatible with high breaking capacity or low-level current application requirements.
Functional Unit Unit	unit
Recyclability Potential In %	41

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Operating Time	5 ms reset, 12 ms
Certificate Agency	UL, CSA, GOST
Carbon Footprint Of The Distribution Phase A4	0.015185817897280726, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	kg CO2 eq., 0
Carbon Footprint Of The Use Phase B2 B3 B4 B6	2 kg CO2 eq., 2.425842263779134
Local Publishable Date	2026-08-10
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2506033EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2353
China Rohs In Scope	Yes
Phenolic Free Solution	Yes
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Resistance	3390 Ohm DC 23 °C +/- 10 %
Compatibility Code	RSL
Contact Terminal Arrangement	separate
Contacts Type And Composition	1 C/O
Dielectric Strength	1000 V AC between contacts4000 V AC between coil and contact
Fixing Mode	plastic compression spring
Marking	CE
Mounting Support	35 mm symmetrical DIN rail
Product Availability	Stock - Normally stocked in distribution facility
Protection Category	RT III
Relay Type	slim interface relay
Safety Reliability Data	B10d = 60000
Series Name	RSL series
Shock Resistance	10 gn 11 ms) in operation IEC 60068-2-275 gn 11 ms) not operating IEC 60068-2-27
Status Led	with
Test Levels	level A group mounting
Vibration Resistance	10 gn +/- 1 mm 10-150 Hz)10 cycles not operating IEC 60068-2-65 gn +/- 1 mm 10-150 Hz)10 cycles in operation IEC 60068-2-6
Database Version	2024-01
Height Nominal	78.6 mm
Nbr. Of Units In Pkg.	1
Ithe Conventional Enclosed Thermal Current	6 A -40-55 °C
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Carbon Footprint	2.7785640778172014
Circularity Profile	ENVEOLI2506033EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2506033EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Toxic Free	Yes
Ambient Air Temperature For Operation	-40-55 °C-40-55 °C
Environmental Disclosure	ENVPEP2506033EN
Ip Degree Of Protection	IP40 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-06-30
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
