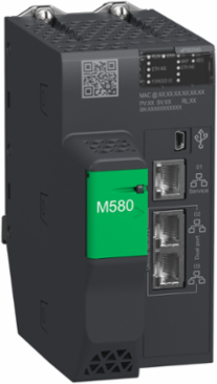

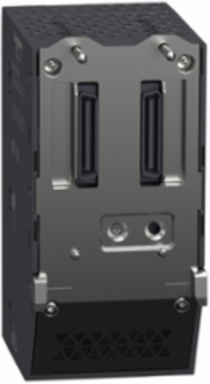

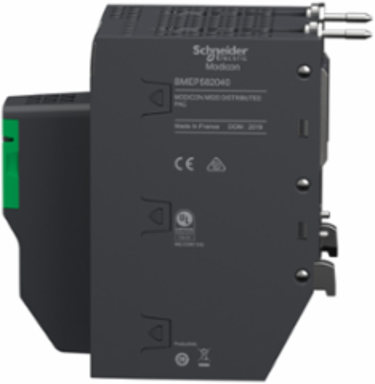

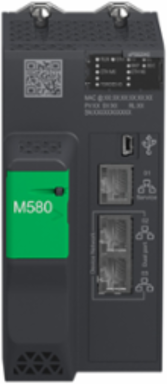

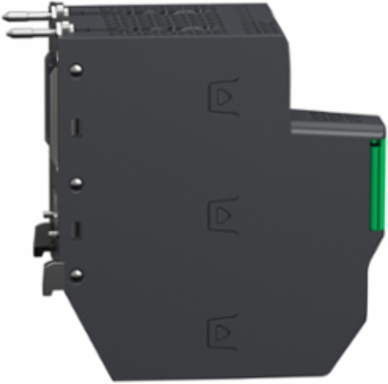

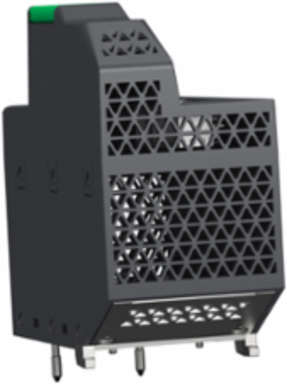

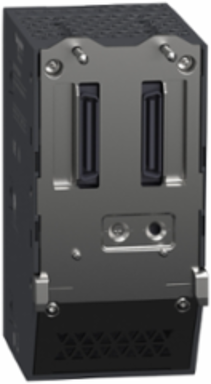

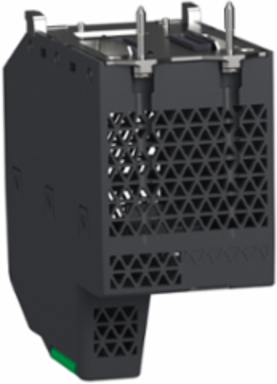

Schneider Electric BMEP582040 Modicon M580 Processor Module, 8MB RAM, IP20, 72 Channels, 8 Remote I/O Racks
- MPN: BMEP582040
- PPN: SCH-BMEP582040
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This processor module offers a maximum of 4 rack configuration and 72 application specific channels. It is a processor module with a current consumption of 295mA at 24V DC. It supports 2048 discrete, 512 analogue local I/O channels and 64 distributed equipment. It is integrated with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for connections. It offers 600000 hours of MTBF. It has 8 - 2 racks per remote drop for I/O station. It has an integrated RAM of 8MB for program, 768kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, UL, RCM, CSA, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, United States |
|---|
| Compliance | |TAA Compliant | BAA Compliant via COTS |
|---|
Communications & Management Attributes
| Communication Service | DIO scanner, RIO scanner |
|---|
| Communication Module Processor Capacity | 2 Ethernet communication module16 AS-Interface module |
|---|
Complementary Attributes
| Integrated Connection Type | 1 Ethernet TCP/IP service port2 Ethernet TCP/IP device network, USB type mini B |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Application Structure | 64 event tasks, 2 auxiliary tasks, 1 cyclic/periodic master task, 1 periodic fast task |
| Environmental Characteristic | safety, corrosion resistance, salt mist, dust resistanthazardous location class I division 2 |
| Certificate Agency | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Carbon Footprint Of The Distribution Phase [A4] | 0.10993, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0031143, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 181 kg CO2 eq., 180.84 |
| Local Publishable Date | 2026-04-04 |
| Stocking Flag | N |
| Device Type | PLC System - PLC CPU |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Use Carbon Footprint | 180.84 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Control Channels | programmable loops |
| Marking | CE |
| Mtbf Reliability | 775000 H |
| Number Of Distributed Equipment | 64 |
| Number Of Racks | 4 |
| Product Or Component Type | processor module |
| Returnability | Yes |
| Software Version | EIME v5.8.1 |
| Sustainable Packaging | No |
| Vibration Resistance | 3 gn |
| Database Version | 2020-12 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: France |
| Energy Model - Use [B6] | Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH |
| Recyclability Potential In % | 68 |
| Discrete I/O Processor Capacity | 2048 I/O |
| Carbon Footprint (Kg Co2 Eq Total Life Cycle) | 243.74 |
| Package Weight(Lbs) | 874.000 g |
| Warranty (In Months) | 18 |
| Air Pollution (M3) Manufacturing [A1-a3] | 5741 |
| Air Pollution (M3) Installation [A5] | 0.1242 |
| Air Pollution (M3) End Of Life [C1-c4] | 9.9536 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 634.3 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 2114.6 |
| Global Warming (Kg.Equivalent.Co2) Total Life Cycle | 243.74 |
| Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] | 180.84 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 195.46 |
| Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4] | 1.1985 |
| Net Use Of Fresh Water (M3) Operational Energy Use [B6] | 2165.2 |
| Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 16.758 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 5159.2 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4] | 1.5522 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4] | 1.3921 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 742.57 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 5133.8 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 720.08 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 693.07 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 6.076 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 709.49 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 4440.7 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 720.08 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 693.07 |
| Water Pollution (M3) Manufacturing [A1-a3] | 5100.3 |
| Water Pollution (M3) Operational Energy Use [B6] | 8919.5 |
| Customs Code | 8537109160 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Cybersecurity | Achilles certified, DoS prevention, IPSec, SNMP logging, Syslog protocol support, transport layer security, audit trail, embedded firewall, firmware signature, password protection, port hardening, secure communication (HTTPS), security log |
| Status Led | 1 LED (Green) processor running (RUN)1 LED (Red) processor or system fault (ERR), 1 LED (Red) I/O module fault (I/O), 1 LED (Green) download in progress (DL), 1 LED (Red) memory card or CPU flash fault (BACKUP)1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (Green) processor in safety mode (SRUN), 1 LED (Green) processor in maintenance mode (SMOD), 1 LED (Red) I/O values overrided by user (FORCED IO) |
| Application Specific I/O | serial link, counter, accurate time stamping, HART, motion control, SSI encoder |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.4 kg CO2 eq., 0.35987 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 62 kg CO2 eq., 62.43 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Manufacturing Carbon Footprint | 62.43 |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1312016EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1949 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Checks | process control |
| Current Consumption | 270 mA 24 V DC |
| Memory Description | expandable flash, 4 GB data storageintegrated RAM, 10 kB system memoryintegrated RAM, 8 MB program processintegrated RAM, 768 kB data processintegrated RAM, 2 MB program safetyintegrated RAM, 512 KB data safety |
| Number Of Application Specific Channel | 72 |
| Number Of Instructions Per Ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic40 Kinst/ms 100 % Boolean |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon M580 |
| Shock Resistance | 15 gn |
| Supply | internal power supply via rack |
| Total Lifecycle Carbon Footprint | 244 kg CO2 eq. |
| Pep Code | ENVPEP1312016EN |
| Pep Verification Date | 2022-12-01 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | The Modicon M580 ePAC module provides cutting-edge features and high-end performances for small to large process automation for 10 years with a 100% use rate. Typical electrical power is 7,08 W (295 mA at 24 V DC) |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 558.1872 |
| Energy Model - Installation [A5] | Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH |
| Energy Model - End Of Life [C1-c4] | Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH |
| Analogue I/O Processor Capacity | 512 I/O |
| Number Of Remote I/O Station | 8 - 2 remote drop |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Total Life Cycle | 18373 |
| Air Pollution (M3) Distribution [A4] | 4.6762 |
| Air Pollution (M3) Operational Energy Use [B6] | 12617 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle | 2751.6 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4] | 1.5444 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4] | 1.134 |
| Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3] | 62.43 |
| Hazardous Waste Disposed Of (Kg) Total Life Cycle | 200.17 |
| Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 3.5152 |
| Net Use Of Fresh Water (M3) Total Life Cycle | 2165.8 |
| Non-hazardous Waste Disposed Of (Kg) Total Life Cycle | 215.77 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 199 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 715.56 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 4440.7 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle | 5879.4 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4] | 1.5543 |
| Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4] | 1.3935 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 27.009 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 6.076 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 5153.2 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4] | 1.5522 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4] | 1.3921 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 27.009 |
| Water Pollution (M3) Total Life Cycle | 14056 |
| Water Pollution (M3) Distribution [A4] | 18.077 |
| Water Pollution (M3) End Of Life [C1-c4] | 17.848 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 243.74 |
| Circularity Profile | ENVEOLI1312016EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m)2000...5000 m with derating factor |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Pep Verification Date | 2022-12-01 |
| Type Of Verification For The Pep | Independent external review |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-60 °C |
| Environmental Disclosure | ENVPEP1312016EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1312016EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Product Or Component Type | processor module |
|---|
| Range Of Product | Modicon M580 |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|
| ETIM 9 | EC000236 |
|---|
