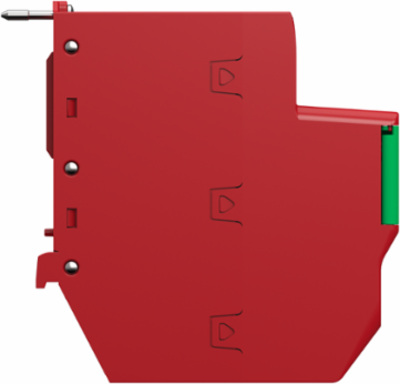

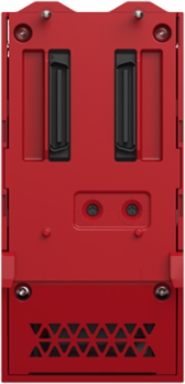

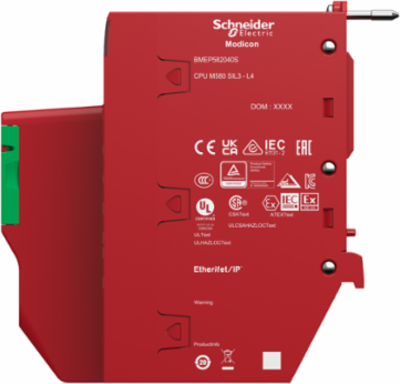

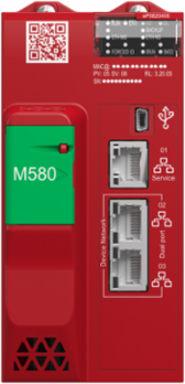

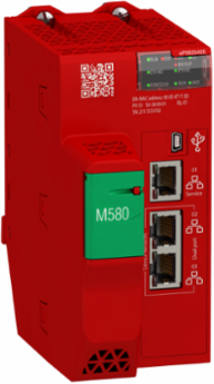

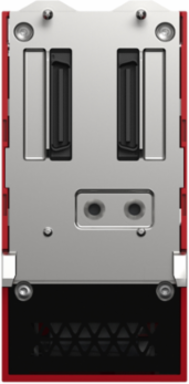

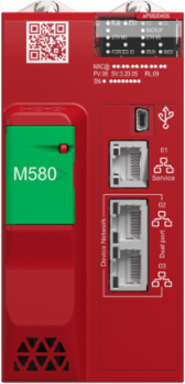

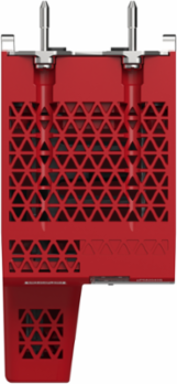

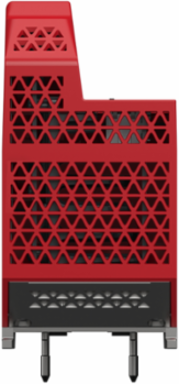

Schneider Electric BMEP582040S Modicon M580 Safety Processor 8MB, 61 Ethernet Devices, SIL 3

MPN: BMEP582040S
PPN: SCH-BMEP582040S

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Modicon M580 Safety Processor by Schneider Electric is designed to enhance industrial automation systems with its robust performance and advanced safety features. Equipped with 8MB of memory, it effectively manages data for intricate operations while facilitating connectivity for up to 61 Ethernet devices, ensuring seamless communication across your network. With a Safety Integrity Level (SIL) 3 certification, this processor meets stringent safety standards, providing peace of mind in critical applications where reliability and performance are paramount. This solution represents a pivotal advancement for industries seeking to optimize their safety and efficiency in automation processes.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Indonesia, Philippines, Sweden, United States

Communications & Management Attributes

Communication Service	DIO scanner, RIO scanner

Communication Module Processor Capacity	2 Ethernet communication module16 AS-Interface module

Complementary Attributes

Integrated Connection Type	1 Ethernet TCP/IP service port2 Ethernet TCP/IP device network, USB type mini B

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Application Structure	128 event tasks, 2 auxiliary tasks, 1 cyclic/periodic master task, 1 periodic fast task, 1 periodic safe task
Cybersecurity	Achilles certified, DoS prevention, IPSec, SNMP logging, Syslog protocol support, audit trail, embedded firewall, firmware signature, password protection, port hardening, security log
Safety Level	SIL 3 IEC 61508, SIL 3 IEC 61511SILCL 3 IEC 62061, SILCL 3 ISO 13849-1 category 4SIL 4 EN 50126, SIL 4 EN 50128, SIL 4 EN 50129
Certificate Agency	CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22, TÜV
Carbon Footprint Of The Distribution Phase [A4]	0.1136717488, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0032203032, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	181 kg CO2 eq., 180.84
Local Publishable Date	2026-04-04
Stocking Flag	N
Device Type	PLC System - PLC CPU
Traceability	Yes
Average Life Duration	20 year(s)
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1312016EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1949
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Advanced
Market Segmentation	Industrial
Control Channels	programmable loops
Impregnation Material	conformal coated
Memory Description	expandable flash, 4 GB data storageintegrated RAM, 10 kB system memoryintegrated RAM, 8 MB program processintegrated RAM, 768 kB data processintegrated RAM, 2 MB program safetyintegrated RAM, 512 KB data safety
Number Of Application Specific Channel	72
Number Of Instructions Per Ms	30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic40 Kinst/ms 100 % Boolean
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	conformal coating
Returnability	Yes
Software Version	EIME v5.8.1
Sustainable Packaging	No
Vibration Resistance	3 gn
Database Version	2020-12
Pcr Version	PCR-ed3-EN-2015 04 02
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: France
Energy Model - Use [B6]	Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
Analogue I/O Processor Capacity	512 I/O
Discrete I/O Processor Capacity	2048 I/O
Nbr. Of Units In Pkg.	1
Take-back	No
Air Pollution (M3) Operational Energy Use [B6]	12617
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]	180.84
Net Use Of Fresh Water (M3) Operational Energy Use [B6]	2165.2
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	4440.7
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	693.07
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	693.07
Customs Code	8537109160

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Checks	process control, safety control
Environmental Characteristic	hazardous location class I division 2, gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3
Status Led	1 LED (Green) processor running (RUN)1 LED (Red) processor or system fault (ERR), 1 LED (Red) I/O module fault (I/O), 1 LED (Green) download in progress (DL), 1 LED (Red) memory card or CPU flash fault (BACKUP)1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (green/red) Eth NS (Ethernet network status), 1 LED (Green) processor in safety mode (SRUN), 1 LED (Green) processor in maintenance mode (SMOD), 1 LED (Red) I/O values overrided by user (FORCED IO)
Application Specific I/O	counter, motion control, SSI encoder, accurate time stamping, serial link, HART
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.4 kg CO2 eq., 0.3721190962
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	65 kg CO2 eq., 64.5549647887
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	Yes
Field Service Division	IDIBS
Use Carbon Footprint	180.84
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Current Consumption	295 mA 24 V DC
Marking	CE
Mtbf Reliability	775000 H
Number Of Distributed Equipment	64
Number Of Racks	4
Product Or Component Type	processor module
Range Of Product	Modicon M580
Shock Resistance	15 gn
Supply	internal power supply via rack
Total Lifecycle Carbon Footprint	246 kg CO2 eq.
Pep Code	ENVPEP1312016EN
Pep Verification Date	2022-12-01
Type Of Verification For The Pep	Independent external review
Functional-unit Description	The Modicon M580 ePAC module provides cutting-edge features and high-end performances for small to large process automation for 10 years with a 100% use rate. Typical electrical power is 7,08 W (295 mA at 24 V DC)
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	558.1872
Energy Model - Installation [A5]	Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
Energy Model - End Of Life [C1-c4]	Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
Discrete I/O Number	16
Number Of Remote I/O Station	8 - 2 remote drop
Package Weight(Lbs)	876.000 g
Warranty (In Months)	18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	2114.6
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	3.5152
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	199
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	5133.8
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	4440.7
Water Pollution (M3) Operational Energy Use [B6]	8919.5

Environment Attributes Main

Ambient Air Temperature For Operation	-25-60 °C, -25-60 °C
Directives	2014/30/EU - electromagnetic compatibility, 2006/42/EC - machinery, 2014/34/EU - ATEX directive
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1312016EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)2000...5000 m with derating factor
Packaging Without Single Use Plastic	No
Relative Humidity	5-95 % 55-55 °C without condensation
Pep Verification Date	2022-12-01
Type Of Verification For The Pep	Independent external review

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	245.883975937
Environmental Disclosure	ENVPEP1312016EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1312016EN
Pcr Version	PCR-ed3-EN-2015 04 02
