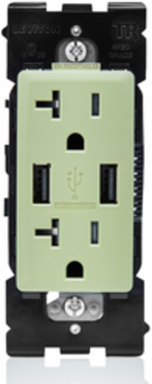

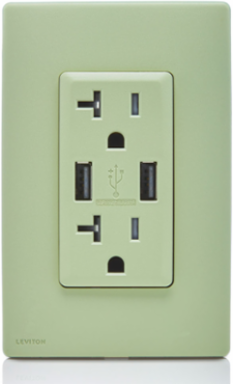

Leviton RUAA2-PS RENU® 3.6 USB Type-A/20 Amp Tamper-Resistant Outlet/Receptacle, Prairie Sage
- MPN: RUAA2-PS
- UPC: 078477807514
- PPN: LEV-RUAA2-PS
CAD
$56.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Combination Duplex Receptacle/Outlet and USB Charger. 20 Amp, 125 Volt, Renu Tamper-Resistant Receptacle/Outlet, NEMA 5-15R. 3.6 Amps, 5VDC, 2.0 Type A USB Chargers. Grounding, Side Wired & Back Wired – Prairie Sage
Features
- Smart chip recognizes and optimizes the charging requirements of individual devices
- 3.6A charging capacity
- Two high-powered charging ports
- Two 15A or 20A Tamper-Resistant receptacles for improved safety
- USB ports are positioned vertically providing more space for maneuvering and reducing stress on USB cables
- Compatible with USB 2.0 devices
- Fits in a standard wallbox
- Back and side wired for easy installation
- Can replace existing outlets Can be multi-ganged with Renu devices
- Available in 20 popular colors to match any décor
- Once installed, face easily snaps OFF and ON. Change color by ordering the RKAA1 or RKAA2 color change kit
- Uses only Renu Wallplates (sold separately)
- SMART - Built-in smart chip recognizes the individual device’s charging requirement to optimize the charge
- POWERFUL – Two high-powered charging ports with 3.6A of charging power
- CONVENIENT – No more searching for charging adapters! Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs
- EASY - Matte finish available in 20 popular colors that works with Leviton Renu wallplate REWP1/REWP2/REWP3/REWP4
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- FCC Part 15
- Class B
- NOM
- 057
ListedcCSAus
Warranty5-Year Limited
Material Specifications
- Body Material
- Thermoplastic
- Product ID
- Stamped on Strap
- Terminal Accom.
- 14-12 AWG
- Termination
- Back & Side
Cover MaterialThermoplastic
Strap MaterialSteel
Terminal IDBrass-Hot Black-Hot White-Neutral Green-Gnd
Torque Range14 – 18 in.-lbs
Mechanical Specifications
- Color
- Prairie Sage
- Device Type
- USB Duplex Outlet
- NEMA
- 5-20R
- Product ID
- Stamped on Strap
- Terminal ID
- Brass-Hot Black-Hot White-Neutral Green-Gnd
- Torque Range
- 14 – 18 in.-lbs
Color Change KitRKAA2
GradeResidential
Product FamilyRenu
Terminal Accom.14-12 AWG
TerminationBack & Side
Product Features
- Brand
- Renu
- Voltage
- 125 VAC
TypeType A/A Duplex Receptacle
WallplateNot Included
Environmental Specifications
- Body Material
- Thermoplastic
- Flammability
- Rated V-0 per UL 94
- Strap Material
- Steel
Cover MaterialThermoplastic
Operating Temperature-10°C to 40°C
Electrical Specifications
- Amperage
- 20 A
- Grounding
- Self-Grounding Clip and Green Ground Screw
- Operating Temperature
- -10°C to 40°C
FlammabilityRated V-0 per UL 94
Horsepower Rating15A-1/2 HP
Ratings15A-125V
