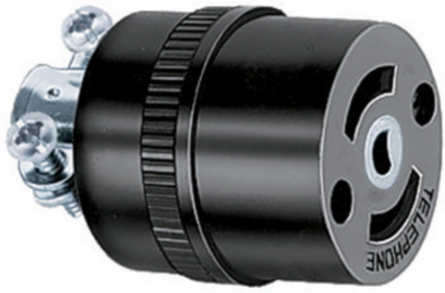

Hubbell Wiring Device-Kellems PH6624 Locking Marine Connector Body, 3-Wire Grounding, Corrosion Resistant
- MPN: PH6624
- UPC: 783585876900
- PPN: HBL-PH6624
- UNSPSC: 39121421
CAD
$75.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Replacement Connector Body, Locking Marine Connector, Telephone
Features
- Replacement Connector Body
- Locking Marine Connector
- Telephone
- Corrosion Resistant
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Application | Marine Wiring Devices |
| Conductor Range | #16 AWG to #14 AWG |
| Insulation | Insulated Body |
| Number of Conductors | 3-Wire Grounding |
| Special Features | Corrosion Resistant |
| Voltage Rating | Telephone Signal kV |
| General Literature Asset 1 Display Text | Hubbell Marine Full Line Catalog |
| Display Size | Standard |
| Number Of Conductors | 3-Wire Grounding |
| Class Code | A32 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A32A320 |
| Material | Composite |
| BOX SIZE | 4.685x15.745x9.305 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585876900 |
| Each - Pack Description | Each |
| NAICS Code | 335931A102 |
| Width | 5.250 in |
|---|---|
| Color | Black |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| NEMA Rating | Non-NEMA |
| Number of Poles | 2-Pole |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Weight | 0.1 lb. |
| Connectivity | Screw Terminals |
| Nema Rating | Non-NEMA |
| Number Of Poles | 2-Pole |
| Description - Invoice | LKG MARINE CONN, TELEPHONE |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Material - Mounting Hardware | Cord Mounted |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.600 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Lowest Level UOM | Each |
