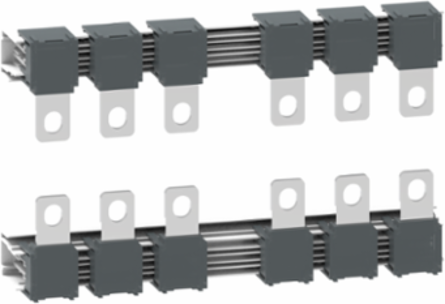

Schneider Electric LA9G3760 TeSys Giga Reversing Connection Bar for 3 Poles, Up to 225 A

MPN: LA9G3760
PPN: SCH-LA9G3760

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1090.40/ EA

Qty:

Loading add to cart quantity...

Description

These accessories are reverser bars for TeSys Giga 115-225 contactor. It is used to 3 Poles electrical circuit. These terminal extensions can be attached to the standard terminals. The rated current is up to 225 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Specifications

Environment

Ambient Air Temperature For Operation: -40-60 °C

Standards: EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || GB/T 14048.4

Ip Degree Of Protection: IP20 IEC 60529

Ambient Air Temperature For Storage-60-80 °C

Product CertificationsABS || BV || CB || CCC || CCS || cUL || CE || DNV-GL || EAC || KC || LROS (Lloyds register of shipping) || RCM || RINA || RMRoS

Operating Altitude3000 m without derating || 5000 m with derating factor

Complementary

Height: 45 mm

Poles Description: 3P

Depth: 232.6 mm

Net Weight: 1.0 kg

Range CompatibilityTeSys Giga

Width62.1 mm

Product CompatibilityLC1G115...225 || LC1G205...245

Offer Sustainability

China Rohs Regulation: X

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2105013

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileENVEOLI2105013

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectiveCompliant with Exemptions

Halogen Content PerformanceHalogen free plastic parts product

Specifications

Accessory / Separate Part Category: connection accessory

Electrical Circuit Type: reversing

Device Short Name: LA9G

Quantity Per Setset of 1

Product Or Component Typeset of connections

RangeTeSys
