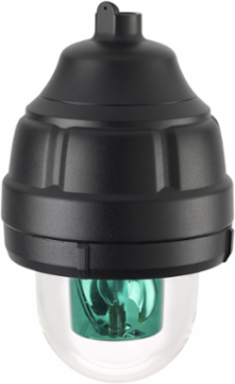

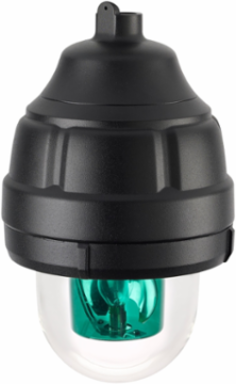

Federal Signal 121X-120G-MOD Rotating LED, CID1, 120VAC, Modular Mount, Green
- MPN: 121X-120G-MOD
- UPC: 782979232841
- PPN: FDS-121X-120G-MOD
- UNSPSC: 39111706
CAD
$3763.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Model 121X is an explosion-proof LED warning light available in 24 Vdc or 120 Vac and five colors. It features a parabolic reflector that rotates around a 360-degree LED, providing 60 revolutions per minute in a horizontal plane.Model 121X can be combined with a pendant (PMXC-SB), ceiling (CMXC-SB), or wall (WMXC-SB) mount bracket and installed in any configuration – including dome up. Installation is simple: with the mounting box in place, the fixture is threaded onto the box, making the electrical connection. This corrosion-resistant unit's copper-free aluminum housing is finished with a powder coat.Federal Signal's rugged 121X LED warning light is designed for explosion-proof applications and corrosive environments.It is ideal for use in indoor or outdoor applications such as oil rigs, mines, refineries and chemical plants.
Features
- Available in 24 Vdc & 120 Vac
- Five lens colors: Amber, Blue, Clear, Green and Red
- 3/4-inch NPT pendant, ceiling and wall mount options (required: sold separately)
- Approved for mounting in any manner - including dome up
- Optional dome guard for added protection
- Type 4X, IP66 enclosure
- IP69K compliant
- Marine Rated
- UL and cUL Listed for Class I, Division 1, Groups C and D; Class II, Division 1, Groups E, F and G; Class III
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Depth
- 8.82 in
- Body Color
- Black
- Certification Listing
- Marine, UL, cUL
- Flashes Per Minute
- 60
- Lens Color
- Green
- Operating Temp.
- -67˚ to +150˚F (-55˚ to +65˚C)
- Required Mount
- black-mounting-kits
- Visual Signals Operating Voltage
- 120VAC
- Enclosure Rating
- IP66, IP69K, Type 4X
- Product Life Cycle Status
- Completed
Height11.37 in
Weight13.9 lbs
Candela Power Peak1000
Flash Pattern TypeRotating
AvailabilityAvailable in 4-6 Weeks
Operating Current Amps0.075
Operating Voltage120 Vac
Visual Signals Lens ColorGreen
Environmental RatingExplosion-Proof
Lead TimeAvailable in 4-6 Weeks
