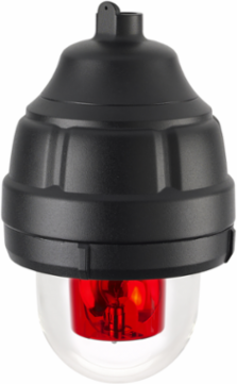

Federal Signal 121X-120R-MOD Rotating LED, CID1, 120VAC, Modular Mount, Red
- MPN: 121X-120R-MOD
- UPC: 782979232858
- PPN: FDS-121X-120R-MOD
- UNSPSC: 39111706
CAD
$3763.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Model 121X is an explosion-proof LED warning light available in 24VDC or 120VAC and five colors. It features a parabolic reflector that rotates around a 360-degree LED, providing 60 revolutions per minute in a horizontal plane. Model 121X can be combined with a pendant (PMXC-SB), ceiling (CMXC-SB) or wall (WMXC-SB) mount bracket and installed in any configuration – including dome up. Installation is simple – with the mounting box in place, the fixture is threaded onto the box, making the electrical connection. This corrosion-resistant unit's copper-free aluminum housing is finished with a powder coat. Federal Signal's rugged 121X LED warning light is designed for explosion-proof applications and corrosive environments. It is ideal for use in indoor or outdoor applications such as oil rigs, mines, refineries, and chemical plants.
Features
- Available in 24VDC & 120VAC
- Five lens colors: Amber, Blue, Clear, Green and Red
- 3/4" NPT pendant, ceiling and wall mount options (required: sold separately)
- Approved for mounting in any manner-including dome up
- Optional dome guard
- Type 4X, IP66 enclosure
- IP69K compliant
- Marine Rated
- UL and cUL Listed for Class I, Division 1, Groups C and D; Class II, Division 1, Groups E, F and G; Class III
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Body Color
- Black
- Certification Listing
- Marine, UL, cUL
- Flashes Per Minute
- 60
- Lens Color
- Red
- Required Mount
- black-mounting-kits
- Visual Signals Operating Voltage
- 120VAC
- Height
- 11.37 in, 28.8798 cm
Weight13.9 lbs
Candela Power Peak1000
Flash Pattern TypeRotating
AvailabilityContact Us for Availability
Operating Temp.-67˚ to +150˚F (-55˚ to +65˚C)
Visual Signals Lens ColorRed
Depth11.37 in, 28.8798 cm
