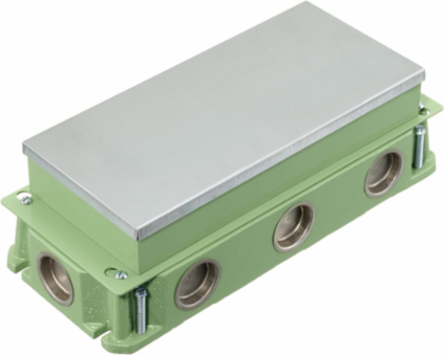

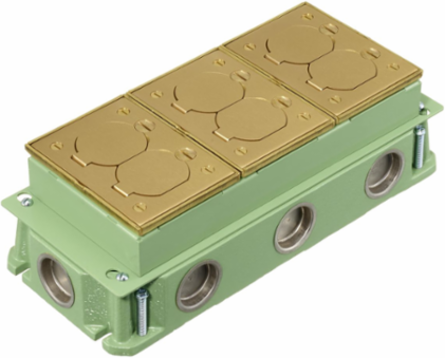

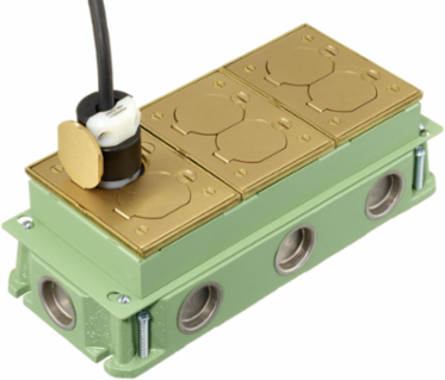

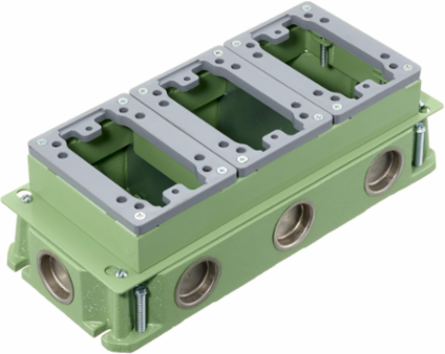

Hubbell Premise Wiring FB4333 Deep Cast Iron Floor Box, 3-Gang, 11.41 Inch x 4.91 Inch x 3.4 Inch
- MPN: FB4333
- UPC: 783585696089
- PPN: HBL-FB4333
- UNSPSC: 39121307
CAD
$755.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Flush Concrete Floorboxes Series, Deep Cast Iron Box, Rectangular, 3-Gang, 3.50" Minimum Depth of Pour, Corrosion Resistant Paint
Features
- 3.50" minimum depth of pour
- (8) 1" threaded hubs, ships with (4) 1" to ¾" threaded reducers
- 1.25" prepour and 0.875" post pour adjustment
- Green painted corrosion-resistant cast iron base and stamped steel top
- For use in slab on grade, 2nd floor and above concrete floors
- Multi-service, includes (2) removable metallic low voltage dividers
- Each gang includes (1) 6" solid #12 AWG conductor grounding pigtail
- Cast Iron Box with Corrosion Resistant Paint; Threaded Hubs
Specifications
Additional
| Mounting Type | Field Installed |
|---|---|
| Threaded Hubs | 8 x 1 in. NPT |
| Height | 3.4 in |
| Mounting Method | Screw Mount Device Mounting Plates |
| Device Chamber Grounding | (3) 6 in. Long #12 AWG Solid Copper Wire |
| Concrete Pour Minimum Depth | 3.5 in |
| Material | Cast Iron Base Box, Pregalvanized Steel Top, PVC Spacer |
| Construction | Fabricated |
| Box Top Material | Stamped Steel |
| Low Voltage Divider | (2) Stamped Steel |
| Certifications | cULus Listed to UL514A, CSA C22.2 No 18 |
| Number of Gangs | 3-Gang |
|---|---|
| Application | For Use in Concrete Floors |
| Size | 11.41 in x 4.91 in x 3.4 in |
| Box Type | On/Above Grade |
| Wiring Chamber Volume | 36.5 in3, 34.8 in3 center gang |
| Concrete Pour Post Pour Adjustment | 0.875 in |
| Finish | Green Powder Paint |
| Box Base Material | Cast Iron |
| Cover Frame Material | Thermoplastic |
| Cover Style | Rectangular |
