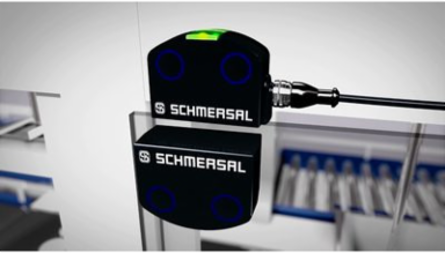

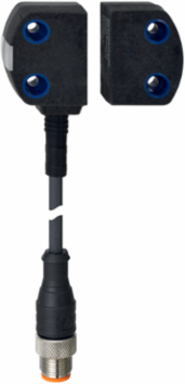

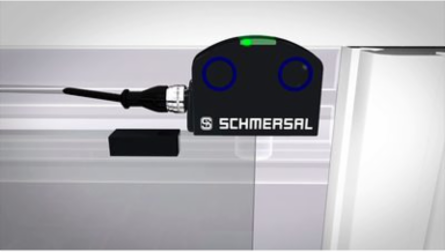

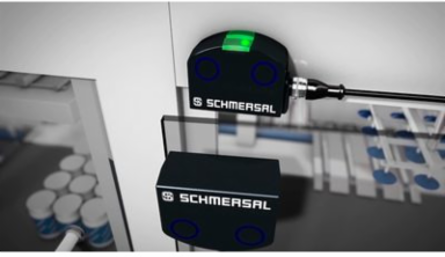

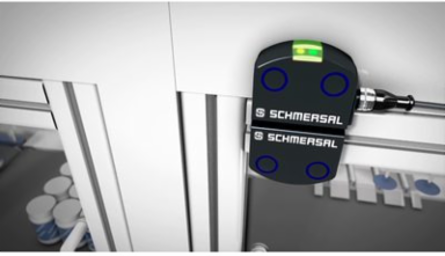

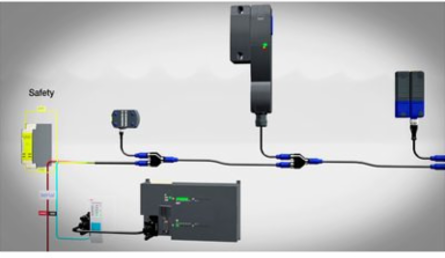

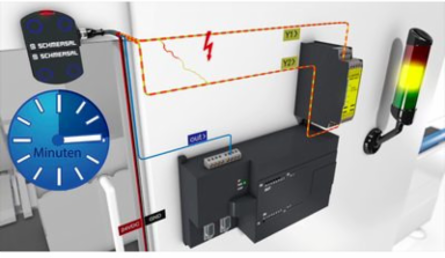

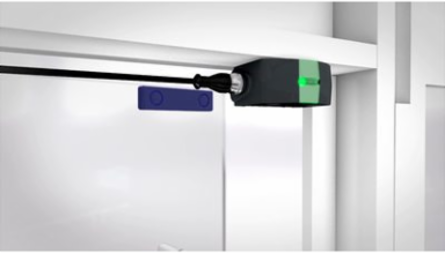

Schmersal 103014732 RSS 260 Safety Sensor, 8-Pole M12 Connector, RFID Technology, IP65/67, 29.5mm Length
- MPN: 103014732
- PPN: SCM-103014732
CAD
$373.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RSS 260 Safety Sensor, 8-Pole M12 Connector, RFID Technology, IP65/67, 29.5mm Length
Features
- 8-pole connector M12
- Coding level "High" according to ISO 14119
- Simple mounting without additional angle
- Individual coding with RFID technology
- Frontal and lateral actuation enabled
- RFID-technology for needs-based protection against tampering
- Thermoplastic enclosure
Documentation & Downloads
Specifications
Electrical data - Fail-safe digital outputs
| Versions | p-type |
|---|---|
| Current leakage I | 0.5 mA |
| Current, Utilisation category DC-12 | 0.25 A |
| Current, Utilisation category DC-13 | 0.25 A |
| Voltage drop U | 1 V |
|---|---|
| Voltage, Utilisation category DC-12 | 24 VDC |
| Voltage, Utilisation category DC-13 | 24 VDC |
Safety appraisal
| Standards | EN ISO 13849-1 | IEC 60947-5-3 | EN 62061 | IEC 61508 |
|---|---|
| Control category to EN13849 | 4 |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
| Performance level, up to | e |
|---|---|
| PFH-value | 6.80 x 10⁻¹⁰ /h |
| Mission Time | 20 Year(s) |
Electrical data
| Voltage type | DC (direct current) |
|---|---|
| Rated operating voltage | 24 VDC -15% / +10% |
| Rated operating voltage, maximum | 26.4 VDC |
| Required rated short-circuit current to EN 60947-5-1 | 100 A |
| No-load supply current I | 100 mA |
|---|---|
| Rated operating voltage, minimum | 20.4 VDC |
| Operating current | 600 mA |
| Switching frequency, approx. | 1 Hz |

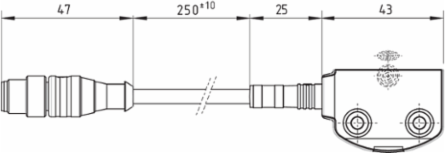

Mechanical data - Dimensions
| Length of sensor | 29.5 mm |
|---|---|
| Height of sensor | 18 mm |
| Width of sensor | 39.2 mm |
|---|

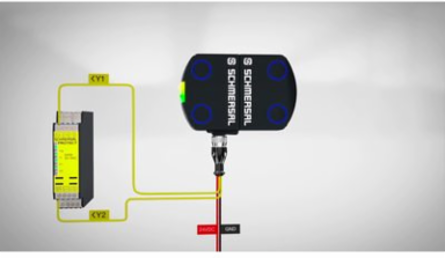

Pin assignment
| PIN 1 | A1 Supply voltage UB |
|---|---|
| PIN 3 | A2 GND |
| PIN 5 | OUT Diagnostic output |
| PIN 7 | Y2 Safety output 2 |
| PIN 2 | X1 Safety input 1 |
|---|---|
| PIN 4 | Y1 Safety output 1 |
| PIN 6 | X2 Safety input 2 |
| PIN 8 | without function |
Ambient conditions - Insulation value
| Rated insulation voltage U | 32 VDC |
|---|---|
| Overvoltage category | III |
| Rated impulse withstand voltage U | 0.8 kV |
|---|---|
| Degree of pollution to VDE 0100 | 3 |
General data - Features
| Short circuit detection | Yes |
|---|---|
| Safety functions | Yes |
| Short-circuit recognition | Yes |
|---|---|
| Number of poles | 8 |
General data
| Standards | IEC 60947-5-3 |
|---|---|
| Coding level according to ISO 14119 | High |
| Housing construction form | Block |
| Enclosure material | Plastic, thermoplastic, self-extinguishing |
| Gross weight | 161 g |
| Reaction time, maximum | 100 ms |
| general information | Individual coding, multiple teaching |
|---|---|
| Active principle | RFID |
| Installation conditions (mechanical) | not flush |
| Active area | Glass-fibre, thermoplastic |
| Time to readiness, maximum | 2,000 ms |
| Duration of risk, maximum | 200 ms |
Ambient conditions
| Degree of protection | IP65 to EN 60529 | IP67 to EN 60529 |
|---|---|
| Ambient temperature, maximum | +65 °C |
| Storage and transport temperature, maximum | +85 °C |
| Restistance to shock | 30 g / 11 ms |
| Ambient temperature, minimum | -25 °C |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Resistance to vibrations to EN 60068-2-6 | 10 … 55 Hz, amplitude 1 mm |

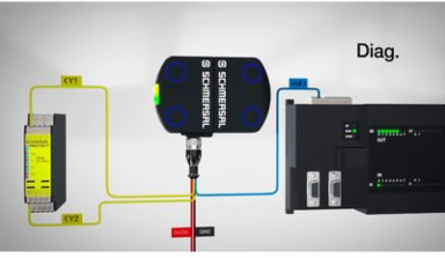

Electrical data - Diagnostic output
| Operating current | 50 mA |
|---|---|
| Voltage drop U | 2 V |
| Current, Utilisation category DC-12 | 0.05 A |
| Current, Utilisation category DC-13 | 0.05 A |
| Versions | p-type |
|---|---|
| Voltage, Utilisation category DC-12 | 24 VDC |
| Voltage, Utilisation category DC-13 | 24 VDC |
Mechanical data - Connection technique
| Terminal Connector | Connector M8, 8-pole |
|---|
| Note | The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current |
|---|

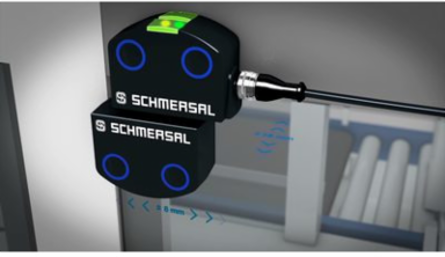

Mechanical data - Switching distances according IEC 60947-5-3
| Ensured switching distance "ON", front | 10 mm |
|---|---|
| Ensured switching distance "ON", side | 6 mm |
| Ensured switching distance "OFF", front | 18 mm |
|---|---|
| Ensured switch distance "OFF" S | 15 mm |
Mechanical data
| Actuating panels | lateral | front side |
|---|---|
| Hysteresis (Switch distance), maximum | 2 mm |
| Mounting | A 20 mm screw length usually suffices to mount the sensor. When the mounting plates are used, we recommend 25 mm long screws. |
| Active area | lateral | front |
|---|---|
| Repeat accuracy R R | 0.5 mm |
Accessory
| Recommendation (actuator) | RST16-1 | RST-U-2 | RST260-1 |
|---|
Electrical data - Electromagnetic compatibility (EMC)
| Interfering radiation | IEC 61000-6-4 |
|---|
| EMC rating | IEC 60947-3 |
|---|
Approval - Standards
| Certificates | TÜV | cULus | EAC | FCC | IC |
|---|
Status indication
| Note (LED switching conditions display) | (1) LED green: Supply voltage | LED yellow: Operating condition | LED red: Fault |
|---|
