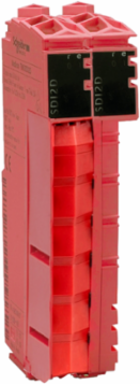

Schneider Electric TM5SDI2DFS Safety DC Discrete Input Module, 24V, 2 Inputs, SIL 3 Certified

MPN: TM5SDI2DFS
PPN: SCH-TM5SDI2DFS
UNSPSC: 32151705

$231.98

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This safety DC discrete input module provides 2 inputs, 24V DC, sink. There is an isolation between channel and bus at 500V AC. This safety module, associated with TM5CSLC safety logic controller provides distributed safety solutions on Sercos bus up to SIL 3, Cat. 4, PL e, SIL CL3. It features 2 LEDs for power supply, 2 LEDs for safety status and 20 LEDs for input status signaling. It is furnished with 2 wires for electrical connection. Its housing colour is red. It weighs 0.059kg. It measure 75mm deep, 25mm wide, 99mm high. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon TM5CSLC safety logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Features

Modicon TM5 system provides flexible/scalable configurations of remote/distributed IO islands to Modicon controllers
Fully developped for Packaging, Material Working , Material Handling and Machine Control Solutions
Modicon TM5 system offers a wide variety of IO enabling to meet desired configuration, while reducing costs
Modicon TM5 is characterized by easy cabling and maintenance

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Austria
Depth	75 mm

Weight	49 g

Complementary Attributes

Maximum Voltage Drop	<0.6 V at 100 mA, <0.6 V at 100 mA<0.6 V at 100 mA, <0.6 V at 100 mA

Important Information Attributes

Electromagnetic Compatibility	electrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3electrical fast transient/burst immunity test, 1 kV I/O IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4electrical fast transient/burst immunity test, 2 kV power lines IEC 61000-4-41.2/50 µs shock waves immunity test, 0.5 kV differential mode IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 1 kV common mode IEC 61000-4-5conducted RF disturbances IEC 61000-4-6conducted and radiated emissions CISPR 11
Safety Level	SIL 3 IEC 61508, SIL 3 IEC 62061PL = e EN 13849-1
Certificate Agency	CSA, cULus, GOST-R
Carbon Footprint Of The End Of Life Phase C1 To C4	0.07816375868597013, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	2 kg CO2 eq., 1.6494272998942214
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Product Kit Identifier	N
Electrical Connection	2 wires
Marking	CE
Optical Interface Present	false
Product Or Component Type	safety dc discrete input module
Radio Standard Gprs	false
Radio Standard Umts	false
Returnability	No
Software Version	v6.2.5-6
Supporting Protocol For Can	false
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	false
Supporting Protocol For Profibus	false
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Total Lifecycle Carbon Footprint	42 kg CO2 eq.
Voltage State 0 Guaranteed	<= 5 V<= 5 V
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
System Accessory	false
Database Version	2024-01
Height Nominal	99 mm
Supporting Protocol For Ethernet/Ip	false
Wall Mounting/Direct Mounting Possible	false
Customs Code	8538908180
Appendant Operation Agent Ex Ib	false
Certified For Ul Hazardous Location Group B Hydrogen	false
Certified For Ul Hazardous Location Group D Propane	false
Certified For Ul Hazardous Location Group F Carbonaceous Dust	false
Io Link Master Present	false
Rack Assembly Possible	false
Supporting Protocol For Data Highway	false
Functional Unit Description	To manage digital or analog I/O signal 100% of the time for 10 years with dissipation power of 1.51W.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	87.6

Local Signalling	1 LED (green) for power supply, 1 LED (red) for power supply, 2 LEDs (green/red) for input status, 2 LEDs (red) for safety status
Safety Reliability Data	MTTFd > 100 years, PFD < 1E-5, PFH < 1E-9
Carbon Footprint Of The Distribution Phase A4	0.017156767338072785, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.03384092768351239
Carbon Footprint Of The Use Phase B2 B3 B4 B6	40 kg CO2 eq., 40.33837964488518
Local Publishable Date	2026-08-06
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1511026EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Bearing Track Assembly Possible	true
Front Installation Possible	false
Network Type	DC
Product Availability	Non-Stock - Not normally stocked in distribution facility
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon TM5
Shock Resistance	15 gn 11 ms
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	No
Vibration Resistance	1 gn 8.4-150 Hz) on DIN rail3.5 mm 5-8.4 Hz) on DIN rail
Voltage State 1 Guaranteed	>= 15 V>= 15 V
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Fieldbus Connection Over Separate Bus Coupler Possible	false
Short Circuit Protection Outputs Present	false
Data Source	extrapolated product
Width Nominal	25 mm
Supporting Protocol For Tcp/Ip	false
Nbr. Of Units In Pkg.	1
Appendant Operation Agent Ex Ia	false
Certified For Ul Hazardous Location Group A Acetylene	false
Certified For Ul Hazardous Location Group C Ethylene	false
Certified For Ul Hazardous Location Group E Metal Dusts	false
Certified For Ul Hazardous Location Group G Non Conductive Dust	false
Performance Level According To En Iso 13849 1	none
Supporting Protocol For As Interface Safety At Work	false
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-60 °C-10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	42.116968398486954
Circularity Profile	ENVEOLI1511026EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Code	ENVPEP1511026EN
Pcr Version	PCR-4-ed4-FR-2021 09 06
Type Of Verification For The Pep	Independent internal review

Product Compatibility	motion controller, PacDrive LMC Pro 2, logic controller, PacDrive LMC Pro, PacDrive LMC Eco
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Ambient Air Temperature For Storage	-40-70 °C-40-70 °C
Environmental Disclosure	ENVPEP1511026EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Relative Humidity	5-95 % without condensation
Pep Verification Date	2025-12-25
Psr Version	PSR-0005-ed3-EN-2023 06 06

General Attributes

Product Or Component Type	safety dc discrete input module

Range Of Product	Modicon TM5

ETIM

ETIM 8	EC001599
ETIM 10	EC001599

ETIM 9	EC001599

Contractual Warranty Attributes

Warranty Period	18 months

Warranty	18 months

Input Attributes

Discrete Input Number	at 24 V DC, 2
Discrete Input Current	3.45 mA at 24 V DC
Discrete Input Voltage	24 V DC 20.4...28.8 V)
Input Impedance	7 kOhm

Input Filtering	<= 500 ms configurable by software, <= 500 ms configurable by software, <= 150 ms hardware, <= 150 ms hardware, <= 500 ms configurable by software, <= 500 ms configurable by software, <= 150 ms hardware, <= 150 ms hardware
Discrete Input Logic	sink
Discrete Input Voltage Type	DC
Input Voltage Limits	20.4...28.8 V
