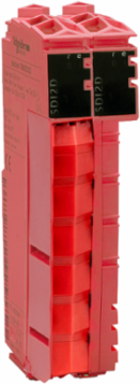

Schneider Electric TM5SDM4DTRFS Safety Discrete I/O Module, 2 Inputs, 2 Outputs, 24V DC, Relay Output
- MPN: TM5SDM4DTRFS
- PPN: SCH-TM5SDM4DTRFS
- UNSPSC: 32151705
CAD
$832.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This Safety discrete IO module provides 2 inputs, 24V DC, sink and 2 NO relay outputs. There is an isolation between channel and bus at 500V AC. This safety module, associated with TM5CSLC safety logic controller provides distributed safety solutions on Sercos bus up to SIL 3, Cat. 4, PL e, SIL CL3. It features 2 LEDs for power supply, 2 LEDs for safety status and 20 LEDs for input status signaling. It is furnished with 2 wires for electrical connection. Its housing colour is red. It weighs 0.025kg. It measure 75mm deep, 25mm wide, 99mm high. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon TM5CSLC safety logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Features
- Modicon TM5 system provides flexible/scalable configurations of remote/distributed IO islands to Modicon controllers
- Fully developped for Packaging, Material Working , Material Handling and Machine Control Solutions
- Modicon TM5 system offers a wide variety of IO enabling to meet desired configuration, while reducing costs
- Modicon TM5 is characterized by easy cabling and maintenance
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Austria |
|---|---|
| Depth | 75 mm |
| Weight | 10 g |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Electromagnetic Compatibility | electrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3electrical fast transient/burst immunity test, 1 kV I/O IEC 61000-4-4, electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4electrical fast transient/burst immunity test, 2 kV power lines IEC 61000-4-41.2/50 µs shock waves immunity test, 0.5 kV differential mode IEC 61000-4-5, 1.2/50 µs shock waves immunity test, 1 kV common mode IEC 61000-4-5conducted RF disturbances IEC 61000-4-6conducted and radiated emissions CISPR 11 |
| Safety Level | SIL 3 IEC 61508, SIL 3 IEC 62061PL = e EN 13849-1 |
| Certificate Agency | CSA, cULus, GOST-R |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.01595178748693268, 0 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.3 kg CO2 eq., 0.3366178163049432 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electrical Connection | 2 wires |
| Marking | CE |
| Optical Interface Present | false |
| Product Or Component Type | safety discrete I/O module |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | No |
| Software Version | v6.2.5-6 |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Total Lifecycle Carbon Footprint | 47 kg CO2 eq. |
| Voltage State 0 Guaranteed | <= 5 V<= 5 V |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Fieldbus Connection Over Separate Bus Coupler Possible | false |
| Short Circuit Protection Outputs Present | false |
| Database Version | 2024-01 |
| Height Nominal | 99 mm |
| Supporting Protocol For Ethernet/Ip | false |
| Wall Mounting/Direct Mounting Possible | false |
| Customs Code | 8538908180 |
| Appendant Operation Agent Ex Ib | false |
| Certified For Ul Hazardous Location Group B Hydrogen | false |
| Certified For Ul Hazardous Location Group D Propane | false |
| Certified For Ul Hazardous Location Group F Carbonaceous Dust | false |
| Io Link Master Present | false |
| Rack Assembly Possible | false |
| Supporting Protocol For Data Highway | false |
| Functional Unit Description | To manage digital or analog I/O signal 100% of the time for 10 years with dissipation power of 1.51W. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 100.74 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Local Signalling | 1 LED (green) for power supply, 1 LED (red) for power supply, 2 LEDs (green/red) for input status, 2 LEDs (red) for safety status2 LEDs (red/orange) for output status |
| Safety Reliability Data | MTTFd > 100 years, PFD < 1E-5, PFH < 1E-9 |
| Carbon Footprint Of The Distribution Phase A4 | 0.0035013810894026095, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0 kg CO2 eq., 0.006906311772145386 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 46 kg CO2 eq., 46.389136591617955 |
| Local Publishable Date | 2026-08-06 |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1511026EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Bearing Track Assembly Possible | true |
| Front Installation Possible | false |
| Network Type | DC |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon TM5 |
| Shock Resistance | 15 gn 11 ms |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Vibration Resistance | 1 gn 8.4-150 Hz) on DIN rail3.5 mm 5-8.4 Hz) on DIN rail |
| Voltage State 1 Guaranteed | >= 15 V>= 15 V |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 24-24 V |
| System Accessory | false |
| Time Delay At Signal Change | 150-150 ms |
| Data Source | extrapolated product |
| Width Nominal | 25 mm |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Appendant Operation Agent Ex Ia | false |
| Certified For Ul Hazardous Location Group A Acetylene | false |
| Certified For Ul Hazardous Location Group C Ethylene | false |
| Certified For Ul Hazardous Location Group E Metal Dusts | false |
| Certified For Ul Hazardous Location Group G Non Conductive Dust | false |
| Performance Level According To En Iso 13849 1 | none |
| Supporting Protocol For As Interface Safety At Work | false |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-50 °C vertical installation), -10-50 °C vertical installation), -10-55 °C horizontal installation) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 46.75211388827138 |
| Circularity Profile | ENVEOLI1511026EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1511026EN |
| Pcr Version | PCR-4-ed4-FR-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Product Compatibility | PacDrive LMC Pro, PacDrive LMC Pro 2, PacDrive LMC Eco |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ambient Air Temperature For Storage | -40-70 °C-40-70 °C |
| Environmental Disclosure | ENVPEP1511026EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 5-95 % without condensation |
| Pep Verification Date | 2025-12-25 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
General Attributes
| Product Or Component Type | safety discrete I/O module |
|---|
| Range Of Product | Modicon TM5 |
|---|
ETIM
| ETIM 8 | EC001599 |
|---|---|
| ETIM 10 | EC001599 |
| ETIM 9 | EC001599 |
|---|
Output Attributes
| Discrete Output Number | relay at 24 V DC, 2 |
|---|---|
| Discrete Output Type | relay |
| Discrete Output Voltage Type | DC |
| Discrete Output Logic | source |
|---|---|
| Discrete Output Voltage | 24 V DC 20.4...28.8 V)relay |
| Output Voltage Limits | 20.4...28.8 V |
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Number | at 24 V DC, 2 |
|---|---|
| Discrete Input Current | 3.3 mA at 24 V DC |
| Discrete Input Voltage | 24 V DC 20.4...28.8 V) |
| Input Impedance | 7.3 kOhm |
| Input Filtering | <= 500 ms configurable by software, <= 500 ms configurable by software, <= 150 ms hardware, <= 150 ms hardware, <= 500 ms configurable by software, <= 500 ms configurable by software, <= 150 ms hardware, <= 150 ms hardware |
|---|---|
| Discrete Input Logic | sink |
| Discrete Input Voltage Type | DC |
| Input Voltage Limits | 20.4...28.8 V |
