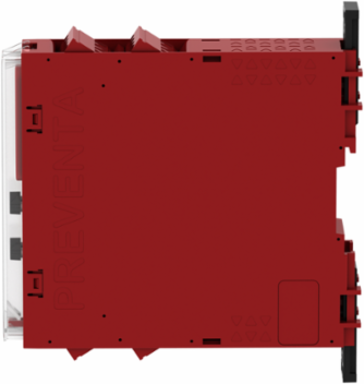

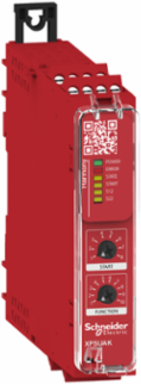

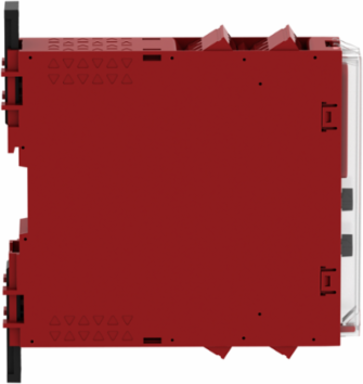

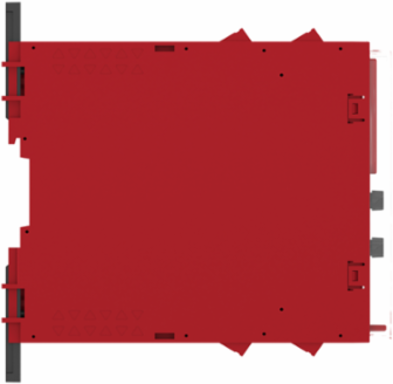

Schneider Electric XPSUAK32AP Harmony Safety Module Cat 4, 48-240V AC/DC, 22.5mm Width, 100mm Height
- MPN: XPSUAK32AP
- PPN: SCH-XPSUAK32AP
CAD
$458.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Harmony Safety Module Cat 4, 48-240V AC/DC, 22.5mm Width, 100mm Height
Features
- The XPSUAK32AP is a high-performance universal safety monitoring module belonging to the Harmony Safety Automation (formerly Preventa) family. It serves as a centralized evaluation node engineered to monitor emergency stop pushbuttons, interlocking guard switches, magnetic or RFID safety switches, safety light curtains, sensing mats, and proximity sensors. This versatility makes it a core component for risk-reduction architectures in high-throughput packaging, material handling, and automotive assembly grids.
- This module is engineered for maximum critical hazard mitigation, achieving up to Performance Level e (PL e), Category 4 compliance under ISO 13849-1, and Safety Integrity Level 3 (SIL 3) under IEC 61508 and IEC 62061 standard regimes. It incorporates an advanced internal dual-channel monitoring structure that performs continuous cross-monitoring and dynamization pulses, allowing it to detect internal electronic component failures, wire short-circuits, and cross-faults across safety input lines instantly.
- Equipped with a wide-range, universal internal power transformer, the module operates smoothly on any control line tracking from 48V to 240V AC or DC at 50/60 Hz frequencies. It handles a peak power consumption profile of 6.5 VA on alternating current or 3.0 Watts on direct current buses. The module features two independent safety inputs (24V DC, 5 mA), three on/off configurable pulsed test outputs designed to monitor circuit continuity, and a dedicated semiconductor pulsed diagnostic output (Z1) that pushes real-time status data to standard PLC input registers without requiring fieldbus cards.
- The safety-related switching outputs are configured as an isolated 2 Normally Open (2 NO) safety circuit combined with 1 Normally Closed (1 NC) auxiliary diagnostic contact loop. The main NO contacts are rated for heavy-duty pilot loops, handling up to 5 Amps under resistive DC-1 or AC-1 parameters and 3 Amps under inductive AC-15 or DC-13 control configurations.
- The front panel houses specialized rotary selectors protected under a sealable, transparent plastic cover. Maintenance technicians can turn these dials to select predefined safety application functions, input synchronization times (ranging from 0.5 to 4 seconds), and start profiles. The startup path can be wired for automatic execution, standard manual resetting, or monitored start logic, requiring a transitional pulse from a start button to verify that a contact has not welded shut before re-energizing the main safety loop.
- Boasting an ultra-slimline 22.5 mm width profile, the module mounts onto standard 35 mm symmetrical DIN rails, occupying a height of 100 mm and a depth of 120 mm.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia, United States
Depth120 mm
Complementary Attributes
- Maximum Line Resistance
- 500 Ohm
- Minimum Output Voltage
- 12 V relay output
Minimum Output Current10 mA relay output
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Circuit Type
- NC pair, PNP pair, antivalent pair, OSSD pair
- Safety Level
- can reach PL e/category 4 for normally open relay contact ISO 13849-1, can reach SILCL 3 for normally open relay contact IEC 62061, can reach SIL 3 for normally open relay contact IEC 61508, can reach PL c/category 1 for normally closed relay contact ISO 13849-1, can reach SILCL 1 for normally closed relay contact IEC 62061, can reach SIL 1 for normally closed relay contact IEC 61508
- Safety Reliability Data
- PFHd = 1.61E-09 IEC 62061, PFHd = 1.61E-09 IEC 61508-1, SFF > 99% IEC 61508-1MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1, PFHd = 1.61E-09 ISO 13849-1, HFT = 1 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, type = B IEC 61508-1
- [Ie] Rated Operational Current
- 3 A DC-1 for normally closed relay contact, 1 A DC-13 for normally closed relay contact5 A AC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact
- Carbon Footprint Of The Distribution Phase [A4]
- 0.13505278679340807, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.01040414395531353
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 97 kg CO2 eq., 96.85324113032115
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Mounting Support
- 35 mm symmetrical DIN rail
- Power Consumption In W
- 3.0 W 48 V DC
- Product Or Component Type
- safety module
- Returnability
- Yes
- Software Version
- v6.2.2
- Total Lifecycle Carbon Footprint
- 103 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime, In Kwh
- 262.8
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Italy, IT
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Italy, IT
- Width Nominal
- 22.5 mm
- [Ui] Rated Insulation Voltage
- 250 V 2)IEC 60947-1
- [Us] Rated Supply Voltage
- 48...240 V AC/DC - 10...10 %
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Moduleemergency stop button with 2 NC contacts, guard monitoring with 1 or 2 limit switches, monitoring 2 PNP sensors, magnetic switch monitoring, light curtain monitoring, RFID switch, monitoring of electro-sensitive protection equipment (ESPE), sensing mat/edges, proximity sensor monitoring, monitoring 1 PNP + 1 NPN sensor
Safety Module Applicationmonitoring antivalent contacts, for emergency stop, guard and light curtain monitoring, monitoring of pressure-sensitive 4-wire protective devices
Certificate AgencyTÜV, cULus
Connections - Terminalsremovable screw terminal block, 0.2...2.5 mm² solid or flexible, removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor, removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6361523601025525, 0.6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 5.165442546824546
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1811003EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1915
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Associated Fuse Rating10 A gG NO relay output circuit IEC 60947-1
Power Consumption In Va6.5 VA 240 V AC 50/60 Hz
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Safety Automation
Safety Module NameXPSUAK
Sustainable PackagingNo
Type Of Startautomatic/manual/monitored
Pep CodeENVPEP1811003EN
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Italy, IT
Height Nominal100 mm
[Ith] Conventional Free Air Thermal Current8 A
[Uimp] Rated Impulse Withstand Voltage4 kV II IEC 60947-1
Input/Output Typesemiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
Package Weight(Lbs)291.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C, -25-55 °C, -25-55 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 102.80029296799698
- Environmental Disclosure
- ENVPEP1811003EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1811003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP20 terminals)IEC 60529, IP40 housing)IEC 60529, IP54 mounting area)IEC 60529
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1811003EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % non-condensing
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- safety module
Range Of ProductHarmony Safety Automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Minimum Output Current
- 10 mA relay output
- Number Of Outputs
- 3 on/off configurable pulsed output
Minimum Output Voltage12 V relay output
Input Attributes
- Input Compatibility
- normally closed circuit ISO 14119, XC limit switch ISO 14119, mechanical contact ISO 14119, normally closed circuit ISO 13850, antivalent pair ISO 14119, OSSD pair IEC 61496-1-2, 3-wire proximity sensors PNP
- Input Protection Type
- internal, electronic
Synchronisation Time Between Inputs0.5 s, 2 s, 4 s
Number Of Inputs2 safety input 24 V DC 5
