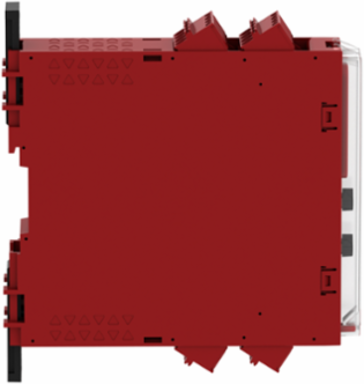

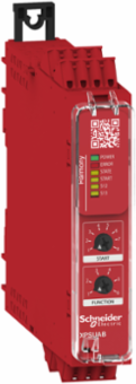

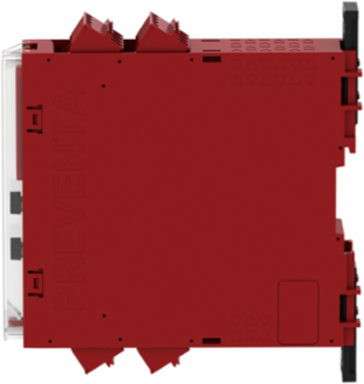

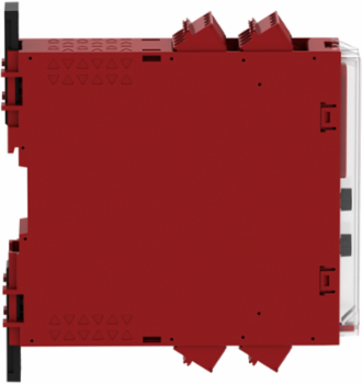

Schneider Electric XPSUAB31CC safety module, Harmony XPSU, Cat 1, potential free 2 NC, NO NC, 2 PNP, 48 to 240V AC or DC, spring
Schneider Electric XPSUAB31CC safety module, Harmony XPSU, Cat 1, potential free 2 NC, NO NC, 2 PNP, 48 to 240V AC or DC, spring
- MPN: XPSUAB31CC
- PPN: SCH-XPSUAB31CC
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$289.60/ EA
Description
This safety relay is designed for monitoring Emergency stop, Antivalent contacts, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch, Safety light curtain or Two-hand control stations. The safety relay is powered with 48-240V AC/DC and equipped with a spring removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 1 safety input, 2 ON/OFF configurable pulsed outputs, 1 single changeover safety output , and 1 solid state diagnostic output with complete status information. The maximum safety level achieved by this safety relay is PLc/Category 1 conforming to ISO 13849-1, SILCL 1 conforming to IEC 62061 and SIL 1 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.
Specifications
Complementary
- Number Of Outputs
- 2 on/off configurable pulsed output
- Height
- 100 mm
- Minimum Output Voltage
- 15 V relay output
- [Ith] Conventional Free Air Thermal Current
- 3 A
- Associated Fuse Rating
- 6 A gG relay output IEC 60947-1
- Net Weight
- 0.200 kg
- Number Of Inputs
- 1 safety input 24 V DC 5
- Power Consumption In Va
- 6.5 VA 240 V AC 50/60 Hz
- Auxiliary Contact Composition
- 1 C/O
- Power Consumption In W
- 2.0 W 48 V DC
- Local Signalling
- power ON LED green) || error LED red) || start LED yellow) || safety status LED yellow) || safety input S12 LED yellow) || safety input S13 LED yellow)
- Width
- 22.5 mm
- Synchronisation Time Between Inputs
- 0.5 s || 2.2 s
Ambient Air Temperature For Operation-25-55 °C
Mounting Support35 mm symmetrical DIN rail
Minimum Output Current10 mA relay output
Input/Output Typesemiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
[Uimp] Rated Impulse Withstand Voltage4 kV II IEC 60947-1
Type Of Startautomatic/manual/monitored
Input Compatibilitynormally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || two-hand control EN 574/ISO 13851-III A || 3-wire proximity sensors PNP
[Ie] Rated Operational Current5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact || 3 A AC-1 for normally closed relay contact || 1 A AC-15 for normally closed relay contact || 2 A DC-1 for normally closed relay contact || 1 A DC-13 for normally closed relay contact
[Ui] Rated Insulation Voltage250 V 2)IEC 60947-1
Maximum Line Resistance500 Ohm
Input Protection Typeinternal, electronic
Depth120 mm
Maximum Response Time On Input Open20 ms
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1811003EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1811003EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Specifications
- [Us] Rated Supply Voltage
- 48...240 V AC/DC - 10...10 %
- Product Or Component Type
- safety module
- Connections - Terminals
- removable spring terminal block, 0.2...2.5 mm² solid or flexible || removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductor || removable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductor || removable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel || removable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
- Safety Reliability Data
- MTTFd >= 30 years ISO 13849-1 || Dcavg < 60 % ISO 13849-1 || PFHd = 1177E-09 1/h ISO 13849-1 || HFT = 0 IEC 62061 || PFHd = 1177E-09 1/h IEC 62061 || SFF > 60% IEC 62061 || HFT=0 IEC 61508-1 || PFHd = 1177E-09 1/h IEC 61508-1 || SFF > 60% IEC 61508-1 || type = B IEC 61508-1
- Function Of Module
- emergency stop monitoring 1-channel wiring || guard monitoring 1-channel wiring || monitoring 1 PNP sensor || monitoring two-hand control station type IIIA || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of electro-sensitive protection equipment (ESPE) || proximity sensor monitoring
Range Of ProductHarmony Safety Automation
Safety Module NameXPSUAB
Safety Module Applicationfor electrical monitoring of two-hand control stations || for application with safety switchover contact || for emergency stop, guard and light curtain monitoring || monitoring antivalent contacts
Electrical Circuit TypeNC pair || PNP pair || antivalent pair || OSSD pair
Safety Levelcan reach PL c/category 1 ISO 13849-1 || can reach SILCL 1 IEC 62061 || can reach SIL 1 IEC 61508
Environment
- Product Certifications
- TÜV || cULus
- Standards
- IEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional safety standard || IEC 61508-7 functional safety standard || ISO 13849-1 functional safety standard || IEC 62061 functional safety standard
Ip Degree Of ProtectionIP20 terminals)IEC 60529 || IP40 housing)IEC 60529 || IP54 mounting area)IEC 60529
Relative Humidity5-95 % non-condensing
