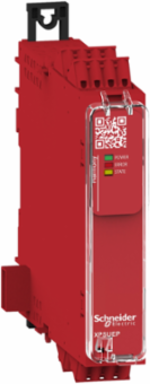

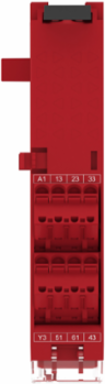

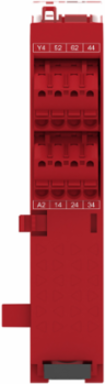

Schneider Electric XPSUEP34AC Harmony Safety Module, Cat.4, 48-240V AC/DC, 100mm Height
- MPN: XPSUEP34AC
- PPN: SCH-XPSUEP34AC
CAD
$381.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This safety relay is designed for extending the number of safety contacts. The safety relay is powered with 48-240V AC/DC and equipped with a spring removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds a safety extension bus, 4 NO and 2 single NC safety outputs. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. XPSUEP can be only used with XPSUAF, XPSUAK, XPSUAT, XPSUDN and XPSUS safety modules. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia
Depth120 mm
Complementary Attributes
- Maximum Line Resistance
- 60 Ohm
- Minimum Output Current
- 10 mA relay output
Maximum Response Time On Input Open20 ms
Minimum Output Voltage12 V relay output
Important Information Attributes
- Safety Level
- can reach PL e/category 4 for normally open relay contact ISO 13849-1can reach SILCL 3 for normally open relay contact IEC 62061can reach SIL 3 for normally open relay contact IEC 61508can reach PL c/category 1 for normally closed relay contact ISO 13849-1, can reach SILCL 1 for normally closed relay contact IEC 62061, can reach SIL 1 for normally closed relay contact IEC 61508
- Certificate Agency
- TÜV, cULus
- Connections - Terminals
- removable spring terminal block, 0.2...2.5 mm² solid or flexible, removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductorremovable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductorremovable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezelremovable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.7 kg CO2 eq., 0.6623854471170908
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 5 kg CO2 eq., 5.378450486899784
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Electrical Circuit Type
- addition to Preventa XPSU base module
- Local Signalling
- LED (green) for power ONLED (red) for errorLED (yellow) for safety output status
- Power Consumption In Va
- 6.5 VA 240 V AC 50/60 Hz
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony Safety Automation
- Safety Module Application
- for extending number of safety contacts
- Software Version
- v6.2.2
- Total Lifecycle Carbon Footprint
- 71 kg CO2 eq.
- Pep Code
- ENVPEP1811003EN
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Indonesia, ID
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Italy, IT
- Height Nominal
- 100 mm
- [Ith] Conventional Free Air Thermal Current
- 8 A
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV II IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490055
Safety Reliability DataPFHd = 1.61E-09 IEC 62061PFHd = 1.61E-09 IEC 61508-1SFF > 99% IEC 61508-1, MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1, PFHd = 1.61E-09 ISO 13849-1HFT = 1 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, type = B IEC 61508-1
[Ie] Rated Operational Current5 A AC-1 for normally open relay contact3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact
Carbon Footprint Of The Distribution Phase [A4]0.1406219738776723, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.01083318081945017, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]65 kg CO2 eq., 64.56882742021409
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1811003EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1915
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Associated Fuse Rating10 A gG NO relay output circuit IEC 60947-14 A gG NC relay output circuit IEC 60947-1
Function Of Modulesafety output extension
Mounting Support35 mm symmetrical DIN rail
Power Consumption In W2 W 48 V DC
Product Or Component Typesafety module
ReturnabilityNo
Safety Module NameXPSUEP
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh175.2
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Italy, IT
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Italy, IT
Width Nominal22.5 mm
[Ui] Rated Insulation Voltage250 V 2)IEC 60947-1
[Us] Rated Supply Voltage48...240 V AC/DC - 10...10 %
Package Weight(Lbs)303.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-85 °C, -25-85 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1811003EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1811003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint70.76111850892809
Environmental DisclosureENVPEP1811003EN
Ip Degree Of ProtectionIP20 terminals)IEC 60529IP40 housing)IEC 60529IP54 mounting area)IEC 60529
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % non-condensing
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- safety module
Range Of ProductHarmony Safety Automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Minimum Output Current
- 10 mA relay output
Minimum Output Voltage12 V relay output
Input Attributes
- Input Compatibility
- normally closed circuit ISO 14119, XC limit switch ISO 14119, mechanical contact ISO 14119, normally closed circuit ISO 13850, antivalent pair ISO 14119OSSD pair IEC 61496-1-2, 3-wire proximity sensors PNP
- Maximum Response Time On Input Open
- 20 ms
Input Protection Typeinternal, electronic
Number Of Inputs0 extension bus 24 V DC 5
