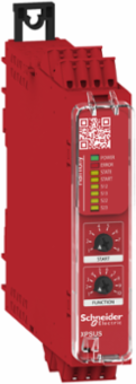

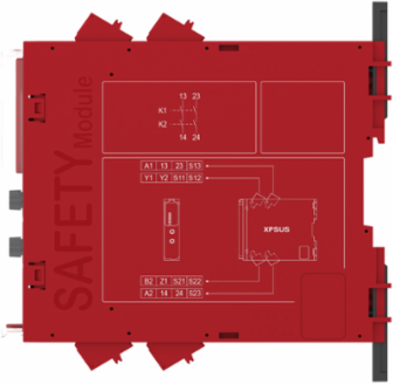

Schneider Electric XPSUS32AC Harmony Safety Module, Cat 4, 48-240V AC/DC, 2 NO Outputs, 100 mm Height

MPN: XPSUS32AC
PPN: SCH-XPSUS32AC

$569.14

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Harmony Safety Module, Cat 4, 48-240V AC/DC, 2 NO Outputs, 100 mm Height

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France, Indonesia, Philippines

Depth	120 mm

Complementary Attributes

Maximum Line Resistance	500 Ohm
Minimum Output Current	10 mA relay output

Maximum Response Time On Input Open	20 ms
Minimum Output Voltage	12 V relay output

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Electrical Circuit Type	NC pair, PNP pair, antivalent pair, OSSD pair
Local Signalling	LED (green) for power ONLED (red) for errorLED (yellow) for safety output status, LED (yellow) for start input, LED (yellow) for safety input S12, LED (yellow) for safety input S13, LED (yellow) for safety input S22, LED (yellow) for safety input S23
Safety Reliability Data	PFHd = 1.61E-09 IEC 62061PFHd = 1.61E-09 IEC 61508-1SFF > 99% IEC 61508-1, MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1, PFHd = 1.61E-09 ISO 13849-1HFT = 1 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, type = B IEC 61508-1
[Ie] Rated Operational Current	3 A DC-1 for normally closed relay contact, 1 A DC-13 for normally closed relay contact5 A AC-1 for normally open relay contact3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact
Carbon Footprint Of The Distribution Phase [A4]	0.1341245889460307, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.010332637811290759
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	97 kg CO2 eq., 96.85324113032115
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Mounting Support	35 mm symmetrical DIN rail
Power Consumption In W	3 W 48 V DC
Product Or Component Type	safety module
Returnability	No
Safety Module Name	XPSUS
Sustainable Packaging	No
Type Of Start	automatic/manual/monitored
Pep Code	ENVPEP1811003EN
Pep Verification Date	2024-11-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Indonesia, ID
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; Italy, IT
Height Nominal	100 mm
[Ith] Conventional Free Air Thermal Current	8 A
[Uimp] Rated Impulse Withstand Voltage	4 kV II IEC 60947-1
Input/Output Type	semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
Package Weight(Lbs)	289.0 g
Warranty (In Months)	18

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Module	emergency stop button with 2 NC contacts, guard monitoring with 1 or 2 limit switches, monitoring 2 PNP sensors, magnetic switch monitoring, light curtain monitoring, RFID switch, monitoring of electro-sensitive protection equipment (ESPE), enabling switch monitoring, proximity sensor monitoring, monitoring two-hand control station
Safety Module Application	for electrical monitoring of two-hand control stations, monitoring antivalent contacts, for emergency stop, guard and light curtain monitoring, for enabling switch monitoring
Certificate Agency	TÜV, cULus
Connections - Terminals	removable spring terminal block, 0.2...2.5 mm² solid or flexible, removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductorremovable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductorremovable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezelremovable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.6317801789334628, 0.6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	5 kg CO2 eq., 5.129941223478673
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	No
Field Service Division	IDIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1811003EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1915
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Associated Fuse Rating	10 A gG NO relay output circuit IEC 60947-1
Power Consumption In Va	8.5 VA 240 V AC 50/60 Hz
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony Safety Automation
Safety Level	can reach PL e/category 4 ISO 13849-1can reach SILCL 3 IEC 62061can reach SIL 3 IEC 61508
Software Version	v6.2.2
Total Lifecycle Carbon Footprint	103 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
Functional-unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	262.8
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; Italy, IT
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; Italy, IT
Width Nominal	22.5 mm
[Ui] Rated Insulation Voltage	250 V 2)IEC 60947-1
[Us] Rated Supply Voltage	48...240 V AC/DC - 10...10 %
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490055

Environment Attributes Main

Ambient Air Temperature For Storage	-25-85 °C, -25-85 °C, -25-85 °C, -25-85 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1811003EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1811003EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	102.75941975949061
Environmental Disclosure	ENVPEP1811003EN
Ip Degree Of Protection	IP20 terminals)IEC 60529IP40 housing)IEC 60529IP54 mounting area)IEC 60529
Packaging Without Single Use Plastic	No
Relative Humidity	5-95 % non-condensing
Pep Verification Date	2024-11-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type	safety module

Range Of Product	Harmony Safety Automation

ETIM

ETIM 8	EC001449

ETIM 9	EC001449

Output Attributes

Minimum Output Current	10 mA relay output
Number Of Outputs	3 on/off configurable pulsed output

Minimum Output Voltage	12 V relay output

Input Attributes

Input Compatibility	normally closed circuit ISO 14119, XC limit switch ISO 14119, mechanical contact ISO 14119, normally closed circuit ISO 13850, antivalent pair ISO 14119OSSD pair IEC 61496-1-2two-hand control EN 574/ISO 13851-III A, two-hand control EN 574/ISO 13851-III C, 3-wire proximity sensors PNP
Input Protection Type	internal, electronic
Number Of Inputs	2 safety input 24 V DC 5
