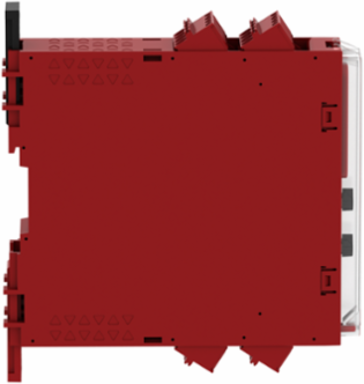

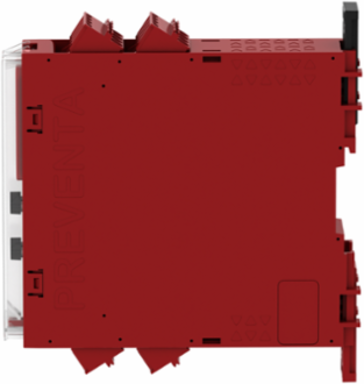

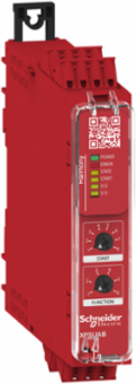

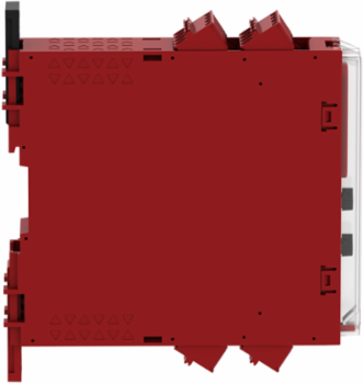

Schneider Electric XPSUAB11CC Harmony Safety Module, PLc/Category 1, 22.5mm Width, 120mm Depth, 24V AC/DC
- MPN: XPSUAB11CC
- PPN: SCH-XPSUAB11CC
CAD
$262.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Harmony Safety Module, PLc/Category 1, 22.5mm Width, 120mm Depth, 24V AC/DC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Indonesia
Depth120 mm
Complementary Attributes
- Maximum Line Resistance
- 500 Ohm
- Minimum Output Current
- 10 mA relay output
Maximum Response Time On Input Open20 ms
Minimum Output Voltage15 V relay output
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Circuit Type
- NC pair, PNP pair, antivalent pair, OSSD pair
- Local Signalling
- LED (green) for power ON, LED (red) for error, LED (yellow) for start, LED (yellow) for safety status, LED (yellow) for safety input S12, LED (yellow) for safety input S13
- Safety Module Application
- for electrical monitoring of two-hand control stations, for application with safety switchover contact, for emergency stop, guard and light curtain monitoring, monitoring antivalent contacts
- Certificate Agency
- TÜV, cULus
- [Us] Rated Supply Voltage
- 24 V AC - 15...10 %, 24 V DC - 20...20 %
- Carbon Footprint Of The Distribution Phase [A4]
- 0.12112981908274743, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.009331551794971929
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 48 kg CO2 eq., 48.426620565160576
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Mounting Support
- 35 mm symmetrical DIN rail
- Power Consumption In W
- 1.5 W 24 V DC
- Product Or Component Type
- safety module
- Returnability
- No
- Software Version
- v6.2.2
- Total Lifecycle Carbon Footprint
- 54 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime, In Kwh
- 131.4
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Italy, IT
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Italy, IT
- Width Nominal
- 22.5 mm
- [Ui] Rated Insulation Voltage
- 250 V 2)IEC 60947-1
- Input/Output Type
- semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
- Package Weight(Lbs)
- 261.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Moduleemergency stop monitoring 1-channel wiring, guard monitoring 1-channel wiring, monitoring 1 PNP sensor, monitoring two-hand control station type IIIA, magnetic switch monitoring, light curtain monitoring, RFID switch, monitoring of electro-sensitive protection equipment (ESPE), proximity sensor monitoring
Safety Levelcan reach PL = c ISO 13849-1, can reach SILCL 1 IEC 62061, can reach SIL 1 IEC 61508
Safety Reliability DataPFHd = 1177E-09 1/h IEC 62061, PFHd = 1177E-09 1/h IEC 61508-1, SFF > 60% IEC 61508-1MTTFd >= 30 years ISO 13849-1, Dcavg < 60 % ISO 13849-1, PFHd = 1177E-09 1/h ISO 13849-1, HFT = 0 IEC 62061, SFF > 60% IEC 62061, HFT=0 IEC 61508-1, type = B IEC 61508-1
[Ie] Rated Operational Current1 A DC-13 for normally closed relay contact5 A AC-1 for normally open relay contact, 3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact, 3 A AC-1 for normally closed relay contact, 1 A AC-15 for normally closed relay contact, 2 A DC-1 for normally closed relay contact
Connections - Terminalsremovable spring terminal block, 0.2...2.5 mm² solid or flexible, removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductor, removable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductor, removable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel, removable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5705696425662069, 0.6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 4.632922696636448
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1811003EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1915
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Associated Fuse Rating6 A gG relay output IEC 60947-1
Power Consumption In Va3.5 VA 24 V AC 50/60 Hz
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony Safety Automation
Safety Module NameXPSUAB
Sustainable PackagingNo
Type Of Startautomatic/manual/monitored
Pep CodeENVPEP1811003EN
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Italy, IT
Height Nominal100 mm
[Ith] Conventional Free Air Thermal Current3 A
[Uimp] Rated Impulse Withstand Voltage4 kV II IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 53.76057427524095
- Environmental Disclosure
- ENVPEP1811003EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1811003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP20 terminals)IEC 60529, IP40 housing)IEC 60529, IP54 mounting area)IEC 60529
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1811003EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % non-condensing
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- safety module
Range Of ProductHarmony Safety Automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Minimum Output Current
- 10 mA relay output
- Number Of Outputs
- 2 on/off configurable pulsed output
Minimum Output Voltage15 V relay output
Input Attributes
- Input Compatibility
- normally closed circuit ISO 14119, XC limit switch ISO 14119, mechanical contact ISO 14119, normally closed circuit ISO 13850, antivalent pair ISO 14119, OSSD pair IEC 61496-1-2, two-hand control EN 574/ISO 13851-III A, 3-wire proximity sensors PNP
- Input Protection Type
- internal, electronic
- Number Of Inputs
- 1 safety input 24 V DC 5
Synchronisation Time Between Inputs0.5 s, 2.2 s
Maximum Response Time On Input Open20 ms
