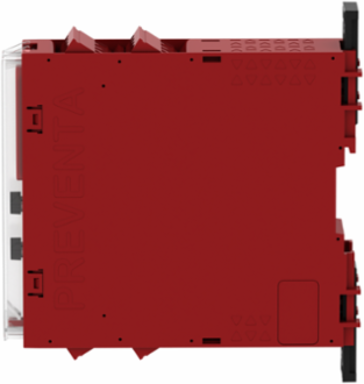

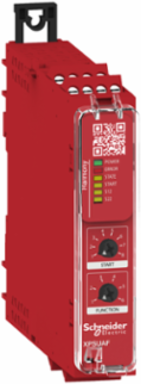

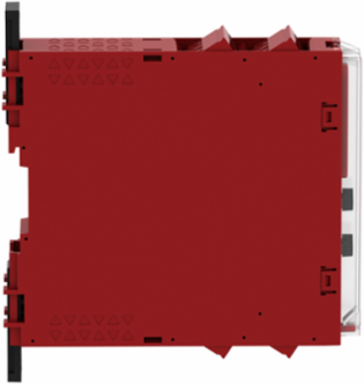

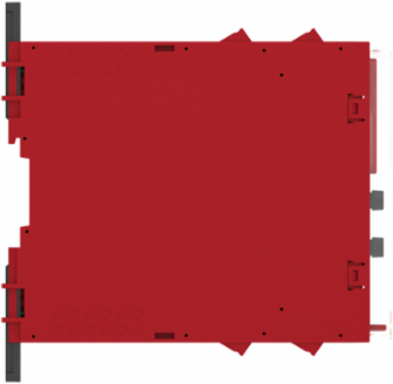

Schneider Electric XPSUAF13AP Harmony Safety Module Cat 4 2 NC 2 PNP 24V AC/DC 22.5mm Width

  • MPN: XPSUAF13AP
  • PPN: SCH-XPSUAF13AP
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $393.58

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Harmony Safety Module Cat 4 2 NC 2 PNP 24V AC/DC 22.5mm Width

    Features

    • Part of the advanced Harmony XPS Universal safety module platform, this device is engineered to monitor a broad array of safety-critical inputs. It can be dynamically configured to supervise Emergency Stop push-buttons (1-channel or 2-channel loops), antivalent contacts, protective guard monitoring switches, magnetic safety switches, proximity sensors, and Output Signal Switching Device (OSSD) light curtain arrays, consolidating diverse cell safety into a single module.
    • This hardware module delivers premium risk-mitigation metrics, achieving PL e (Category 4) conforming to ISO 13849-1 and SIL3 conforming to IEC 61508. This top-tier architectural alignment guarantees that your manufacturing cells satisfy complex municipal, provincial, and corporate safety audits while providing maximum physical protection for plant-floor personnel.
    • Engineered with a versatile, wide-range power supply, this module operates natively on either 24V AC +/-10% or 24V DC +/-20% control infrastructure. This eliminates the need for maintaining separate AC and DC safety module variants in warehouse stock, allowing panel builders to deploy a uniform part number across various localized factory line voltage profiles.
    • Housed in a slim 22.5mm wide enclosure that snaps securely onto standard 35mm DIN rails, this device maximizes available real estate inside packed automation enclosures. It features removable, pluggable terminal blocks with a convenient push-in spring-clamp design, enabling maintenance crews to swap out a physical module in seconds without disconnecting, tracing, or re-terminating individual field safety wires.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginIndonesia, United States
    Depth120 mm

    Complementary Attributes

    Maximum Line Resistance500 Ohm
    Minimum Output Current10 mA relay output
    Maximum Response Time On Input Open20 ms
    Minimum Output Voltage15 V relay output

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Electrical Circuit TypeNC pair, PNP pair, antivalent pair, OSSD pair
    Local SignallingLED (green) for power ONLED (red) for errorLED (yellow) for start, LED (yellow) for safety status, LED (yellow) for safety input S12, LED (yellow) for safety input S22
    Safety Reliability DataPFHd = 1.13E-09 IEC 62061PFHd = 1.13E-09 IEC 61508-1SFF > 99% IEC 61508-1, MTTFd > 30 years ISO 13849-1, Dcavg >= 99 % ISO 13849-1, PFHd = 1.13E-09 ISO 13849-1HFT = 1 IEC 62061, SFF > 99% IEC 62061, HFT = 1 IEC 61508-1, type = B IEC 61508-1
    [Ie] Rated Operational Current5 A AC-1 for normally open relay contact3 A AC-15 for normally open relay contact, 5 A DC-1 for normally open relay contact, 3 A DC-13 for normally open relay contact
    Carbon Footprint Of The Distribution Phase [A4]0.1304117975565212, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.010046613235199665
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]65 kg CO2 eq., 64.56882742021409
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Mounting Support35 mm symmetrical DIN rail
    Power Consumption In W2.0 W 24 V DC
    Product Or Component Typesafety module
    ReturnabilityYes
    Safety Module NameXPSUAF
    Sustainable PackagingNo
    Type Of Startautomatic/manual/monitored
    Pep CodeENVPEP1811003EN
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Indonesia, ID
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Italy, IT
    Height Nominal100 mm
    [Ith] Conventional Free Air Thermal Current8 A
    [Uimp] Rated Impulse Withstand Voltage4 kV II IEC 60947-1
    Input/Output Typesemiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
    Package Weight(Lbs)281.000 g
    Warranty (In Months)18
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Function Of Moduleemergency stop button with 2 NC contacts, guard monitoring with 1 or 2 limit switches, monitoring 2 PNP sensors, magnetic switch monitoring, light curtain monitoring, RFID switch, monitoring of electro-sensitive protection equipment (ESPE), proximity sensor monitoring
    Safety Module Applicationmonitoring antivalent contacts, for emergency stop, guard and light curtain monitoring
    Certificate AgencyTÜV, cULus
    Connections - Terminalsremovable screw terminal block, 0.2...2.5 mm² solid or flexible, removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductorremovable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductorremovable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezelremovable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6142914542571041, 0.6 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 4.987935930095181
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1811003EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1915
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Associated Fuse Rating10 A gG NO relay output circuit IEC 60947-1
    Power Consumption In Va5.0 VA 24 V AC 50/60 Hz
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony Safety Automation
    Safety Levelcan reach PL e/category 4 ISO 13849-1can reach SILCL 3 IEC 62061can reach SIL 3 IEC 61508
    Software Versionv6.2.2
    Total Lifecycle Carbon Footprint70 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2023-02
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo monitor signals from a variety of different sensors/devices for safety-related interruption of safety-related electrical circuits at 100% for 10 years.
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh175.2
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Italy, IT
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Italy, IT
    Width Nominal22.5 mm
    [Ui] Rated Insulation Voltage250 V 2)IEC 60947-1
    [Us] Rated Supply Voltage24 V AC - 15...10 %24 V DC - 20...20 %
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536410060

    Environment Attributes Main

    Ambient Air Temperature For Storage-25-85 °C, -25-85 °C, -25-85 °C, -25-85 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1811003EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP1811003EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint70.31151321535809
    Environmental DisclosureENVPEP1811003EN
    Ip Degree Of ProtectionIP20 terminals)IEC 60529IP40 housing)IEC 60529IP54 mounting area)IEC 60529
    Packaging Without Single Use PlasticNo
    Relative Humidity5-95 % non-condensing
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Typesafety module
    Range Of ProductHarmony Safety Automation

    ETIM

    ETIM 8EC001449
    ETIM 9EC001449

    Output Attributes

    Minimum Output Current10 mA relay output
    Number Of Outputs3 on/off configurable pulsed output
    Minimum Output Voltage15 V relay output

    Input Attributes

    Input Compatibilitynormally closed circuit ISO 14119, XC limit switch ISO 14119, mechanical contact ISO 14119, normally closed circuit ISO 13850, antivalent pair ISO 14119OSSD pair IEC 61496-1-2, 3-wire proximity sensors PNP
    Input Protection Typeinternal, electronic
    Number Of Inputs2 safety input 24 V DC 5
    Synchronisation Time Between Inputs0.5 s, 2 s, 4 s
    Maximum Response Time On Input Open20 ms
