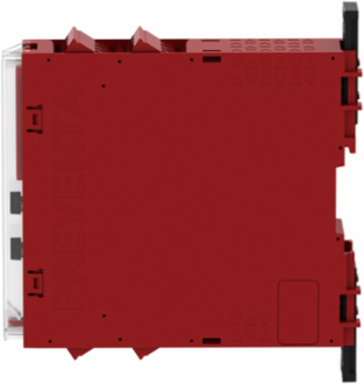

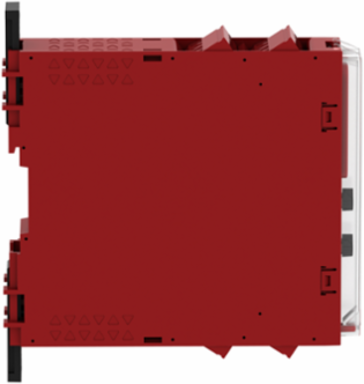

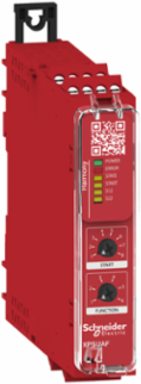

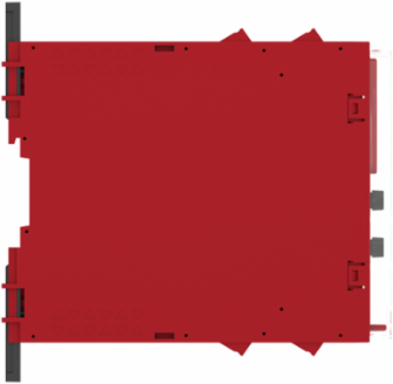

Schneider Electric XPSUAF33AP Harmony Safety Relay Module, Cat 4, 2 NC, 48-240V AC/DC, 200g
Schneider Electric XPSUAF33AP Harmony Safety Relay Module, Cat 4, 2 NC, 48-240V AC/DC, 200g
- MPN: XPSUAF33AP
- PPN: SCH-XPSUAF33AP
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$420.11/ EA
Description
This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch or Safety light curtain. The safety relay is powered with 48-240V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 2 safety inputs, 3 ON/OFF configurable pulsed outputs, 3 NO safety outputs, and 1 solid state diagnostic output with complete status information. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILC L 3 conforming to IEC 62061, and SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.
Specifications
Environment
- Product Certifications
- TÜV || cULus
- Standards
- IEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional safety standard || IEC 61508-7 functional safety standard || ISO 13849-1 functional safety standard || IEC 62061 functional safety standard
- Relative Humidity
- 5-95 % non-condensing
Ip Degree Of ProtectionIP20 terminals)IEC 60529 || IP40 housing)IEC 60529 || IP54 mounting area)IEC 60529
Ambient Air Temperature For Storage-25-85 °C
Complementary
- Number Of Outputs
- 3 on/off configurable pulsed output
- Mounting Support
- 35 mm symmetrical DIN rail
- Minimum Output Current
- 10 mA relay output
- Input/Output Type
- semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV II IEC 60947-1
- Type Of Start
- automatic/manual/monitored
- Input Compatibility
- normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || 3-wire proximity sensors PNP
- [Ie] Rated Operational Current
- 5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact
- [Ui] Rated Insulation Voltage
- 250 V 2)IEC 60947-1
- Maximum Line Resistance
- 500 Ohm
- Input Protection Type
- internal, electronic
- Depth
- 120 mm
- Maximum Response Time On Input Open
- 20 ms
Height100 mm
Minimum Output Voltage15 V relay output
[Ith] Conventional Free Air Thermal Current8 A
Associated Fuse Rating10 A gG NO relay output circuit IEC 60947-1
Net Weight0.200 kg
Number Of Inputs2 safety input 24 V DC 5
Power Consumption In Va6.5 VA 240 V AC 50/60 Hz
Auxiliary Contact Composition3 NO
Power Consumption In W3.0 W 48 V DC
Local Signallingpower ON LED green) || error LED red) || start LED yellow) || safety status LED yellow) || safety input S12 LED yellow) || safety input S22 LED yellow)
Width22.5 mm
Synchronisation Time Between Inputs0.5 s || 2 s || 4 s
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1811003EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1811003EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Specifications
- [Us] Rated Supply Voltage
- 48...240 V AC/DC - 10...10 %
- Product Or Component Type
- safety module
- Connections - Terminals
- removable screw terminal block, 0.2...2.5 mm² solid or flexible || removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor || removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor || removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel || removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
- Safety Reliability Data
- MTTFd > 30 years ISO 13849-1 || Dcavg >= 99 % ISO 13849-1 || PFHd = 1.61E-09 ISO 13849-1 || HFT = 1 IEC 62061 || PFHd = 1.61E-09 IEC 62061 || SFF > 99% IEC 62061 || HFT = 1 IEC 61508-1 || PFHd = 1.61E-09 IEC 61508-1 || SFF > 99% IEC 61508-1 || type = B IEC 61508-1
- Function Of Module
- emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches || monitoring 2 PNP sensors || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of electro-sensitive protection equipment (ESPE) || proximity sensor monitoring
Range Of ProductHarmony Safety Automation
Safety Module NameXPSUAF
Safety Module Applicationmonitoring antivalent contacts || for emergency stop, guard and light curtain monitoring
Electrical Circuit TypeNC pair || PNP pair || antivalent pair || OSSD pair
Safety Levelcan reach PL e/category 4 ISO 13849-1 || can reach SILCL 3 IEC 62061 || can reach SIL 3 IEC 61508
