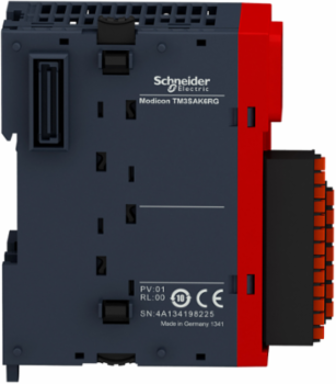

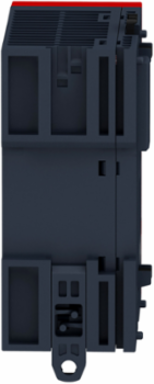

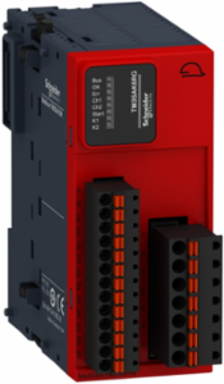

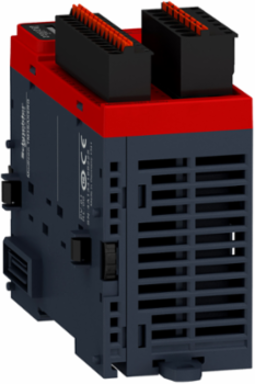

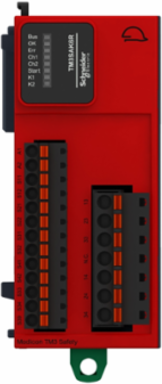

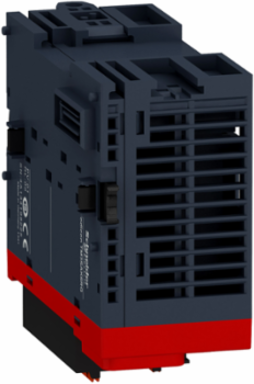

Schneider Electric TM3SAK6RG Modicon TM3 Safety Module, 3 Function, 24V DC, Cat 4 PL e, SIL CL3
- MPN: TM3SAK6RG
- PPN: SCH-TM3SAK6RG
CAD
$554.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This TM3 safety expansion module monitors emergency shutdown pushbuttons, limit switches, light curtains and safety mats/edges. It meets the requirements of PL e/Category 4 conforming to EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 62061. It has a module locking latch, 2 TM3 bus connectors designed to provide continuity of the link between connected modules, a symmetrical rail locking clip, display block for the module channels and diagnostics. It completes your Modicon M221, M241 or M251 PLC configuration with a dedicated safety I/O, without the need to use a complete safety controller. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It is compatible with emergency push buttons, limit switches, safety light curtains and safety mats/edges, the 4 most common safety sensors in the industry. It has spring terminals for fast and reliable wiring of safety circuits.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, Germany, France, United States
Depth73 mm
Complementary Attributes
- Maximum Cable Distance Between Devices
- 30 m
- Maximum Switching Voltage
- 230 V AC-15 50 Hz relay instantaneous opening)24 V DC-13 relay instantaneous opening)
Maximum Response Time On Input Open40 ms
Minimum Output Current10 mA relay output
Important Information Attributes
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to IEC 61000-4-3magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to IEC 61000-4-4, 1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6, radiated emission - test level: 40 dBµV/m class A (24 V) conforming to IEC 55011, radiated emission - test level: 47 dBµV/m class A (24 V) conforming to IEC 55011
- Marking
- CSA, RCM, UL, EFUP 10, CE, TÜV, EAC
- Safety Level
- can reach PL e/category 4 ISO 13849-1 2008can reach PL e/category 4 ISO 13849-2 2012, can reach SILCL 3 IEC 62061 2005, can reach SIL 3 IEC 61508 2010
- Vibration Resistance
- +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6+/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f= 5-150 Hz) conforming to IEC 60068-2-6
- Connections - Terminals
- captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminalscaptive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34, captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34, captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34captive spring terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals, captive spring terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals, captive spring terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Current Consumption
- 100 mA 24 V DC external supply
- Electrical Connection
- spring terminal
- Local Signalling
- 8 LEDs (green/red) for user
- Number Of Safety Circuits
- 3 NO relay instantaneous opening
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Modicon TM3 Safety
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2 GHz...3 GHz IEC 61000-4-3
- Resistance To Fast Transients
- 3 kV power lines (DC) DC)IEC 61000-4-42 kV I/O linesIEC 61000-4-4
- Returnability
- No
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Height Nominal
- 94 mm
- [Ith] Conventional Free Air Thermal Current
- 18 A
- [Ui] Rated Insulation Voltage
- 300 V 2)IEC 60647-5-1
- [Us] Rated Supply Voltage
- 24 V - 15...20 % DC
- Package Weight(Lbs)
- 236.000 g
- Warranty (In Months)
- 18
Function Of Modulemonitoring of electro-sensitive protection equipment (ESPE) PNP/NPNemergency stop monitoring 1-channel wiring, emergency stop monitoring 2-channel wiring, with 2 switches and automatic start, monitoring of a movable guard, multiple emergency stop monitoring 2-channel wiringproximity sensor monitoring PNP/PNP, proximity sensor monitoring PNP/NPN, sensing mat and edges monitoring, monitoring of electro-sensitive protection equipment (ESPE) PNP/PNP
Mounting Supporttop hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715, wall mount using attached fasteners
Safety Reliability DataDC = 95 % ISO 13849-1, PFHd = 5E-9 1/h IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A, PFHd = 30E-9 1/h IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A, MTTFd = 500 years ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A, MTTFd = 85 years ISO 13849-1 60 operations/hour DC-13 24 V DC, <1 A, SFF = 95 % IEC 61508-1, HFT = 1 IEC 61508-1, type = A IEC 61508-1
Certificate AgencyCSA 61010-2-201 (pending), TÜV, CSA Haz Loc Class 1 Division 2 (pending), EAC, RCM, UL 61010-2-201, ANSI Haz Loc Class 1 Division 2 (pending)
Local Data StatusPublishable
Return IndicatorN
Device TypePLC System - PLC Component
TraceabilityYes
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1403010EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1845
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Associated Fuse Rating4 A gG or gL relay output IEC 60947-5-16 A fast blow relay output IEC 60947-5-1
Device Short NameTM3SAK
Electromagnetic Emissionradiated emissions 50 dBµV/m class A 24 V DC)30-230 Hz IEC 61131-3radiated emissions 57 dBµV/m class A 24 V DC)230-1000 Hz IEC 61131-3
Mechanical Robustnessbumps 6 ms 300 shocks 25 gn) IEC 60068-2-27
Power Consumption In W0.2 W 5 V DC3.6 W 24 V DC
Product Or Component Typesafety module
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6
Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-26 kV on contact IEC 61000-4-2
Resistance To Magnetic Fields30 A/m 50/60 Hz IEC 61000-4-8
Safety Module Applicationfor emergency stop, switch, sensing mat/edges or safety light curtain monitoring
Sustainable PackagingNo
Pep CodeENVPEP1403010EN
Width Nominal43.7 mm
[Uc] Control Circuit Voltage24 V DC
[Uimp] Rated Impulse Withstand Voltage4 kV III IEC 60647-5-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C horizontal installation, -10-55 °C horizontal installation-10-55 °C horizontal installation, -10-55 °C horizontal installation
- Relative Humidity
- 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1403010EN
- Ip Degree Of Protection
- IP20 terminals)IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- safety light curtains EN/IEC 61496-1 (type 4)sensing mat/edges EN 1760-1
- Storage Altitude
- 0-3000 m
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI1403010EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1403010EN
General Attributes
- Product Or Component Type
- safety module
Range Of ProductModicon TM3 Safety
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Minimum Output Current
- 10 mA relay output
- Output Type
- relay instantaneous opening, 3 NO, potential free
Output Thermal Current6 A per relay relay output
Output Voltage10 V relay output
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV power lines (DC) differential mode IEC 61000-4-5 DC, 1 kV power lines (DC) common mode IEC 61000-4-5 DC
Input Attributes
- Input Protection Type
- internal, electronic
- Synchronisation Time Between Inputs
- unlimited2 or 4 s depending of wiring configurable by software
Maximum Response Time On Input Open40 ms
