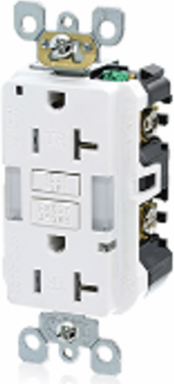

Leviton X7892-W SmartlockPro Slim GFCI Receptacle, 20 Amp, 125 Volt, Tamper-Resistant, White

  • MPN: X7892-W
  • PPN: LEV-X7892-W

CAD

$54.00

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The SmartlockPro Slim GFCI/Guide Light is a great way to add an extra element of safety when it’s dark without losing outlet space in kitchens, bathrooms, laundry rooms and hospitality guest suites. Instead of needing to plug in a nightlight and take up an outlet space, the device offers dual LED guide lights that turn ON and OFF automatically based on light levels and uses only 1W of electricity. The Slim GFCI/Guide Light is tamper-resistant to meet current National Electrical Code requirements for child safety, includes a line-load reversal indicator to aid in diagnosing wiring errors during install, and provides our patented reset lockout feature that will not allow a GFCI to be reset if it is not properly powered and able to provide protection. Designed to be the most compact GFCI on the market, the device’s reduced depth makes it easier to install in an electrical box.

Specifications

Standards and Certifications

NEMAWD-6
UL498Yes
NOM057
Fed Spec WC-596Yes
ANSIC-73
CSA C22.2 No. 42Yes
UL 943File E48380
CSA-C22.2 No. 144.1-06File LR-57811

Material Specifications

Face MaterialThermoplastic
Line ContactsBrass Triple-Wipe
Grounding ScrewPlated Steel
ClampsBrass
Body MaterialThermoplastic
Terminal ScrewsPlated Steel
YokeZinc-Plated Steel
NotesWallplate Sold Separately

Mechanical Specifications

Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Product IDRatings are permanently marked on device
Terminal Accom.14-10 AWG

Product Features

FeatureTamper-Resistant
Voltage125 Volt
Pole2
Trip LevelClass A, 5mA plus or minus 1mA
Face MaterialThermoplastic
GroundingSelf-Grounding
ColorWhite
Fed Spec WC-596Yes
GradeResidential
Country of OriginChina
Amperage20 Amp
NEMA5-20R
Wire3
TerminationBack & Side 20A Feed-Thru
Body MaterialThermoplastic
Strap MaterialGalvanized Steel
Standards and CertificationsUL/CSA
Warranty2-Year Limited
NotesWallplate Sold Separately

Environmental Specifications

FlammabilityRated V-2 per UL94
Operating Temperature-35C-+66C

Electrical Specifications

Dielectric VoltageWithstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
Short Circuit Current Rating10KA

AC Horsepower Ratings

At Rated Voltage1 HP
SmartlockPro Slim GFCI Receptacle, 20 Amp, 125 Volt, Tamper-Resistant, White
