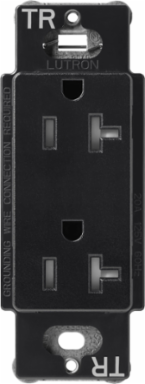

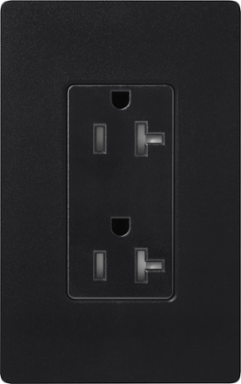

Lutron SCRS-20-TR-MN Tamper-Resistant Duplex Receptacle, 20 Amp, Satin Finish, 125V
- MPN: SCRS-20-TR-MN
- UPC: 027557618915
- PPN: LUT-SCRS-20-TR-MN
- UNSPSC: 39121406
CAD
$49.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Coordinate Lutron lighting controls and switches with Lutron Claro receptacles to complement your clients' decor. Install with screw terminals or push-in connections. Available in 7 Gloss colors and 20 Satin colors, Lutron receptacles become beautiful accessories that let you coordinate and customize the look of each room in any home. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features
- Includes shutter mechanism (shutters are white). Wallplate sold separately.
- Includes (1) Tamper resistant duplex receptacle; Satin finish
- 20 Amp capacity
- 125V only (US style wall box)
- Features screw terminal and push in connections for easy installation
- No visible mounting hardware
- Coordinates with Claro decorator-style dimmers and switches (sold separately)
- Flawlessly blends with trim, wall coverings and furnishings
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
- Includes shutter mechanism (shutters are white)
- Wallplate sold separately
Documentation & Downloads
Specifications
Key Specifications
| Amperage Rating | 20 A |
|---|---|
| Decorative Color | Midnight |
| Family Color | Black |
| Number of Wires | 3,4,5 |
| Type | Tamper-resistant receptacle |
| Wattage | 2500 W |
| Insulation | Plastic |
| Material Quality | Plastic/Metal |
| Surface Finishing | Satin |
| Aesthetic Finish | Satin |
| Finish | Satin |
| Connection | Screw terminal |
|---|---|
| Environmental Conditions | 0 to 90% humidity, non-condensing |
| Number of Poles | 2 |
| Temperature Rating, Maximum | 104 F |
| Voltage Rating | 125 |
| Wire Size | 10 to 12 |
| Material | Plastic/Metal |
| Mounting | Wallbox |
| Temperature Rating | 32 to 104 F |
| Color | Midnight |
| Size | 4.69 x 2.94;119 x 75 in;mm |
