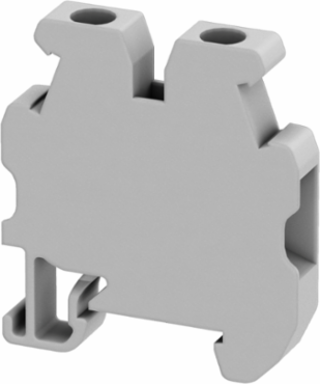

Schneider Electric NSYTRV22MPE Mini Terminal Block 2.5 mm² Protective Earth, 2 Points, Set of 50
- MPN: NSYTRV22MPE
- PPN: SCH-NSYTRV22MPE
CAD
$9.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for high performance in automation and control applications, this mini terminal block from Schneider Electric is essential for secure electrical connections. Designed with a protective earth feature, it accommodates wire sizes up to 2.5 mm² and offers two connection points, ensuring flexibility in various installations. The set includes 50 terminal blocks, making it a practical choice for both small and large projects. With its reliable functionality, this product is ideal for improving connection integrity in terminal block systems.
Documentation & Downloads
Specifications
Additional
- Number of Terminals
- 2
- Terminal Block Type
- Protective Earth
- Tightening Torque
- 0.5 to 0.6 N.m (4.43 to 5.31 lbf.in)
- Dielectric Strength
- 1000 V IEC 60243-1
- Length
- 30 mm (1.18 in)
- Height
- 34 mm (1.34 in)
- Connection Position
- Sideways
- Material
- Polyamide 6/6 insulating case
- Resistivity
- 10000 MΩ.m IEC 60093 / VDE 0303-T30
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250 / VDE 0303-T4
- Halogen Content
- Halogen free plastic parts
- Eu Rohs Directive
- Compliant with Exemptions
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- Country of Origin
- Poland
Number of Measurement Inputs1
Nominal Cross Section2.5 mm²
Cable Cross Section Range0.2 to 4 mm² solid, 0.2 to 2.5 mm² flexible with cable end, 0.14 to 4 mm² flexible without cable end
Ambient Temperature Range-40 to 130 °C (-40 to 266 °F) IEC 60216-1
Width5.2 mm (0.20 in)
Mounting ModeClip-on
Connections - Terminals1 x screw terminal upstream, 1 x screw terminal downstream
Surface Resistance1000 GΩ IEC 60093 / VDE 0303-T30
Flame RetardanceV0 0.8 mm UL 94
Creep Resistance500 CTI (> 400 kB) IEC 60093 / VDE 0303-T30
Product CertificationsATEX, cURus, IECEx, VDE, CSA, EAC
China RoHS ComplianceOut of China RoHS scope, substance declaration provided
Environmental DisclosureENVPEP2309022EN
